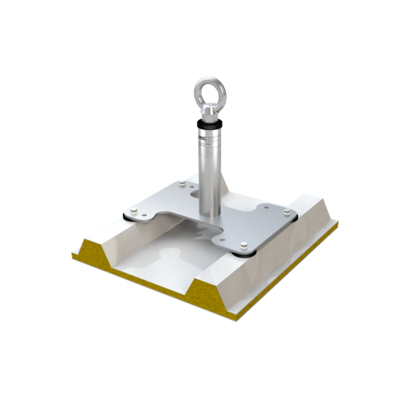

Stainless steel anchor point ABS-Lock X-SW (Ø 16 mm) with base plate (372 x 200 mm) is a fall protection solution developed for usage on top of a sandwich roof an trapezoidal sheeting (negative). To install this anchor, all you need is a minimum sandwich profile (steel) depth of 0.5 mm.
The anchor point is easily installed using the 4 specially prepared toggle bolts included in the package. The pre-drilled holes in the ABS-Lock X-SW base plate are set at different intervals - allowing it to be installed on a variety of profiles with different seam intervals. Distance between the bores: 280 to 333 mm.

Force directions: Lateral
Substructure: Sandwich
Attachment: Toggle bolts
Application: Profile roof, flat roofs

  • Material: Stainless steel
  • Marking: According to standard, CE-marked, Safety Instructions, Supplier symbol, Batch Nr., Standards, Max No of simultaneous users, Serial Nr.
  • Standard: EN 795-A, CEN/TS/16415
  • Note: Add a supporting tube for usage as an end or corner post in a lifeline system
Select a row from the table below, then click the add to cart button
Part Code Max. number of
persons
Length
mm
Weight
19.10LX-SW-150 3 150 2,851
19.10LX-SW-300 3 300 3,126
19.10LX-SW-400 3 400 3,709
