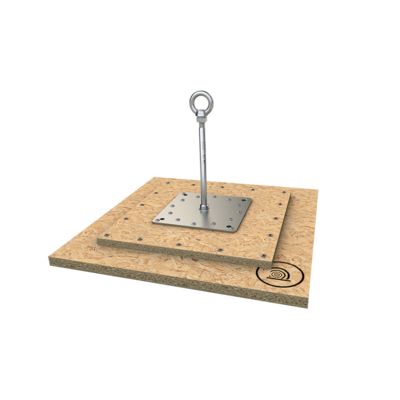

Stainless steel anchor point ABS-Lock X-H-16 (Ø 16 mm) is a fall protection solution for screwing onto OSB or wooden panelling.
It is equipped with a base plate (200 x 200 mm) and screwed straight onto the wooden panelling using 16 stainless steel screws. Standard package includes 16 high-quality screws and installation set.
Add a supporting tube for usage as an end or corner post in a lifeline system.

Force directions: Lateral
Substructure: Wood
Attachment: Screwed
Application: Flat roofs

  • Material: Stainless steel
  • Marking: According to standard, CE-marked, Safety Instructions, Supplier symbol, Batch Nr., Standards, Max No of users, Serial Nr.
  • Standard: EN 795, CEN/TS/16415
Select a row from the table below, then click the add to cart button
Part Code Max. number of
persons
Length
mm
19.10LX-H-150-16 3 150
19.10LX-H-300-16 3 300
19.10LX-H-400-16 3 400
19.10LX-H-500-16 3 500
19.10LX-H-600-16 3 600
