Steel Wire Rope Slings
General
General: Steel wire rope slings are in most cases easier and less expensive than chain slings. Galvanised wire rope provides good protection against corrosion, in extreme environments stainless wire ropes can be used. For extremely heavy lifting wire rope slings are usually the best option.
Material/Design: For manufacturing of wire rope slings the rope grade shall be either 1770 or 1960 N/mm². In multi-leg slings the rope dimension and grade shall be the same for each leg. The working load limit of the lower terminal fitting(s) shall be at least equal to that of the leg(s) to which it is/they are fitted. Where a terminal fitting is used, the eye termination shall always be fitted with a thimble. For 3- and 4-leg slings a master link with intermediate link should bee used.
Safety factor: 5:1.
Ferrule/Splicing
The minimum length of plain rope between the inside ends of ferrules terminating a sling leg shall be 20 times the nominal rope diameter. The minimum length of plain rope between the tails of splices shall be at least 15 times the nominal rope diameter. For endless sling the length between the ferrules shall not be less than three times the length of the ferrule after pressing.
Soft Eye

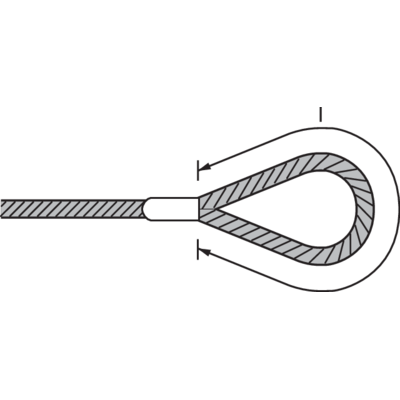

The peripheral length (l) of a soft eye shall be at least four rope lay lengths. CERTEX Svenska apply as standard that the length (h) of the soft eye shall be at least 15 times the rope diameter.
Multi Leg Slings
The working load limit of any master link shall be at least equal to that of the sling. The working load limit of any intermediate link fitted to a three-leg or four-leg sling shall be at least equal to 1,6 times the WLL of one of the legs suspended from it.
WARNING! When using the steel wire rope sling for projected lifting with an angel (ß) less then 45o, the working load limit will increase. This shall be informed by the time of order.
Length
Length
The length (L) shall be that measured between the bearing points of the sling or the circumference length of an endless sling.
Single leg and endless slings
The measured length of a ferrule-secured sling shall not differ from the nominal length by more than two rope diameters or 1 % of the nominal length, whichever is the greater.
The measured length of a spliced sling shall not differ from the nominal length by more than four rope diameters or 2 % of the nominal length, whichever is the greater.
Where single leg slings are intended to be used as matched sets, the difference in length of matched sets of ferrule-secured eye slings shall not exceed the rope diameter, or 0,5 % of the nominal length, whichever is the greater.
Multi leg slings
The measured individual leg length of a ferrule-secured sling shall not differ from the nominal length of the sling by more than two rope diameters or 1 % of the nominal length, whichever is the greater.
The difference in length between the individual legs of any multi-leg sling under no load shall not exceed 1,5 times the rope diameter or 0,5 % of the nominal length, whichever is the greater.
"Laid" (cable-laid) endless slings
The measured length for cable-laid grommets with diameter <61 mm the tolerance shall be ±1d or 1% of the nominal length, whichever is the greater. For cable-laid grommets with diameter >65mm the tolerance shall be ±0,5d or 0,5% of the nominal length, whichever is the greater.
Marking
Each sling shall be provided with a marking plate or be marked in the ferrules (single leg and endless slings) with the manufacturer's identifying mark, working load limit (WLL), length, manufacturing date and CE marking.
Wire Rope Fittings

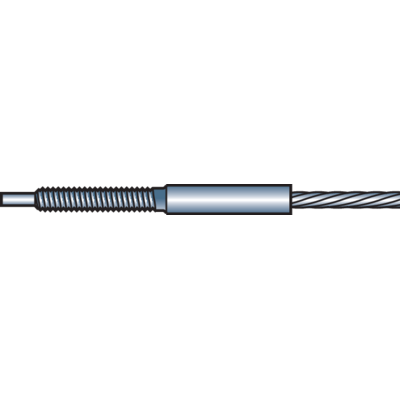

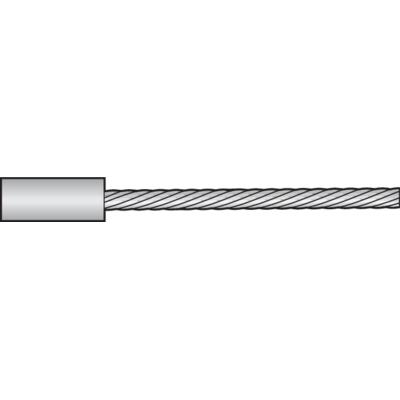

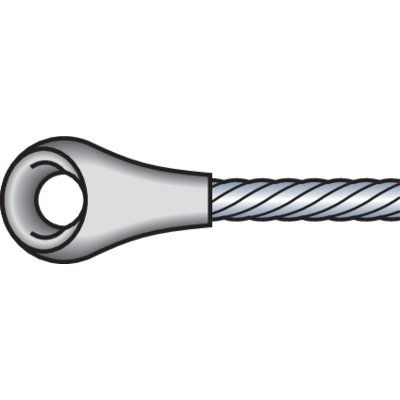

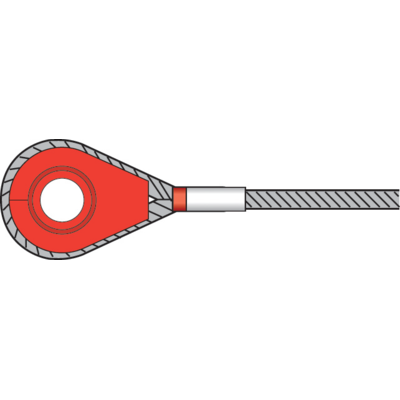

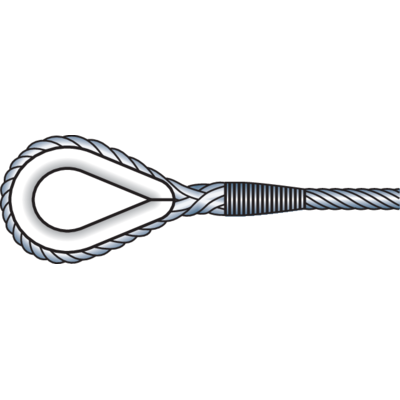

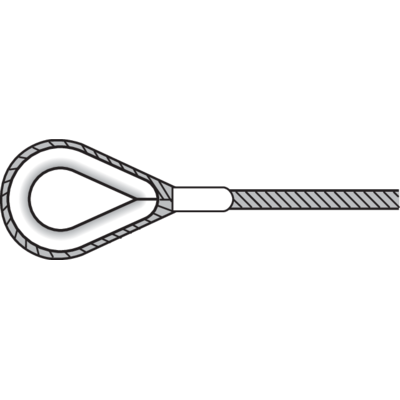

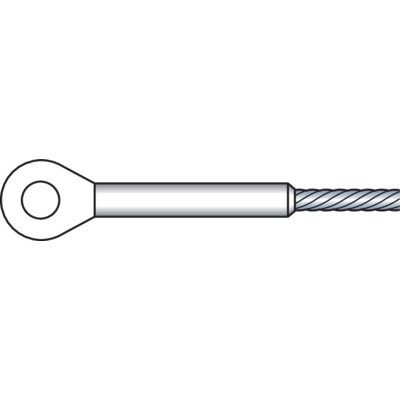

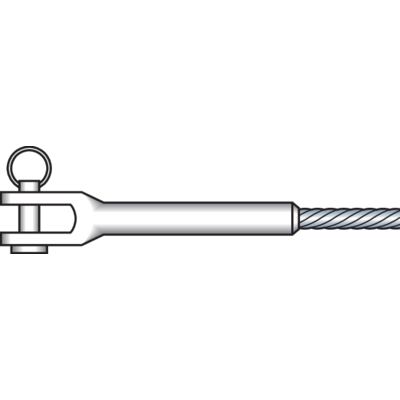

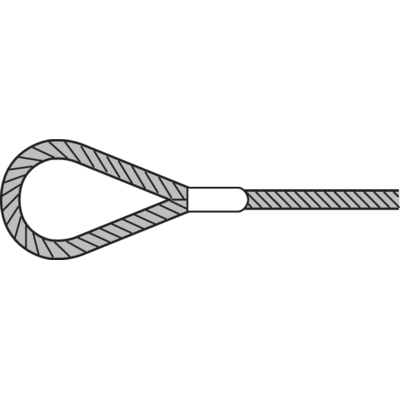

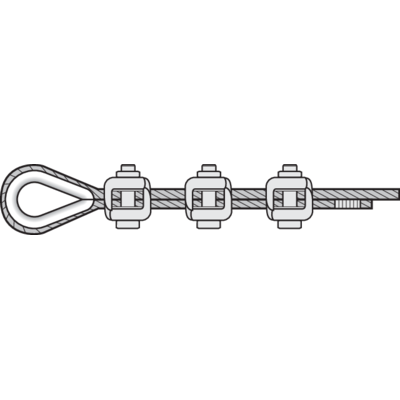

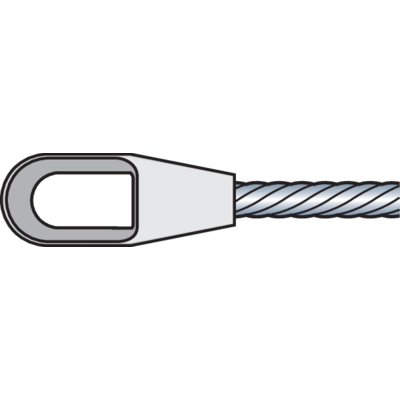

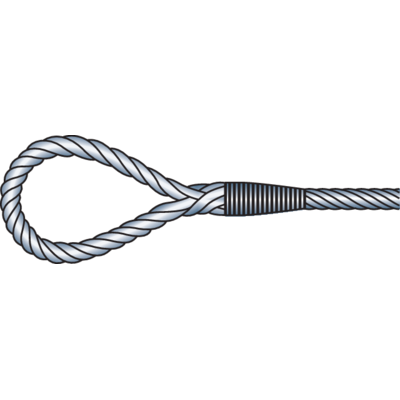

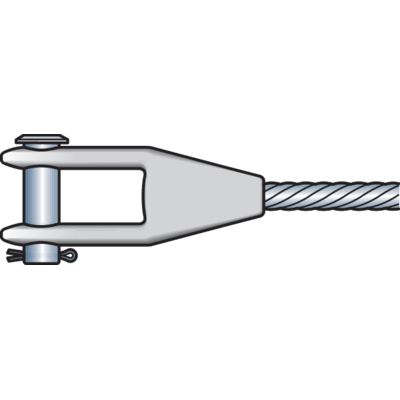

The most commonly used rope fittings with indication of remaining percentage of steel wire min breaking force.
Dimensioning for Steel Wire Rope Slings
Working load limit (WLL) for steel wire rope sling
Single leg sling
WLL (ton) = (Fmin x KT) / (Zp x g)
Endless sling (choke)
WLL (ton) = (Fmin x KT x 2 x 0,8) / (Zp x g)
Multi-leg sling
WLL (ton) = (Fmin x KT x KL) / (Zp x g)
Fmin = the minimum breaking force of the rope, in kN.
KT = factor for the efficiency of the termination, for ferrule 0,9 and for spliced 0,8.
KL = the leg factor relating to the number of legs and the angle to the vertical, see WLL-table.
Zp = the coefficient of utilization (working coefficient), with the value 5.
g = 9,81
Bending diameters effect on the working load limit (WLL)
CERTEX recommend that consideration will be taken to that the slings capacity will be lower when the bending diameter decreasing. If, for example the rope bends around a bearing point witch have the same diameter as the rope itself the capacity will decrease to the half, see figure.
Working Load Limit (WLL)
Fibre core
General: Working load limits for slings with fibre core in grade 1770 or 1960 N/mm2 ferrule-secured, P- or PK-ferrules.
Fibre core - 1770 N/mm²
|
Rope
|
WLL in tons for steel wire rope with fibre core 1770 N/mm²
|
|
|
|
|
|
|
|
|
|
||||||||||
|
Ø
|
Single
|
|
|
2-leg & basket*
|
|
3- 4-leg*
|
|
Endless
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
mm |
Straight |
Choked |
Basket |
0°-45°
|
45°-60°
|
0°-45°
|
45°-60°
|
Straight |
Choked |
Basket |
||||||||||
|
3
|
0,09
|
0,07
|
0,18
|
0,12
|
0,09
|
0,19
|
0,13
|
0,18
|
0,14
|
0,36
|
||||||||||
|
4
|
0,15
|
0,12
|
0,3
|
0,21
|
0,15
|
0,31
|
0,22
|
0,3
|
0,24
|
0,6
|
||||||||||
|
5
|
0,25
|
0,2
|
0,5
|
0,35
|
0,25
|
0,5
|
0,35
|
0,5
|
0,4
|
1
|
||||||||||
|
6
|
0,35
|
0,28
|
0,7
|
0,5
|
0,35
|
0,7
|
0,5
|
0,7
|
0,55
|
1,4
|
||||||||||
|
7
|
0,5
|
0,4
|
1
|
0,7
|
0,5
|
1
|
0,75
|
1
|
0,8
|
2
|
||||||||||
|
8
|
0,7
|
0,55
|
1,4
|
0,95
|
0,7
|
1,5
|
1,05
|
1,4
|
1,1
|
2,8
|
||||||||||
|
9
|
0,85
|
0,7
|
1,7
|
1,2
|
0,85
|
1,8
|
1,3
|
1,7
|
1,4
|
3,4
|
||||||||||
|
10
|
1,05
|
0,85
|
2,1
|
1,5
|
1,05
|
2,25
|
1,6
|
2,1
|
1,7
|
4,2
|
||||||||||
|
11
|
1,3
|
1
|
2,6
|
1,8
|
1,3
|
2,7
|
1,95
|
2,6
|
2,12
|
5,2
|
||||||||||
|
12
|
1,55
|
1,2
|
3,1
|
2,12
|
1,55
|
3,3
|
2,3
|
3,1
|
2,5
|
6,2
|
||||||||||
|
13
|
1,8
|
1,4
|
3,6
|
2,5
|
1,8
|
3,85
|
2,7
|
3,6
|
2,9
|
7,2
|
||||||||||
|
14
|
2,12
|
1,7 |
4,2
|
3
|
2,12
|
4,35
|
3,15
|
4,24
|
3,3
|
8,48
|
||||||||||
|
16
|
2,7
|
2,2
|
5,4
|
3,85
|
2,7
|
5,65
|
4,2
|
5,4
|
4,35
|
10,8
|
||||||||||
|
18
|
3,4
|
2,7
|
6,8
|
4,8
|
3,4
|
7,2
|
5,2
|
6,8
|
5,65
|
13,6
|
||||||||||
|
20
|
4,35
|
3,4
|
8,7
|
6
|
4,35
|
9
|
6,5
|
8,7
|
6,9
|
17,4
|
||||||||||
|
22
|
5,2
|
4,1
|
10,4
|
7,2
|
5,2
|
11
|
7,8
|
10,4
|
8,4
|
20,8
|
||||||||||
|
24
|
6,3
|
5
|
12,6
|
8,8
|
6,3
|
13,5
|
9,4
|
12,6
|
10
|
25,2
|
||||||||||
|
26
|
7,2
|
5,8
|
14,4
|
10
|
7,2
|
15
|
11
|
14,4
|
11,8
|
28,8
|
||||||||||
|
28
|
8,4
|
6,7
|
16,8
|
11,8
|
8,4
|
18
|
12,5
|
16,8
|
13,5
|
33,6
|
||||||||||
|
32
|
11
|
8,8
|
22
|
15
|
11
|
23,5
|
16,5
|
22
|
18
|
44
|
||||||||||
|
36
|
14
|
11,2
|
28
|
19
|
14
|
29
|
21
|
28
|
22,5
|
56
|
||||||||||
|
40
|
17
|
13,6
|
34
|
23,5
|
17
|
36
|
26
|
34
|
28
|
68
|
||||||||||
|
44
|
21
|
16,8
|
42
|
29
|
21
|
44
|
31,5
|
42
|
33,5
|
84
|
||||||||||
|
48
|
25
|
20
|
50
|
35
|
25
|
52
|
37
|
50
|
40
|
100
|
||||||||||
|
52
|
29
|
23,2
|
58
|
40
|
29
|
62
|
44
|
58
|
47
|
116
|
||||||||||
|
56
|
33,5
|
26,8
|
67
|
47
|
33,5
|
71
|
50
|
67
|
54
|
134
|
||||||||||
|
60
|
39
|
31,2 |
78
|
54
|
39
|
81
|
58
|
78
|
63
|
156
|
||||||||||
|
Factor (KL)
|
1
|
0,8
|
2
|
1,4
|
1
|
2,1
|
1,5
|
2
|
1,6
|
4
|
||||||||||
|
* When using a multi-leg sling in a choker hitch - reduce the value with 20%.
|
|
|
|
|
|
|
|
|
|
|
||||||||||
Fibre core - 1960 N/mm²
|
Rope
|
WLL in tons for steel wire rope with fibre core 1960 N/mm²
|
|
|
|
|
|
|
|
|
|
||||||||||
|
Ø
|
Single
|
|
|
2-leg & basket*
|
|
3- 4-leg*
|
|
Endless
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
mm |
Straight |
Choked |
Basket |
0°-45°
|
45°-60°
|
0°-45°
|
45°-60°
|
Straight |
Choked |
Basket |
||||||||||
|
3
|
0,1
|
0,08
|
0,2
|
0,14
|
0,1
|
0,21
|
0,15
|
0,2
|
0,18
|
0,4
|
||||||||||
|
4
|
0,18
|
0,14
|
0,38
|
0,25
|
0,18
|
0,38
|
0,27
|
0,36
|
0,3
|
0,72
|
||||||||||
|
5
|
0,28
|
0,22
|
0,56
|
0,38
|
0,28
|
0,57
|
0,4
|
0,56
|
0,43
|
1,12
|
||||||||||
|
6
|
0,4
|
0,32
|
0,8
|
0,56
|
0,4
|
0,84
|
0,6
|
0,8
|
0,64
|
1,6
|
||||||||||
|
7
|
0,55
|
0,4
|
1,1
|
0,75
|
0,55
|
1,1
|
0,83
|
1,1
|
0,9
|
2,2
|
||||||||||
|
8
|
0,75
|
0,6
|
1,5
|
1,1
|
0,75
|
1,6
|
1,1
|
1,4
|
1,2
|
3
|
||||||||||
|
9
|
0,9
|
0,8
|
1,8
|
1,26
|
0,9
|
2
|
1,4
|
1,8
|
1,5
|
3,6
|
||||||||||
|
10
|
1,2
|
0,95
|
2,4
|
1,7
|
1,2
|
2,5
|
1,8
|
2,4
|
1,9
|
4,8
|
||||||||||
|
11
|
1,4
|
1,1
|
2,8
|
2
|
1,4
|
3
|
2,2
|
2,8
|
2,3
|
5,6
|
||||||||||
|
12
|
1,7
|
1,3
|
3,4
|
2,4
|
1,7
|
3,6
|
2,6
|
3,4
|
2,7
|
6,8
|
||||||||||
|
13
|
2
|
1,6
|
4
|
2,8
|
2
|
4,2
|
3
|
4
|
3,2
|
8
|
||||||||||
|
14
|
2,3
|
1,8 |
4,6
|
3,2
|
2,3
|
4,8
|
3,5
|
4,6
|
3,7
|
9,2
|
||||||||||
|
16
|
3
|
2,4
|
6
|
4,2
|
3
|
6,3
|
4,5
|
6
|
4,8
|
12
|
||||||||||
|
18
|
3,8
|
3,1
|
7,6
|
5,3
|
3,8
|
8
|
5,7
|
7,6
|
6,1
|
15,2
|
||||||||||
|
20
|
4,7
|
3,8
|
9,4
|
6,6
|
4,7
|
10
|
7,1
|
9,4
|
7,6
|
18,8
|
||||||||||
|
22
|
5,7
|
4,6
|
11,4
|
8
|
5,7
|
12
|
8,5
|
11,4
|
9,2
|
23
|
||||||||||
|
24
|
6,8
|
5,4
|
13,6
|
9,5
|
6,8
|
14,3
|
10,2
|
13,6
|
11
|
27
|
||||||||||
|
26
|
8
|
6,4
|
16
|
11,2
|
8
|
16,8
|
12
|
16
|
12,8
|
32
|
||||||||||
|
28
|
9,3
|
7,4
|
18,6
|
13
|
9,3
|
19,5
|
14
|
18,6
|
15
|
37
|
||||||||||
|
32
|
12
|
9,7
|
24
|
16,8
|
12
|
25,5
|
18
|
24
|
19,5
|
48
|
||||||||||
|
36
|
15
|
12
|
30
|
21
|
15
|
32
|
23
|
30
|
25
|
60
|
||||||||||
|
40
|
19
|
15
|
38
|
27
|
19
|
40
|
28,5
|
38
|
30
|
76
|
||||||||||
|
44
|
23
|
18
|
46
|
32
|
23
|
48
|
34
|
46
|
37
|
92
|
||||||||||
|
48
|
27
|
22
|
54
|
38
|
27
|
57
|
41
|
54
|
44
|
108
|
||||||||||
|
52
|
32
|
26
|
64
|
45
|
32
|
67
|
48
|
64
|
51
|
128
|
||||||||||
|
56
|
37
|
30
|
74
|
52
|
37
|
78
|
56
|
74
|
60
|
148
|
||||||||||
|
60
|
43
|
34 |
86
|
60
|
43
|
90
|
64
|
86
|
68
|
172
|
||||||||||
|
68
|
55
|
44
|
110
|
77
|
55
|
115
|
82
|
110
|
88
|
220
|
||||||||||
|
71
|
60
|
48
|
120
|
84
|
60
|
126
|
90
|
120
|
96
|
240
|
||||||||||
|
Factor (KL)
|
1
|
0,8
|
2
|
1,4
|
1
|
2,1
|
1,5
|
2
|
1,6
|
4
|
||||||||||
|
* When using a multi-leg sling in a choker hitch - reduce the value with 20%.
|
|
|
|
|
|
|
|
|
|
|
||||||||||
Steel core
General: Working load limits for slings with steel core in grade 1770 N/mm2 and 1960 N/mm2 ferrule-secured, P- or PK-ferrules.
Steel core - 1770 N/mm²
|
Rope
|
WLL in tons for wire rope with steel core 1770 N/mm²
|
|
|
|
|
|
|
|
|
|
||||||||||
|
Ø
|
Single
|
|
|
2-leg & Basket*
|
|
3-4-leg*
|
|
Endless
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
mm |
Straight |
Choked |
Basket |
0°-45°
|
45°-60°
|
0°-45°
|
45°-60°
|
Straight |
Choked |
Basket |
||||||||||
|
3
|
0,1
|
0,08
|
0,2
|
0,14
|
0,1
|
0,21
|
0,15
|
0,2
|
0,16
|
0,4
|
||||||||||
|
4
|
0,17
|
0,14
|
0,34
|
0,24
|
0,17
|
0,36
|
0,25
|
0,34
|
0,27
|
0,68
|
||||||||||
|
5
|
0,27
|
0,22
|
0,54
|
0,38
|
0,27
|
0,56
|
0,41
|
0,54
|
0,43
|
1,08
|
||||||||||
|
6
|
0,38
|
0,3
|
0,76
|
0,53
|
0,38
|
0,8
|
0,57
|
0,76
|
0,61
|
1,52
|
||||||||||
|
7
|
0,53
|
0,42
|
1,06
|
0,74
|
0,53
|
1,1
|
0,8
|
1,06
|
0,85
|
2,12
|
||||||||||
|
8
|
0,75
|
0,6
|
1,5
|
1,05
|
0,75
|
1,55
|
1,1
|
1,5
|
1,2
|
3
|
||||||||||
|
9
|
0,95
|
0,75
|
1,9
|
1,3
|
0,95
|
2
|
1,4
|
1,9
|
1,5
|
3,8
|
||||||||||
|
10
|
1,15
|
0,9
|
2,3
|
1,6
|
1,15
|
2,4
|
1,7
|
2,3
|
1,85
|
4,6
|
||||||||||
|
11
|
1,4
|
1,1
|
2,8
|
2
|
1,4
|
3
|
2,12
|
2,8
|
2,25
|
5,6
|
||||||||||
|
12
|
1,7
|
1,35
|
3,4
|
2,3
|
1,7
|
3,55
|
2,5
|
3,4
|
2,7
|
6,8
|
||||||||||
|
13
|
2
|
1,6
|
4
|
2,8
|
2
|
4,15
|
3
|
4
|
3,15
|
8
|
||||||||||
|
14
|
2,25
|
1,8 |
4,5
|
3,15
|
2,25
|
4,8
|
3,4
|
4,5
|
3,7
|
9
|
||||||||||
|
16
|
3
|
2,4
|
6
|
4,2
|
3
|
6,3
|
4,5
|
6
|
4,8
|
12
|
||||||||||
|
18
|
3,7
|
3
|
7,4
|
5,2
|
3,7
|
7,8
|
5,65
|
7,4
|
6
|
14,8
|
||||||||||
|
20
|
4,6
|
3,7
|
9,2
|
6,5
|
4,6
|
9,8
|
6,9
|
9,2
|
7,35
|
18,4
|
||||||||||
|
22
|
5,65
|
4,5
|
11,3
|
7,8
|
5,65
|
11,8
|
8,4
|
11,3
|
9
|
22,6
|
||||||||||
|
24
|
6,7
|
5,4
|
13,4
|
9,4
|
6,7
|
14
|
10
|
13,4
|
10,6
|
26,8
|
||||||||||
|
26
|
7,8
|
6,2
|
15,6
|
11
|
7,8
|
16,5
|
11,5
|
15,6
|
12,5
|
31,2
|
||||||||||
|
28
|
9
|
7,2
|
18
|
12,5
|
9
|
19
|
13,5
|
18
|
14,5
|
36
|
||||||||||
|
32
|
11,8
|
9,4
|
23,6
|
16,5
|
11,8
|
25
|
17,5
|
23,6
|
19
|
47,2
|
||||||||||
|
36
|
15
|
12
|
30
|
21
|
15
|
31,5
|
22,5
|
30
|
23,5
|
60
|
||||||||||
|
40
|
18,5
|
14,8
|
37
|
26
|
18,5
|
39
|
28
|
37
|
30
|
74
|
||||||||||
|
44
|
22,5
|
18
|
45
|
31,5
|
22,5
|
47
|
33,5
|
45
|
36
|
90
|
||||||||||
|
48
|
26
|
20,8
|
52
|
37
|
26
|
55
|
40
|
52
|
42
|
104
|
||||||||||
|
52
|
31,5
|
25,2
|
63
|
44
|
31,5
|
66
|
47
|
63
|
50
|
126
|
||||||||||
|
56
|
36
|
28,8
|
72
|
50
|
36
|
76
|
54
|
72
|
58
|
144
|
||||||||||
|
60
|
42
|
33,6 |
84
|
58
|
42
|
88
|
63
|
84
|
67
|
168
|
||||||||||
|
Factor (KL)
|
1
|
0,8
|
2
|
1,4
|
1
|
2,1
|
1,5
|
2
|
1,6
|
4
|
||||||||||
|
* When using a multi-leg sling in a choker hitch - reduce the value with 20%.
|
|
|
|
|
|
|
|
|
|
|
||||||||||
Steel core - 1960 N/mm²
|
Rope
|
WLL in tons for wire rope with steel core 1960 N/mm²
|
|
|
|
|
|
|
|
|
|
||||||||||
|
Ø
|
Single
|
|
|
2-leg & Basket*
|
|
3-4-leg*
|
|
Endless
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
||||||||||
|
mm |
Straight |
Choked |
Basket |
0°-45°
|
45°-60°
|
0°-45°
|
45°-60°
|
Straight |
Choked |
Basket |
||||||||||
|
3
|
0,11
|
0,09
|
0,22
|
0,15
|
0,11
|
0,23
|
0,16
|
0,22
|
0,17
|
0,44
|
||||||||||
|
4
|
0,19
|
0,15
|
0,38
|
0,27
|
0,19
|
0,4
|
0,28
|
0,38
|
0,3
|
0,76
|
||||||||||
|
5
|
0,3
|
0,24
|
0,6
|
0,42
|
0,3
|
0,63
|
0,45
|
0,6
|
0,5
|
1,2
|
||||||||||
|
6
|
0,43
|
0,34
|
0,86
|
0,6
|
0,43
|
0,9
|
0,65
|
0,86
|
0,7
|
1,7
|
||||||||||
|
7
|
0,6
|
0,5
|
1,2
|
0,8
|
0,6
|
1,2
|
0,88
|
1,2
|
0,9
|
2,3
|
||||||||||
|
8
|
0,8
|
0,65
|
1,6
|
1,15
|
0,8
|
1,7
|
1,2
|
1,6
|
1,3
|
3,2
|
||||||||||
|
9
|
1,05
|
0,8
|
2,1
|
1,45
|
1,05
|
2,2
|
1,8
|
2,1
|
1,7
|
4,2
|
||||||||||
|
10
|
1,3
|
1
|
2,6
|
1,8
|
1,3
|
2,7
|
1,9
|
2,6
|
2
|
5,2
|
||||||||||
|
11
|
1,5
|
1,2
|
3
|
2,2
|
1,5
|
3,3
|
2,3
|
3
|
2,5
|
6
|
||||||||||
|
12
|
1,8
|
1,4
|
3,6
|
2,6
|
1,8
|
3,9
|
2,8
|
3,6
|
3
|
7,2
|
||||||||||
|
13
|
2,2
|
1,8
|
4,4
|
3
|
2,2
|
4,5
|
3,2
|
4,4
|
3,5
|
8,8
|
||||||||||
|
14
|
2,5
|
2 |
5
|
3,5
|
2,5
|
5,3
|
3,8
|
5
|
4
|
10
|
||||||||||
|
16
|
3,3
|
2,6
|
6,6
|
4,6
|
3,3
|
6,9
|
4,9
|
6,6
|
5,2
|
13,2
|
||||||||||
|
18
|
4,1
|
3,3
|
8,2
|
5,8
|
4,1
|
8,7
|
6,2
|
8,2
|
6,6
|
16,4
|
||||||||||
|
20
|
5,1
|
4,1
|
10,2
|
7,2
|
5,1
|
10,7
|
7,7
|
10,2
|
8,2
|
20,4
|
||||||||||
|
22
|
6,2
|
5
|
12,4
|
8,7
|
6,2
|
13
|
9,3
|
12,4
|
10
|
24,8
|
||||||||||
|
24
|
7,4
|
5,9
|
14,8
|
10,3
|
7,4
|
15,5
|
11,1
|
14,8
|
11,8
|
29,6
|
||||||||||
|
26
|
8,7
|
7
|
17,4
|
12,1
|
8,7
|
18,2
|
13
|
17,4
|
13,8
|
34,8
|
||||||||||
|
28
|
10
|
8
|
20
|
14
|
10
|
21
|
15
|
20
|
16
|
40
|
||||||||||
|
32
|
13
|
10,4
|
26
|
18,4
|
13
|
27,5
|
19,7
|
26
|
21
|
52
|
||||||||||
|
36
|
16,6
|
13,3
|
33
|
23
|
16,6
|
35
|
25
|
33
|
26,5
|
66
|
||||||||||
|
40
|
20,5
|
16,4
|
41
|
29
|
20,5
|
43
|
31
|
41
|
33
|
82
|
||||||||||
|
44
|
25
|
20
|
50
|
35
|
25
|
52
|
37
|
50
|
40
|
100
|
||||||||||
|
48
|
29,5
|
23,6
|
59
|
41
|
29,5
|
62
|
44
|
59
|
47
|
118
|
||||||||||
|
52
|
35
|
28
|
70
|
48
|
35
|
73
|
52
|
70
|
55
|
140
|
||||||||||
|
56
|
40
|
32
|
80
|
56
|
40
|
84
|
60
|
80
|
64
|
160
|
||||||||||
|
60
|
46
|
37 |
92
|
65
|
46
|
97
|
69
|
92
|
74
|
184
|
||||||||||
|
Factor (KL)
|
1
|
0,8
|
2
|
1,4
|
1
|
2,1
|
1,5
|
2
|
1,6
|
4
|
||||||||||
|
* When using a multi-leg sling in a choker hitch - reduce the value with 20%.
|
|
|
|
|
|
|
|
|
|
|
||||||||||
Temperature Affect on Working Load Limit (WLL)
Temperature affect on working load limit (WLL)
Account should be taken of the maximum temperature that can be reached by the wire rope sling in service. This is difficult in practice but underestimation of the temperature should be avoided.
The table below summarises the necessary de-rated working load limits of a sling due to temperature, taking into account the type of rope termination, the ferrule material and the core of the rope.
When wire rope slings are to be used in temperatures below -40 °C CERTEX should be consulted.
The use of wire rope slings within the permissible temperature ranges given in the table does not require any
permanent reduction in working load limit when the rope is returned to ambient temperature.
|
Termination |
Ferrule-
|
Rope
|
De-rated working load limit expressed as % of WLL of the sling
|
|
|
|
|
|
|||||
|
type
|
material
|
core
|
Temperature (t) ºC
|
|
|
|
|
|
|||||
|
|
|
|
-40 - 100
|
101 - 150
|
151 - 200
|
201 - 300
|
301 - 400
|
400<t
|
|||||
|
Ferrule
|
Aluminium
|
Fibre
|
100
|
Do not use
|
Do not use
|
Do not use
|
Do not use
|
Do not use
|
|||||
|
Ferrule
|
Aluminium
|
Steel
|
100
|
100
|
Do not use
|
Do not use
|
Do not use
|
Do not use
|
|||||
|
Ferrule
|
Steel
|
Fibre
|
100
|
Do not use
|
Do not use
|
Do not use
|
Do not use
|
Do not use
|
|||||
|
Ferrule
|
Steel
|
Steel
|
100
|
100
|
90
|
75
|
65
|
Do not use
|
|||||
|
Splice
|
-
|
Fibre
|
100
|
Do not use
|
Do not use
|
Do not use
|
Do not use
|
Do not use
|
|||||
|
Splice
|
-
|
Steel
|
100
|
100
|
90
|
75
|
65
|
Do not use
|
|||||
|
Socket
|
zinc/alloy
|
Fibre
|
-40 - 80ºC 100%
|
|
|
|
|
|
|||||
|
Socket
|
zinc/alloy
|
Steel
|
-40 - 120ºC 100%
|
|
|
|
|
|
|||||
|
Socket
|
2-component
|
Fibre
|
-50 - 80ºC 100%
|
|
|
|
|
|
|||||
|
Socket
|
2-component
|
Steel
|
-50 - 80ºC 100%
|
|
|
|
|
|
|||||
Acidic conditions
Wire rope slings should not be used either immersed in acidic solutions or exposed to acid fumes.
Chemical affect
CERTEX should be consulted in case the slings are to be exposed to chemicals combined with high temperature.
