Kratos Safety

General: Anchor point with large opening, designed to be fixed on walls, ceilings, rooftops.

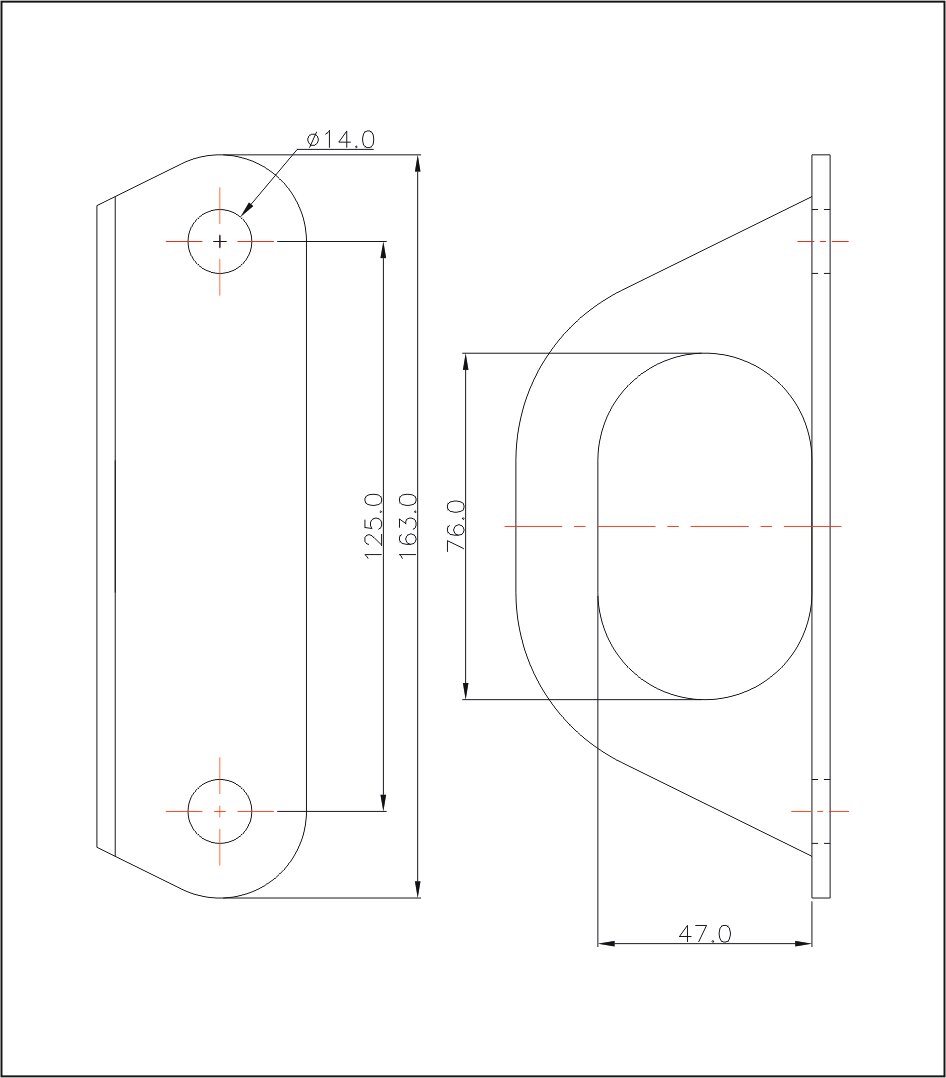

Ideal for use with an anchorage hook with large gate opening, such as telescopic pole anchorage hook (FA 60 016 02, FA 60 016 06), FA 50 207 55, FA 50 208 60. Two holes for fixing. Positioning through 2 fastenings Ø14 mm (chemical or mechanical pins, Stainless steel screw and nut system) in steel structure, or concrete. Can be installed in any way, can be used in the 3 directions (horizontally, vertically, diagonally).
Minimum breaking strength > 23kN.

Max number of persons: 1
Anchoring: Type A





  • Material: Steel, Stainless steel, Aluminium
  • Marking: According to standard
  • Temperature range: -30ºC to +50ºC
  • Standard: EN 795-A
Product Picture 2
Select a row from the table below, then click the add to quote button
Part Code Opening (mm) Weight
kg
CAD
19.10F6002814 47 x 76 0.31

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
