Short Bow Socket SBS

Ropeblock

General: The "ultimate" socket for dynamic loads. Towing lines, anchor lines and chain-rope connections used by major offhshore contractors. Quenched and tempered cast steel with extremely high mechanical values for unmatched weight to MBL ratio. All spelter sockets have a 100% efficiency on wire rope MBL.
The standard finish of our sockets is blue. Hot dipped galvanized is also available.

Standard: EN 10204-2.1 declaration of conformity / EN 10204-3.1 material certificate.
Option: Hot dip galvanized.

  • Material: Quenched and tempered cast steel.

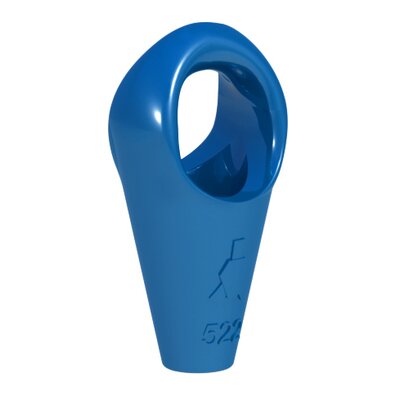

Product Picture 1
Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to cart button

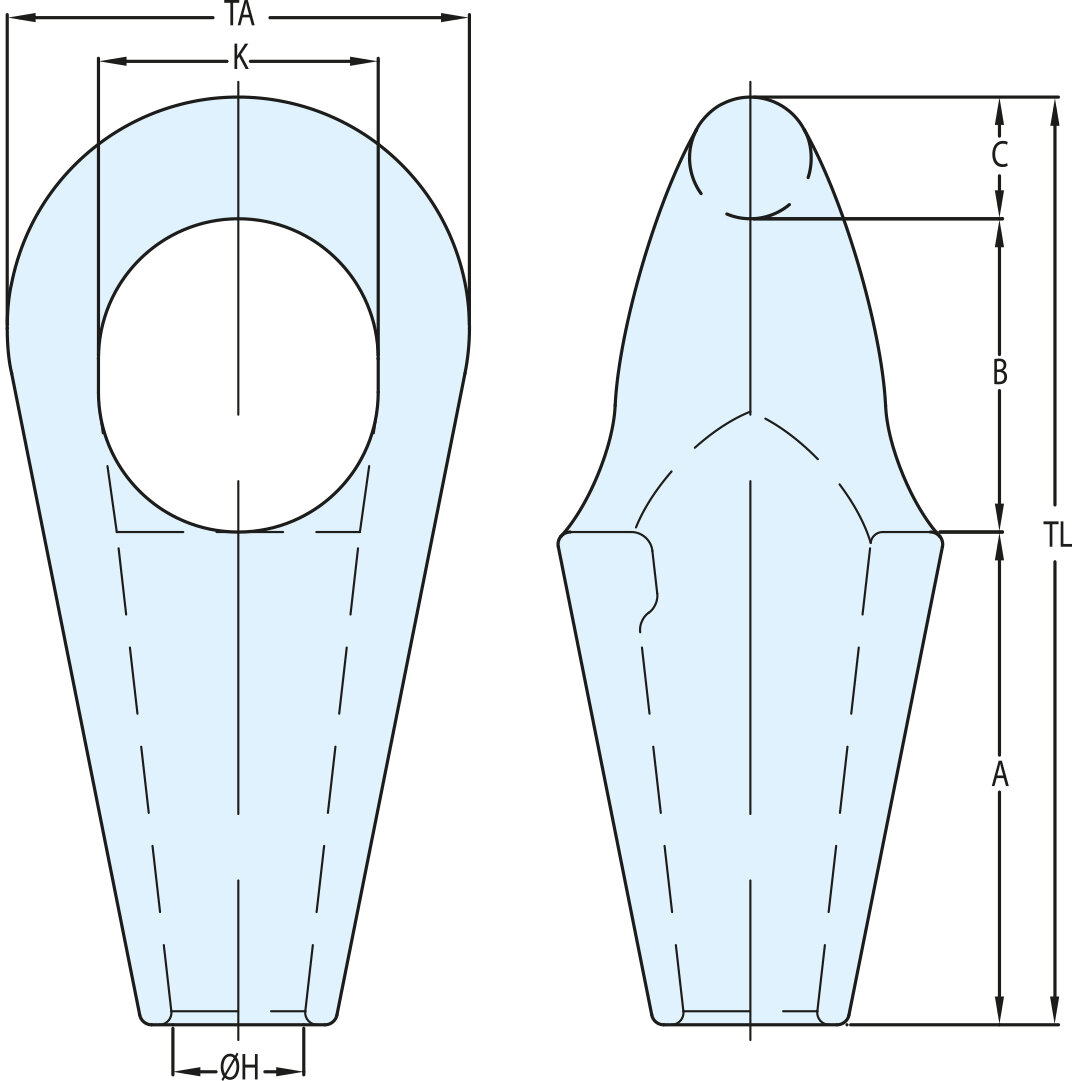

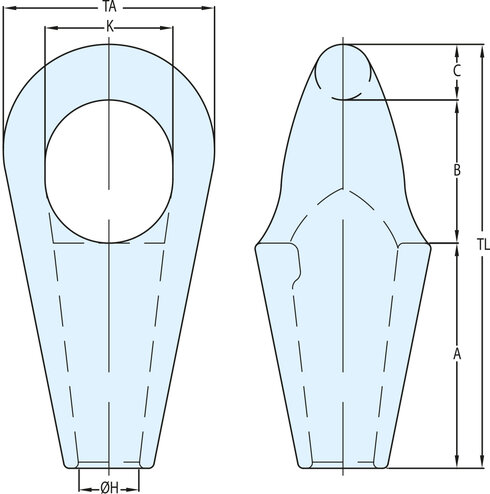

Part Code MBL
ton		 Model no. For wire Ø
mm		 For wire Ø inch A
mm		 B
mm		 C
mm		 Ø H
mm		 K
mm		 TA
mm		 TL
mm		 Weight
kg		 CAD
10.10SBS512G 140 SBS 512 31 - 36 11/4 - 13/8 141 83 38 39 75 132 262 7
10.10SBS517G 160 SBS 517 37 - 42 11/2 - 15/8 162 103 40 44 92 152 305 10
10.10SBS519G 200 SBS 519 43 - 48 13/4 - 17/8 188 120 48 51 112 178 356 16
10.10SBS522G 250 SBS 522 49 - 54 2 - 21/8 204 132 54 59 120 200 390 21
10.10SBS524G 320 SBS 524 55 - 60 21/4 - 23/8 230 148 62 64 135 220 440 28
10.10SBS526G 400 SBS 526 61 - 68 21/2 - 25/8 265 165 68 73 150 250 498 44
10.10SBS527G 500 SBS 527 69 - 75 23/4 - 27/8 87 178 75 79 164 274 540 53
10.10SBS528G 600 SBS 528 76 - 80 3 - 35/8 314 195 76 89 175 295 585 70
10.10SBS529G 700 SBS 529 81 - 86 31/4 - 33/8 327 216 82 92 194 320 625 81
10.10SBS530G 800 SBS 530 87 - 93 31/2 - 35/8 358 220 92 99 202 350 670 112
10.10SBS531G 900 SBS 531 94 - 102 33/4 - 4 365 235 100 105 215 375 700 130
10.10SBS533G 1,000 SBS 533 108 - 115 41/4 - 41/2 420 270 110 120 240 410 800 182

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
