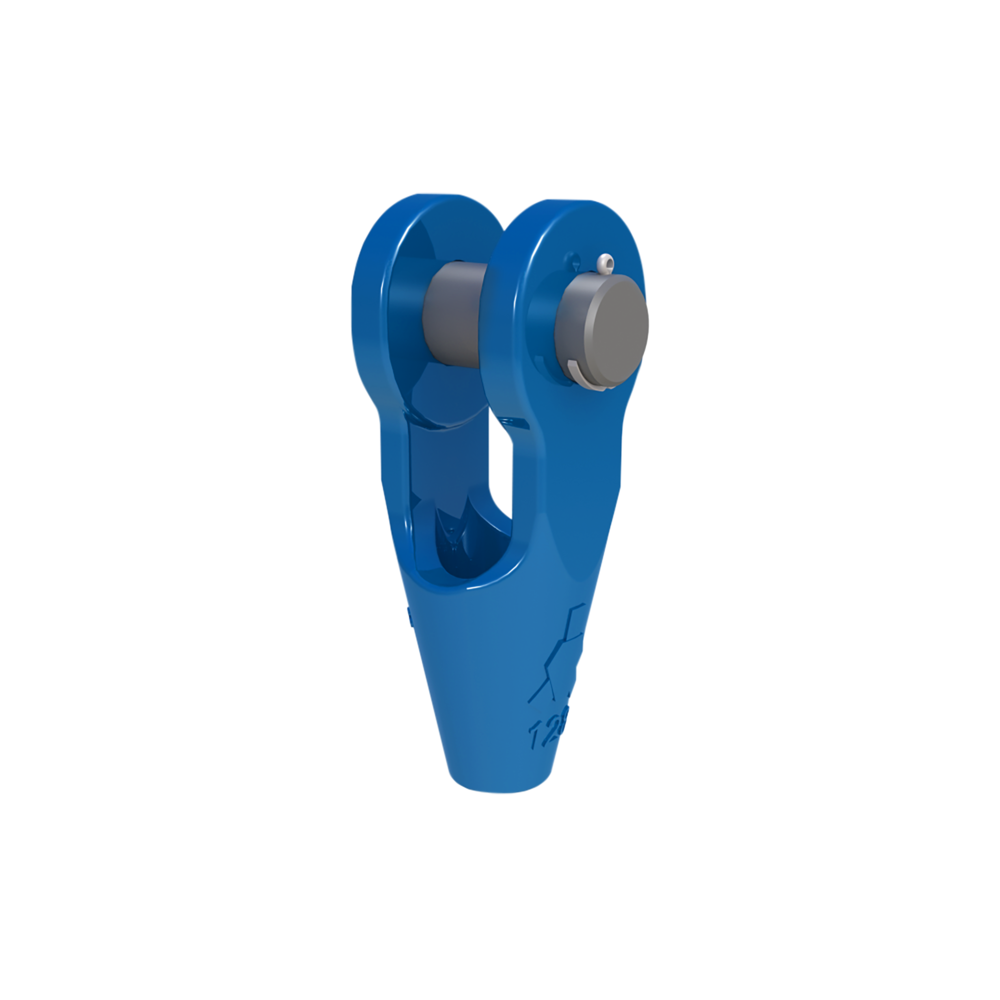

Quenched and tempered cast steel range steel wire rope sockets for embedment with cast compound with mechanical values (Charpy-V > 42 Joule /-20°C) for tough and low temperature use. For wire rope diameter 6 - 203 mm (1/4” - 8”).

2 surface finishes available:

  • Model OSS P : blue painted. (OSS 196 until OSS 100 only Hot dipped galvanized)
  • Model OSS PGAL : Hot dipped galvanized.


Features:

  • Pin securing by cotter pin.
  • Optional is a flange connection for use with a bend stiffener.
  • All spelter sockets have a 100% efficiency.
  • Also avaiable with pin + bolt ( type OSS B )
  • Material: Quenched and tempered cast steel
  • Marking: CE-marked
  • Temperature range: From - 40° C up to +110° C - 100% capacity range.
  • Finish: OSS P: blue painted - OSS PGAL : Hot dipped galvanized.
  • Note: For intermediate rope diameter select fittings with nearest following size.
  • Warning: Compare the spelter's and the wire rope's minimum breaking load.
Select a row from the table below, then click the add to quote button

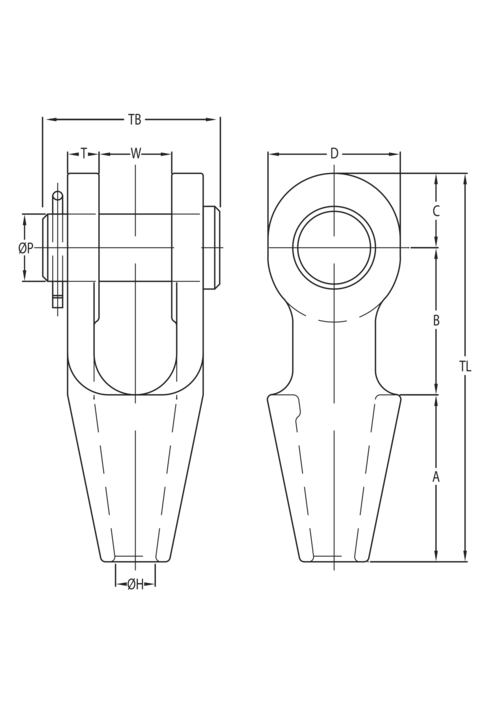

Part Code Code MBL
ton
Strand Ø
mm
For wire Ø
mm
A
mm
B
mm
C
mm
D
mm
Ø H
mm
Ø P
mm
T
mm
TL
mm
TB
mm
W
mm
Weight
kg
CAD
10.10OSS196P OSS196P 8 - 6-7 50 40 19 34 9 16 9 109 51 19 0.4
10.10OSS197P OSS197P 12 - 8-10 57 45 22 42 13 20 11 124 63 21 0.7
10.10OSS198P OSS198P 20 - 11-13 64 51 27 50 15 25 12 142 67 25 1
10.10OSS199P OSS199P 25 13 14-16 76 63 32 58 18 30 14 171 85 32 1.8
10.10OSS100P OSS100P 40 14-16 18-19 89 76 40 70 22 35 16 205 95 38 3
10.10OSS104PG OSS104PGAL 55 18-19 20-22 101 89 45 80 25 41 19 235 110 44 4.6
10.10OSS104P OSS104P 55 18-19 20-22 101 89 45 80 25 41 19 235 110 44 4.6
10.10OSS108PG OSS108PGAL 75 20-22 23-26 114 101 60 104 29 51 22 275 128 51 8
10.10OSS108P OSS108P 75 20-22 23-26 114 101 60 104 29 51 22 275 128 51 8
10.10OSS111P OSS111P 90 23-26 27-30 127 114 65 114 33 57 25 306 142 57 11
10.10OSS111PG OSS111PGAL 90 23-26 27-30 127 114 65 114 33 57 25 306 142 57 11
10.10OSS115P OSS115P 125 27-28 31-36 139 127 72 126 39 63 28 338 155 63 15
10.10OSS115PG OSS115PGAL 125 27-28 31-36 139 127 72 126 39 63 28 338 155 63 15
10.10OSS118P OSS118P 150 30-32 37-39 152 162 80 142 42 70 30 394 177 76 22
10.10OSS118PG OSS118PGAL 150 30-32 37-39 152 162 80 142 42 70 30 394 177 76 22
10.10OSS120P OSS120P 170 33-35 40-42 165 165 88 156 45 76 33 418 187 76 27
10.10OSS120PG OSS120PGAL 170 33-35 40-42 165 165 88 156 45 76 33 418 187 76 27
