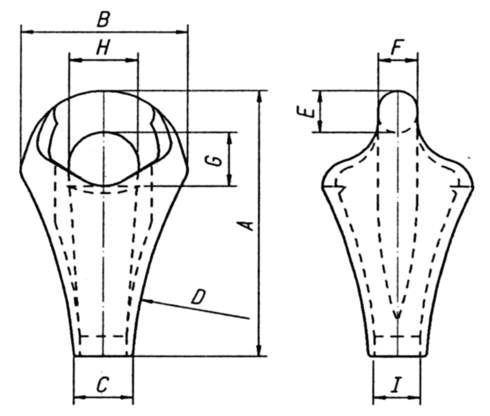

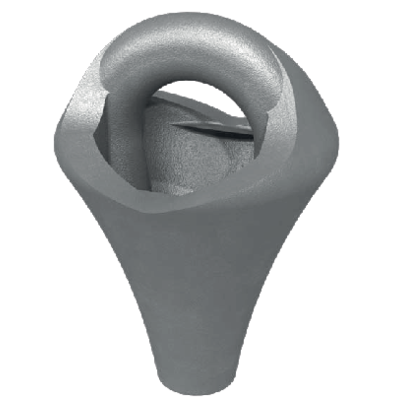

The pear socket type S is specially designed for and the breakingload is related to steel wire ropes with a smaller diameter that have a higher breaking load. Such as 8 strand and/or compacted wire ropes.
- Material: High grade casted steel.
- Marking: Manufacturers logo, size and batch number.
- Warning: The specified capacities shown are for grab operation. For other applications use safety factor 5:1
- Safety factor: 5:1
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
Combination of the Nemag Rope Pear Socket type S with Nemag Quick Release Link.
A Rope Pear Socket can be fitted to a Quick Release Link of the same size, or to a link with a different size as indicated in table
|Pear code:||Link code:|
|RPS-924||RL-8 / RL-9 / RL-10|
|RPS-1026||RL-9 / RL-10 / RL-11|
|RPS-1130||RL-10 / RL-11 / RL-12|
|RPS-1232||RL-11 / RL-12|
|RPS-1336||RL-12 / RL-13 / RL-14|
|RPS-1440||RL-13 / RL-14 / RL-15|
|RPS-1548||RL-14 / RL-15|
|RPS-1648||RL-15 / RL-17|
