Quenched and tempered cast steel range steel wire rope sockets for embedment with cast compound with mechanical values (Charpy-V > 42 Joule /-20°C) for tough and low temperature use. For wire rope diameter 6 - 203 mm (1/4” - 8”).

2 surface finishes available:

  • Model OSS B : blue painted. (OSS 196 - OSS 100 only Hot dipped galvanized)
  • Model OSS BGALV : Hot dipped galvanized.


Features:

  • Bolt securing by nut and cotter pin.
  • Optional is a flange connection for use with a bend stiffener.
  • All spelter sockets have a 100% efficiency.
  • Also avaiable with pin + cotter pin ( type OSS P )
  • Material: Quenched and tempered cast steel
  • Marking: CE-marked
  • Temperature range: From - 40° C up to +110° C - 100% capacity range.
  • Finish: OSS B blue painted - OSS BGALV : Hot dipped galvanized.
  • Note: For intermediate rope diameter select fittings with nearest following size.
  • Warning: Compare the spelter's and the wire rope's minimum breaking load.
Select a row from the table below, then click the add to quote button

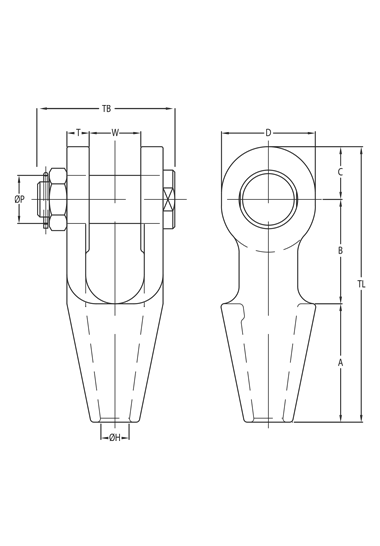

Part Code Code MBL
ton
Strand Ø
mm
For wire Ø
mm
A
mm
B
mm
C
mm
D
mm
Ø H
mm
Ø P
mm
T
mm
TL
mm
TB
mm
W
mm
Weight
kg
CAD
10.10OSS196B OSS196B 8 - 6-7 50 40 19 34 9 16 9 109 62 19 0.5
10.10OSS197B OSS197B 12 - 8-10 57 45 22 42 13 20 11 124 75 21 0.8
10.10OSS198B OSS198B 20 - 11-13 64 51 27 50 15 25 12 142 80 25 1.1
10.10OSS199B OSS199B 25 13 14-16 76 63 32 58 18 30 14 171 96 32 1.9
10.10OSS100B OSS100B 40 14-16 18-19 89 76 40 70 22 35 16 205 107 38 3.1
10.10OSS104BG OSS104BGALV 55 18-19 20-22 101 89 45 80 25 41 19 235 123 44 4.7
10.10OSS104B OSS104B 55 18-19 20-22 101 89 45 80 25 41 19 235 123 44 4.7
10.10OSS108BG OSS108BGALV 75 20-22 23-26 114 101 60 104 29 51 22 275 138 51 8
10.10OSS108B OSS108B 75 20-22 23-26 114 101 60 104 29 51 22 275 138 51 8
10.10OSS111B OSS111B 90 23-26 27-30 127 114 65 114 33 57 25 306 160 57 12
10.10OSS111B OSS111BGALV 90 23-26 27-30 127 114 65 114 33 57 25 306 160 57 12
10.10OSS115B OSS115B 125 27-28 31-36 139 127 72 126 39 63 28 338 165 63 16
10.10OSS115BG OSS115BGALV 125 27-28 31-36 139 127 72 126 39 63 28 338 165 63 16
10.10OSS118B OSS118B 150 30-32 37-39 152 162 80 142 42 70 30 394 199 76 23
10.10OSS118BG OSS118BGALV 150 30-32 37-39 152 162 80 142 42 70 30 394 199 76 23
10.10OSS120B OSS120B 170 33-35 40-42 165 165 88 156 45 76 33 418 209 76 28
10.10OSS120BG OSS120BGALV 170 33-35 40-42 165 165 88 156 45 76 33 418 209 76 28

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
