General: Adapted for general purpose. Diameter relation app. 9 (lin Ø x 9 = ØE).

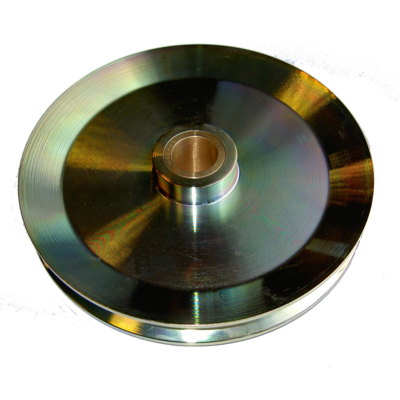

Design: Turned out of steel for stable state and low weight. Bronze bushed. To be lubricated on the shaft.

  • Material: High strength construction steel, bush of red metal SS 5204-15.
  • Finish: Yellow zincified.
6800_new[Yellow]_225mm_2
8012m_90_225mm
Select a row from the table below, then click the add to quote button

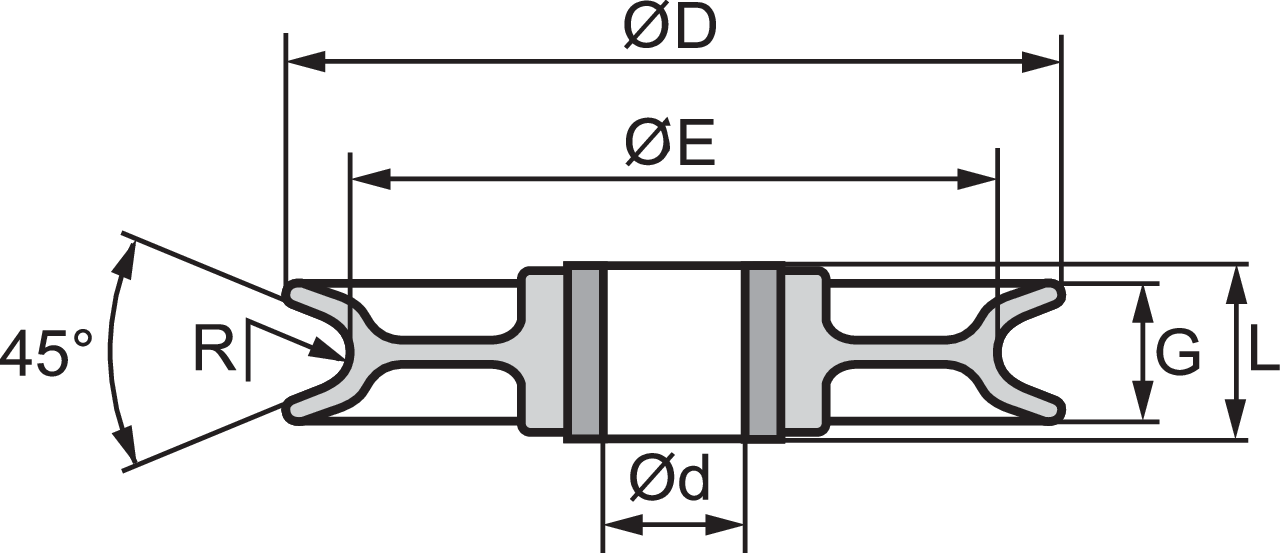

Art No Code D (mm) E (mm) G (mm) L (mm) R (mm) Max rope Ø (mm) d H8 Weight
kg
CAD
10.354015053 8012 125 103 23 26 6,5 12 20 1.3
10.354015490 8015 150 125 28 33 8 15 28 2.1
10.354016021 8018 200 165 37 47 9,5 18 35 4.2
10.354015020 8023 250 210 43 50 12 23 45 8.3
Other dimensions and designs on request.
