The screwable PLTW is perfect for mounting machine parts or vehicle bodies, as well as for use as a lifting or load-securing device. Please consider the different safety factors, specifically the WLL for lifting and the LC for use as a tie-down device. The welded
ring is flexible, and the bracket is drop-forged. Equipped with two high-quality, crack-tested screws.
Permitted usage

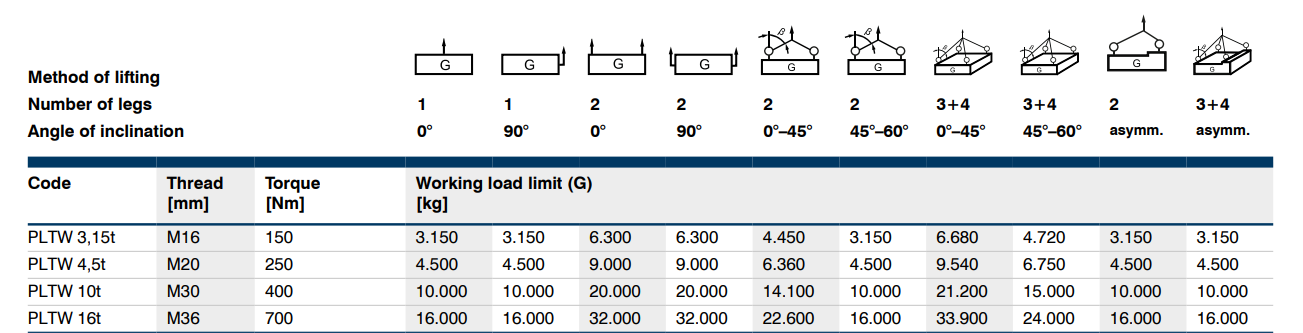

Please refer to the working load limit as stated in the inspection certificate and/or the working load limit table to ensure maximum safety for permitted applications.
Non-permitted usage
During assembly, ensure that improper loading does not arise due
to any of the following factors:
- Direction of pull is obstructed
- Direction of pull is not within the indicated area
- Loading ring rests against edges or loads
- Marking: According to standard, CE-marked
- Temperature range: -20°C up to 200°C
-
Standard:
EN 1677-1
except grade/WLL - Note: LC in daN = 2x nominal load capacity
- Safety factor: 4:1
