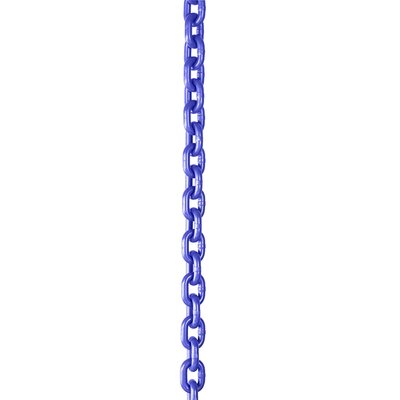

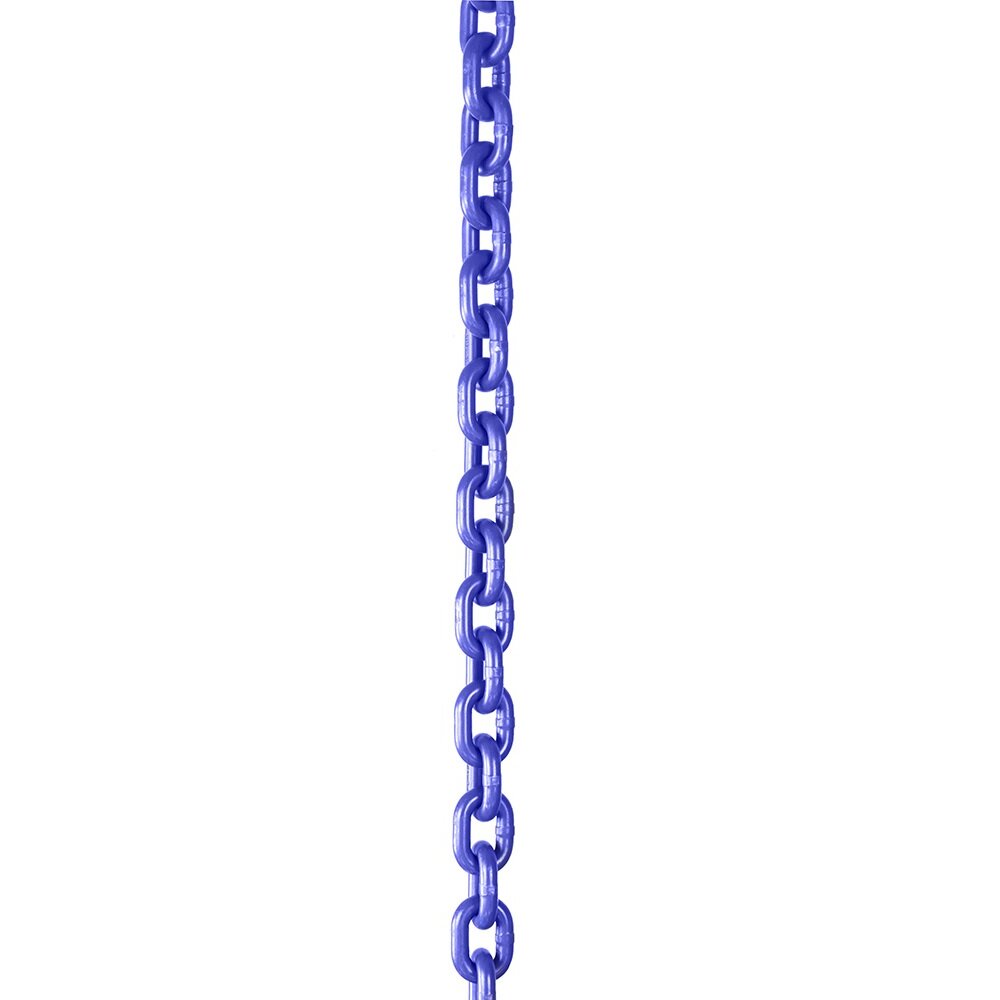

The POWERTEX PSLA Short Link Lifting Chain is a calibrated Grade 10 lifting chain for demanding lifting applications, including the manufacture of Grade 10 chain slings. It combines reliable mechanical performance with consistent manufacturing and an electrophoretic coating for improved surface durability.
Best used for
- Grade 10 chain sling assembly
- Industrial lifting applications where increased coating durability is beneficial
Product benefits
- Proof load tested to 2.5 × WLL before delivery
- Every production batch tested for minimum breaking force
- Calibrated chain supports accurate sling assembly
- Automatic welding delivers consistent chain quality
- Minimum 20% elongation provides controlled ductility before failure
- Electrophoretic E-coat finish improves resistance to wear and corrosion
- Manufactured in Europe and compliant with Machinery Directive 2006/42/EC
- CE, UKCA and traceability marked with 2.2 Certificate and Declaration of Conformity included
- Material: Quenched and Tempered Alloy Steel of Grade 10 quality
- Marking: According to standard, CE-marked, UKCA-marked, Factory symbol, Grade (10 or 100), Traceability batch marking
- Temperature range: -40°C up to +200°C (without reduction in WLL)
- Finish: Electrophoretic wet paint (E-coat) in blue
- Standard: EN 818-2 (+ 25% WLL), AS 2321, ASTM A973/A973M
- Safety factor: 4:1
- Grade: 10
