Haklift

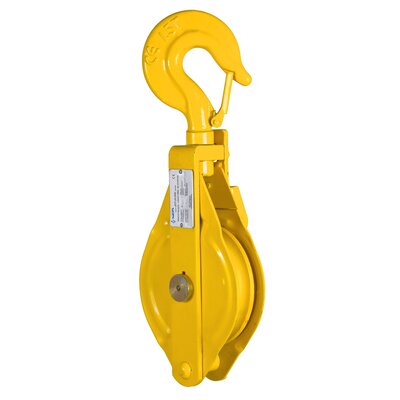

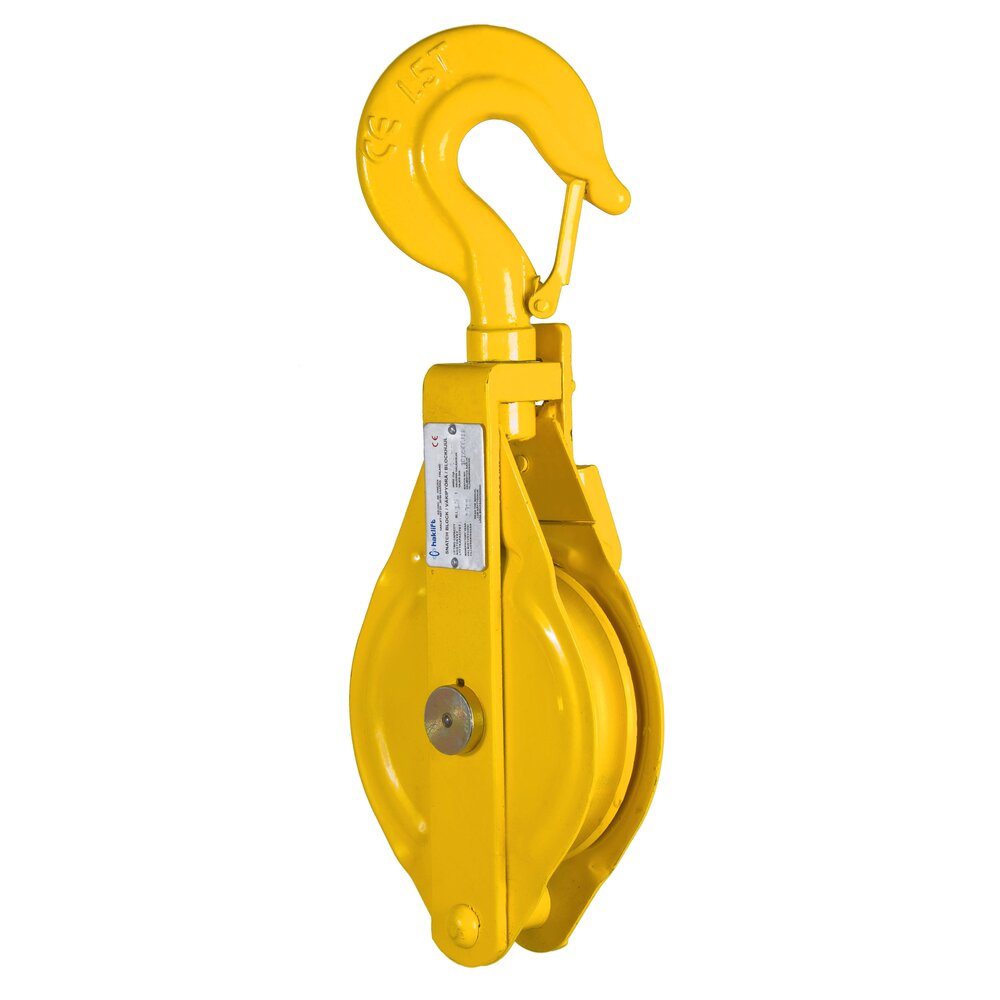

Intended for general lifting purposes. Can also be used for pulling. Side opening snatch block for wire rope with hook ends. Equipped with slide bearings, with grease nipple or apertur.



  • Material: Steel
  • Marking: CE-marked
  • Finish: Painted, yellow
  • Note: Height is measured from the bottom of the hook
Select a row from the table below, then click the add to cart button
Part Code WLL
ton
Height
mm
Wheel size
mm
Max rope Ø
mm
Weight
kg
16.15PSBH005075 0,5 225 75 8 1,7
16.15PSBH010100 1 260 100 10 3,2
16.15PSBH015125 1,5 310 125 13 5
16.15PSBH020150 2 380 150 16 8,3
16.15PSBH030180 3 415 180 19 12
16.15PSBH040200 4 480 200 22 18
16.15PSBH050250 5 585 250 25 27
