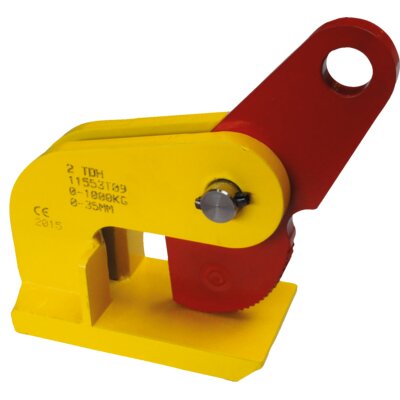

Lightweight heavy duty clamp for safe and easy lifting of sheets that will bend or deflect when being lifted. The TDH horizontal lifting clamps must always be used in pairs (or multiples thereof).
- Compact design and high lifting capacity
- Lightweight design for easy handling
- Tough quality heavy duty welded body
- Marking: According to standard, CE-marked, Type, serial number, WLL, Jaw opening.
- Temperature range: - 40°C to +100°C.
- Standard: EN 13155
- Note: Must always be used in pairs (or multiple pairs)
- Warning: Hardness level of the material surface may not exceed 37 HrC (345 Hb, 1166 N/mm2)

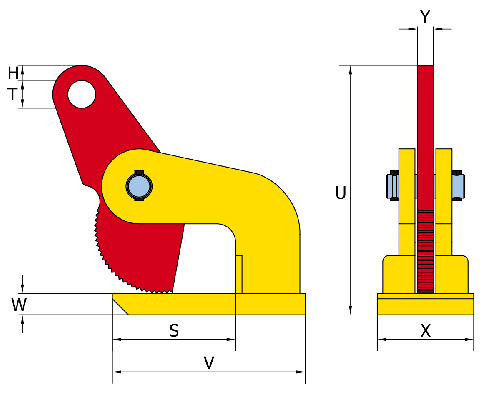

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
