General:
- Max. working pressure: 720 bar/ 72 Mpa
- Acting type: single
- Return type: gravity
- Compact, Lightweight
- Usable in all positions
- Protected against ejection of plunger


Standard supplied with:
- High Flow female coupler A 118
- HFJ 10/30 G 4 contains a 30 cm connecting hose with anti-kink spring
- HJ 20/50 G 11 contains a flat saddle

Available on request:
- Cylinders manufactured in conformity with customer specifications
- Base mounting holes

  • Material: steel
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

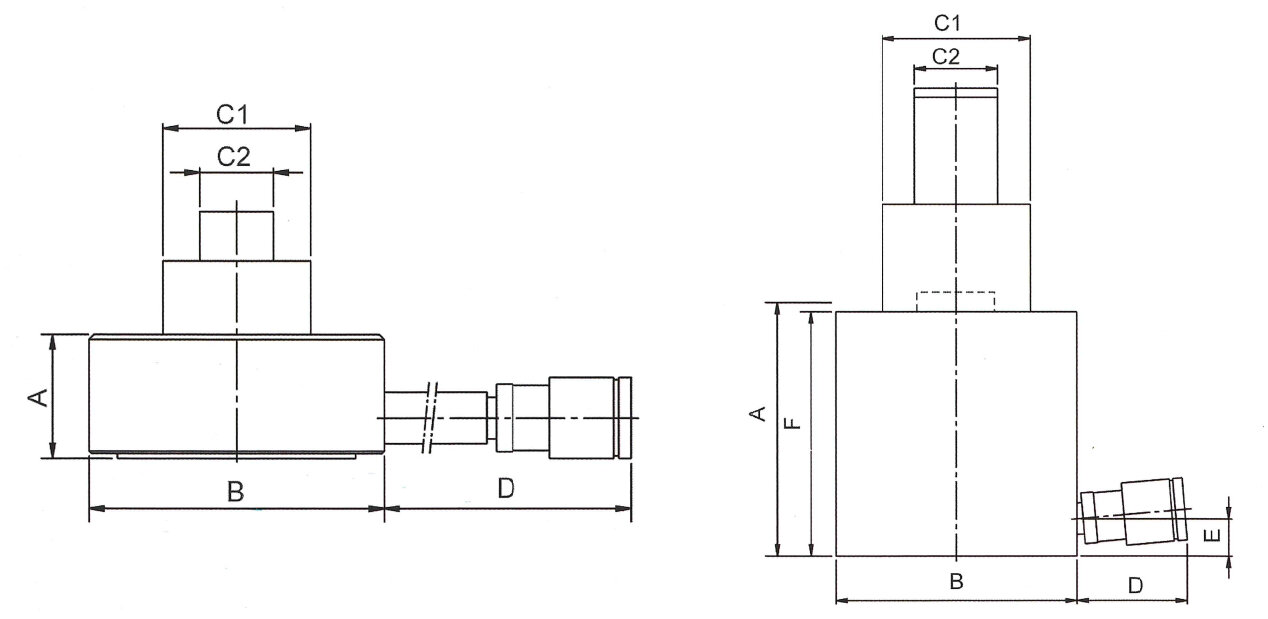

Part Code Size Model Closed height (mm) tonnage t stroke length 1 mm stroke length 2 mm A
mm
B
mm
C1 (mm) C2 (mm) D
mm
E
mm
F
mm
Weight
kg
CAD
16.40100111005 49 HFJ 10/30 G 4 49 10 41 20 49 120 60 30 385 4.5
16.40100112103 140 HJ 20/50 G 11 140 20 111 55 140 125 80 45 70 70 131 12.5

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
