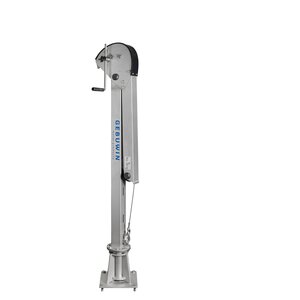

The Swivel Davit is a very user-friendly standing crane. Lightweight and
portable. The integrated winch and cable provide an ergonomic and modern look. Within 5 seconds this davit is ready for use.
Specifications:
- robust and safe lifting davit crane
- integrated winch and cable in a modern design
- easy to transport
- load pressure brake with double ratchet system for safe stable hold of the load in any position
- possible to rotate 360° due to the use of ball bearings
- adjustable crank
- 1 layer of paint
Optional:
- zinc-plated finish (6 - 8 micron) (EV)
- stainless steel grade SAE 316 (SST316)
- ATEX certified (EX)
Accessories:
- floor, wall and in-cement floor sockets
- carry bag and rain protection cover
- Marking: According to standard, CE-marked
- Temperature range: -20°C up to +40°C
- Finish: Standard paint finish in grey (RAL 7035) according to DIN 12944, C1M
- Standard: EN 13157
- Safety factor: 4:1
