Our range of lightweight portable gantries brings a new dimension to the professional lifting market. The portability, safe manual assembly and rigidity of the structure mean that it opens up a whole new market for the use of gantries with lifting applications such as confined space, rooftop, HVAC, lift-shaft, waste water, clean environments (food, hospitals etc.) and increasing availability from the hire industry.

Design: The gantry crane consists of four individual elements that can be assembled and disassembled in a few minutes. The height is adjustable so that the crane can also be placed in rooms with low ceilings.

Areas of applications:

  • Moving and lifting of heavy loads.
  • Building motors and driving applications in and out.
  • Repair and maintenance of pumps.
  • Loading trucks and trailers on and off.
  • For use in workshops and on site.
  • Note: Can be delivered with capacity up to 3 tons, as well as custom-made solutions.

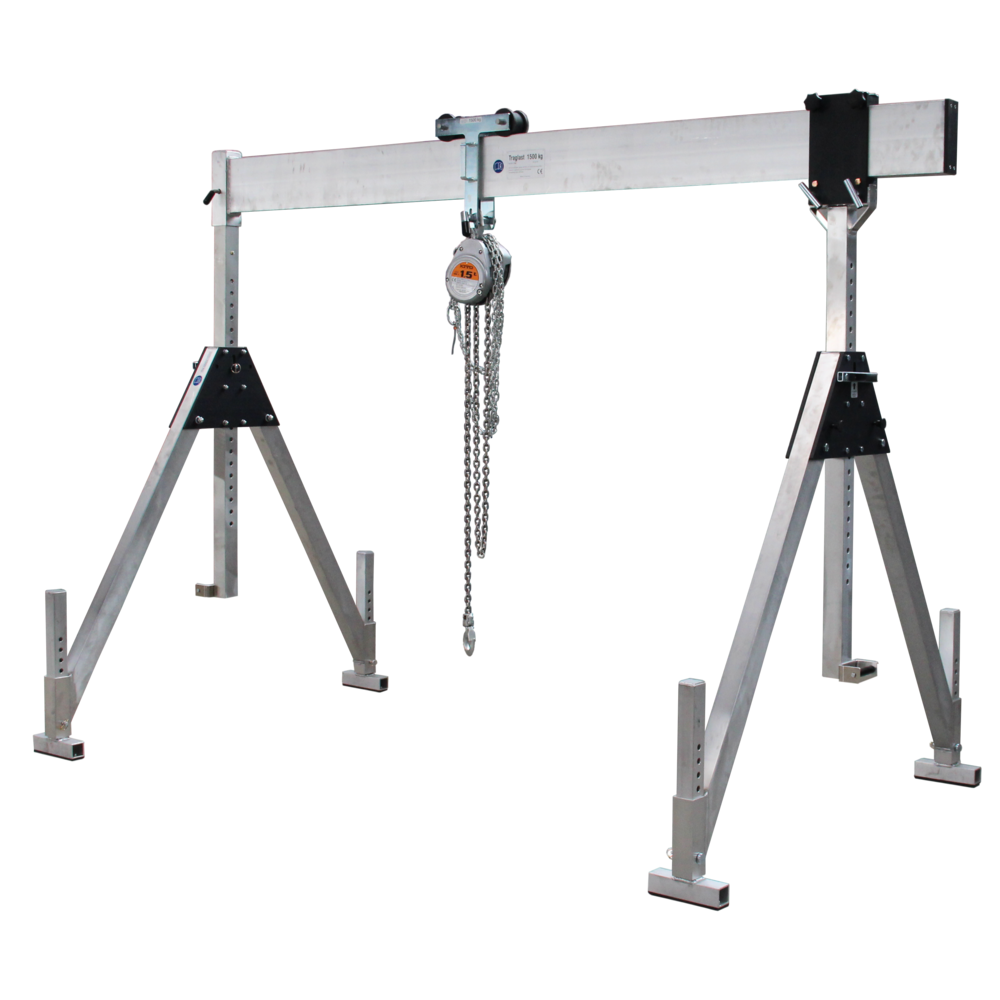

Gantry_motor

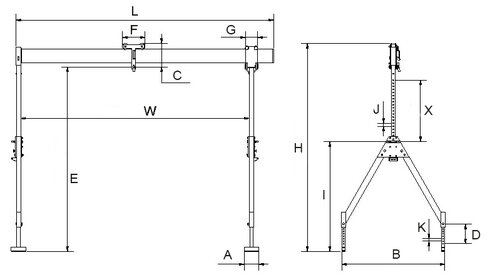

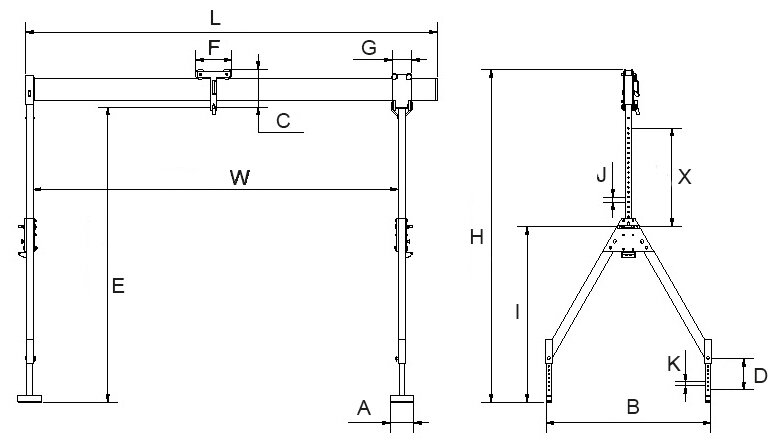

Foldeable Gantry Cranes dimensions pic
Select a row from the table below, then click the add to cart button
Part Code WLL
ton
Model Beam length
m
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
I
mm
J
mm
K
mm
L
mm
W
mm
X
mm
Weight
kg
13.10111000-7 0,75 Mini 7 240 1 200 385 320 1230-2100 370 200 1615-2485 - 50 40 7 217 6 992 550 143
13.10111000-8 0,75 Mini 8 240 1 200 385 320 1230-2100 370 200 1615-2485 - 50 40 8 217 7 992 550 153
13.10112000-7 0,75 Standard 7 240 1 720 385 320 1680-3000 370 200 1470-1790 1470-1790 50 40 7 217 6 992 1 000 159
13.10112000-8 0,75 Standard 8 240 1 720 385 320 1680-3000 370 200 1470-1790 1470-1790 50 40 8 217 7 992 1 000 168
13.10113000-7 0,75 Maxi 7 240 2 295 385 320 2180-4000 370 200 1965-2285 1965-2285 50 40 7 217 6 992 1 500 175
13.10113000-8 0,75 Maxi 8 240 2 295 385 320 2180-4000 370 200 1965-2285 1965-2285 50 40 8 217 7 992 1 500 184
13.10111000-6 1 Mini 6 240 1 200 385 320 1230-2100 370 200 1615-2485 - 50 40 6 217 5 992 550 134
13.10112000-6 1 Standard 6 240 1 720 385 320 1680-3000 370 200 1470-1790 1470-1790 50 40 6 217 5 992 1 000 149
13.10113000-6 1 Maxi 6 240 2 295 385 320 2180-4000 370 200 1965-2285 1965-2285 50 40 6 217 5 992 1 500 165
13.10111000-2 1,5 Mini 2 240 1 200 385 320 1230-2100 370 200 1615-2485 - 50 40 2 217 1 992 550 96
13.10111000-3 1,5 Mini 3 240 1 200 385 320 1230-2100 370 200 1615-2485 - 50 40 3 217 2 992 550 105
13.10112000-2 1,5 Standard 2 240 1 720 385 320 1680-3000 370 200 1470-1790 1470-1790 50 40 2 217 1 992 1 000 111
13.10111000-4 1,5 Mini 4 240 1 200 385 320 1230-2100 370 200 1615-2485 - 50 40 4 217 3 992 550 115
13.10112000-3 1,5 Standard 3 240 1 720 385 320 1680-3000 370 200 1470-1790 1470-1790 50 40 3 217 2 992 1 000 121
13.10111000-5 1,5 Mini 5 240 1 200 385 320 1230-2100 370 200 1615-2485 - 50 40 5 217 4 992 550 124
13.10113000-2 1,5 Maxi 2 240 2 295 385 320 2180-4000 370 200 1965-2285 1965-2285 50 40 2 217 1 992 1 500 127
13.10112000-4 1,5 Standard 4 240 1 720 385 320 1680-3000 370 200 1470-1790 1470-1790 50 40 4 217 3 992 1 000 130
13.10113000-3 1,5 Maxi 3 240 2 295 385 320 2180-4000 370 200 1965-2285 1965-2285 50 40 3 217 2 992 1 500 137
13.10112000-5 1,5 Standard 5 240 1 720 385 320 1680-3000 370 200 1470-1790 1470-1790 50 40 5 217 4 992 1 000 140
13.10113000-4 1,5 Maxi 4 240 2 295 385 320 2180-4000 370 200 1965-2285 1965-2285 50 40 4 217 3 992 1 500 146
13.10113000-5 1,5 Maxi 5 240 2 295 385 320 2180-4000 370 200 1965-2285 1965-2285 50 40 5 217 4 992 1 500 156
