General: Specially rugged profile chain in grade 12 for lifting.

  • Material: Alloy steel grade 12
  • Marking: Every link is marked with manufacturer ID and grade
  • Temperature range: -60ºC to 300ºC
  • Finish: Light blue powdercoated
  • Note: Not to be heat-treated
  • Grade: 12
Chain

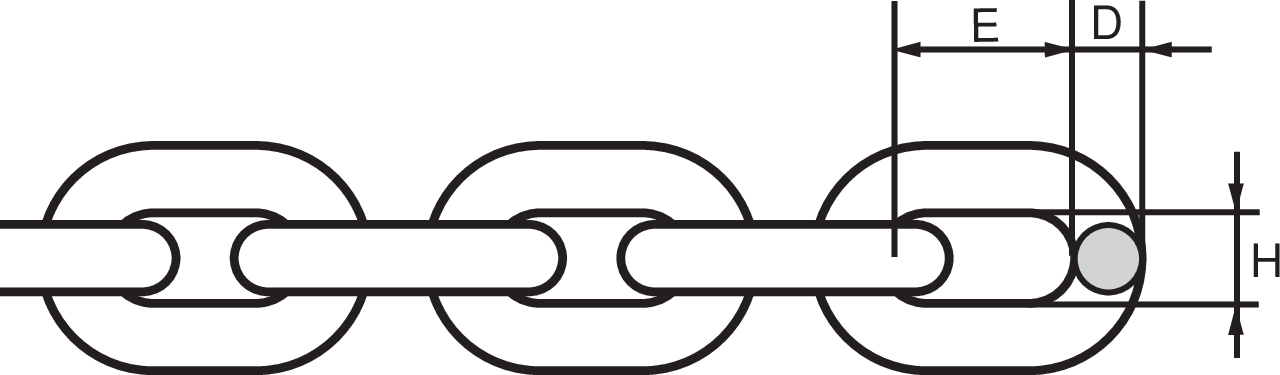

KLM_e_225mm
Select a row from the table below, then click the add to cart button
Part Code Code Diameter
mm
WLL
ton
Breaking force
kN
Outside width
mm
E
mm
H
mm
Weight
kg/m
11.66WINPRO07 WINPRO 7 7 2,36 92,6 26 22 10 1,36
11.66WINPRO08 WINPRO 8 8 3 118 29 25 11 1,64
11.66WINPRO10 WINPRO 10 10 5 196 37 33 14 2,7
11.66WINPRO13 WINPRO 13 13 8 314 50 41 19 4,8
*Lifting applications for safety factor 4:1
