• Not for lifting

General: Chain for different applications.


  • Marking: According to standard
  • Finish: 3-4 mm zink-platined, 5- mm hot-dip galvanized.
  • Standard: DIN 766
  • Warning: Not for lifting.
  • Grade: 3
KL_White_225mm
KLM_e_225mm
Select a row from the table below, then click the add to cart button

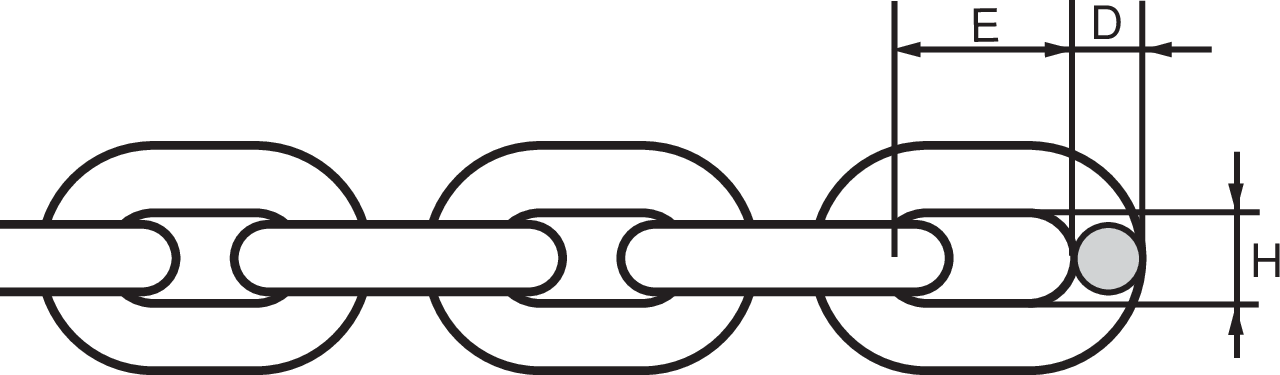

Part Code Chain diameter
mm
Min. breaking force
kN
Length
m
D
mm
E
mm
H
mm
Weight
kg/m
11.60766030ER50 3 3,2 50 3 16 5 0,16
11.60766040ER50 4 8 50 4 16 5,7 0,32
11.60766050ER30 5 12,5 30 5 18,5 7 0,5
11.60766060ER30 6 16 30 6 18,5 8,2 0,8
11.60766080ER15 8 32 15 8 24 11,2 1,4
11.60766100ER15 10 50 15 10 28 14 2,2

*Please note that this product is sold in rolls only.
