Home / Products / CHAIN & COMPONENTS / Chain / Chain DIN 766 Shortlink SS

Chain DIN 766 Shortlink SS

  • Not for lifting

Chain for different applications.

Standard: Dimension acc. to DIN 766.

  • Material: AISI 316.
  • Warning: Not for lifting.
  • Grade: 2
KL_White_225mm Chain DIN 766 Shortlink SS
KL_White_225mm
Select a row from the table below, then click the add to cart button

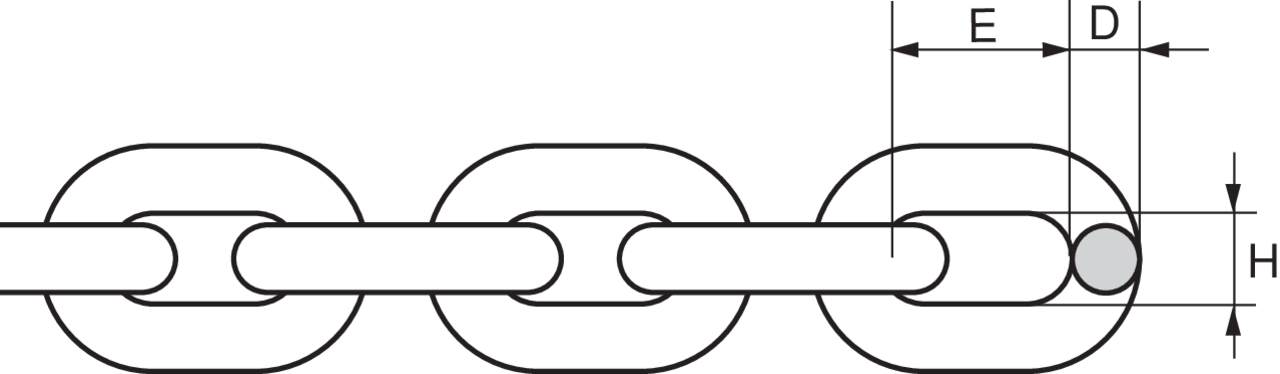

Part Code Diameter
mm		 Length
m		 E
mm		 H
mm		 Weight
kg/m		 CAD
11.60766030SR50 3 50 15 5 0.3
11.60766040SR50 4 50 16 6 0.32
11.60766050SR30 5 30 0.5
11.60766060SR30 6 30 18,5 8 0.75
11.60766080SR15 8 15 24 10 1.4
11.60766100SR15 10 15 28 14 2.3

*Please note that this product is sold only in rolls.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
