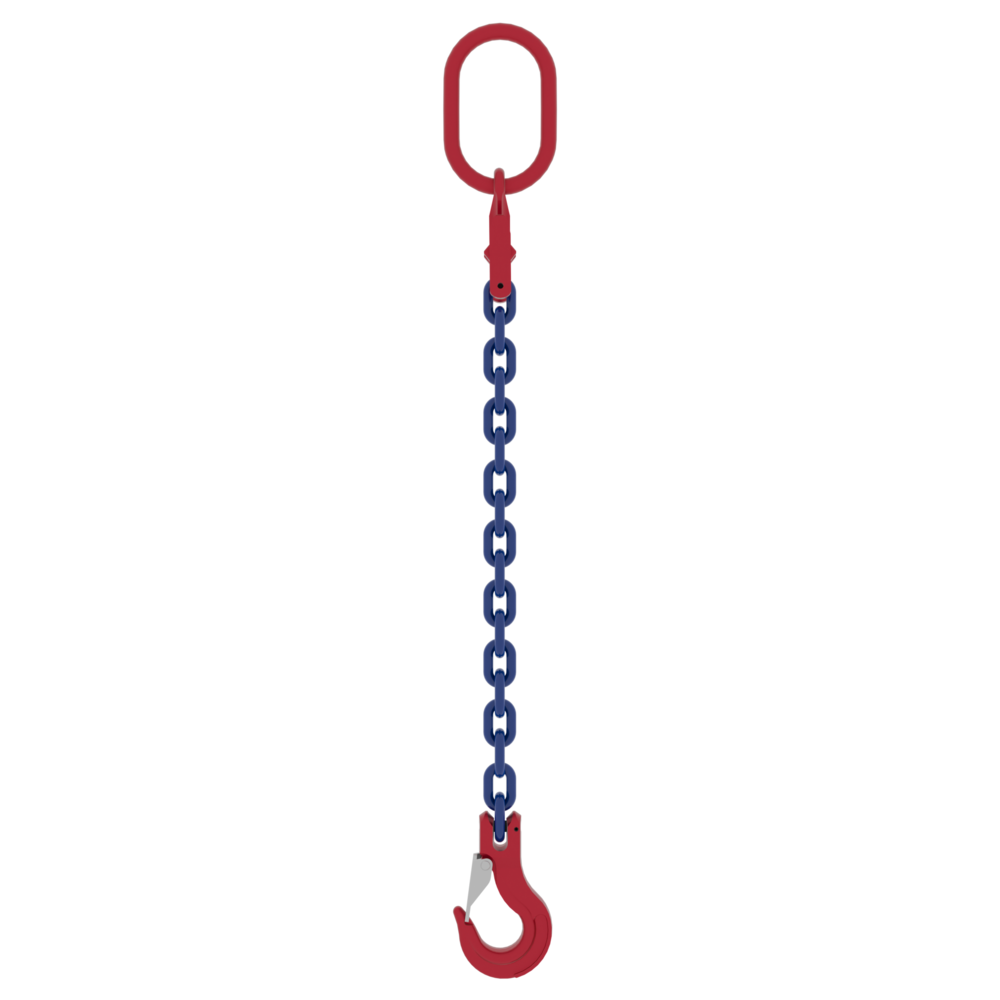

Chain Sling Powertex 1-leg with Masterlink MC1 and Latch Hook, Grade 10

The Chain Sling Powertex 1-leg MC-1 with latch hook is a single-leg lifting assembly for general industrial use. It features an MC-1 master link with an integrated shortening function, reducing loose components and creating a more compact and manageable lifting setup.

It is designed for controlled vertical lifting where fast connection, quick length adjustment, and predictable performance are required.

The assembly includes the MC-1 master link, a Grade 10 chain, a latch hook, and a marking plate with WLL information, providing a complete, ready-to-use configuration.

Best used for:

• Straight vertical lifts with a single lifting point
• Applications where a compact setup with integrated shortening is preferred
• Repetitive lifting where fast and efficient hook connection improves handling speed

Product benefits

• MC-1 master link integrates the shortening function, reducing loose components and simplifying assembly configuration
• Integrated shortening allows quick length adjustment without adding separate shortening hooks
• Compact design supports a clearer overview during use and inspection, helping reduce handling errors
• Latch hook enables fast and secure attachment, reducing connection time during repetitive lifting operations
• Grade 10 chain provides higher capacity compared to Grade 8, enabling compact setups without increasing chain diameter
• Components are crack detection tested, and samples from each batch are proof load tested, supporting consistent quality control
• Fatigue rated to 20,000 cycles at 1.5x WLL, supporting predictable performance in repetitive lifting
• Marking plate shows WLL and angle capacities, simplifying load planning on site

• Material: Alloy steel
• Marking: According to standard, CE-marked
• Temperature range: -40°C up to +200°C without reduction in WLL
• Finish: Red powder paint
• Standard: EN 818-4, AS 3776
  (+25 % WLL)

• Safety factor: 4:1
• Grade: 10
