Stunt rigging ropes. The naked truth. Pure Dyneema for highest performance with the smallest weight.

Elongation at 10% of breaking load: 0,6%.

Properties:

  • Geothane coating for improved protection against weathering and abrasion
  • Due to inelastic elongation (creep) under continuous load less suited for static applications
  • Very good abrasion resistance
  • Excellent UV resistance
  • Referring to ISO 10325
  • Rope construction: 12-braided.
  • Finish: Grey or anthracite.

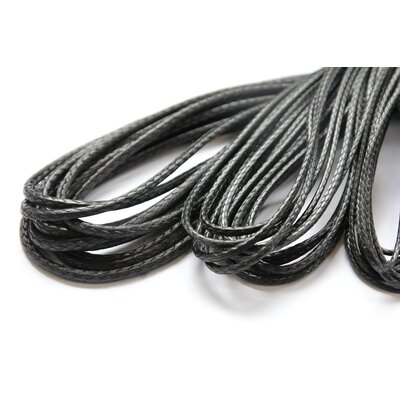

DynaOne_schwarz
Select a row from the table below, then click the add to cart button
Diameter
mm
MBL
ton
Breaking load real
ton*
Weight
kg
3 1 0,9 0,48
4 1,55 1,4 0,84
5 2,66 2,4 1,43
6 3,61 3,25 1,9
8 6,33 5,7 3,3
10 8,83 8,14 4,8
12 13,54 12,19 7,2
14 18,98 17,08 10
16 21,7 19,53 11,5
18 27,53 24,78 15,3
20 34,96 31,46 20,1
22 40,79 36,71 23,4
24 49,52 44,56 28,4
26 54,04 48,64 31
28 64,44 58,89 38,2
30 71,83 64,65 43,4
32 74,1 66,69 46,5
34 84,07 75,66 52,7
36 94,04 84,64 60,1
38 104,52 94,07 66,8
40 107,68 96,91 71,6
44 136,4 122,75 90,7
46 149,56 134,6 99,8
48 157,48 141,74 105,1
52 186,94 168,25 124,6

Break load in accordance with DIN EN ISO 2307. Spliced break load -10%.
