Wedge Socket 3000

General: Intended for attaching of wire rope where switching often occur, e.g. blocks of mobilecranes, or to be able to adjust the length of the wire rope. See recommended assembly to get correct results.
Design: Bended and welded house made of plate. Wedge made of plate with milled grove and symmetrical shaped to avoid error assemblies. Turned bolt with head, low nut and split cotter. The wedge sockets is delivered complete. Note that some wedge houses fit to different sizes of wedges.

Marking house and wedge: Dimension area.
Proof: Batch proof 2 x WLL.

  • Material: House, wedge and bolt by high-tensile construction steel.
  • Finish: Electro-zink plated
  • Note: To elevators and mines we recommend other designs.
  • Safety factor: 5:1

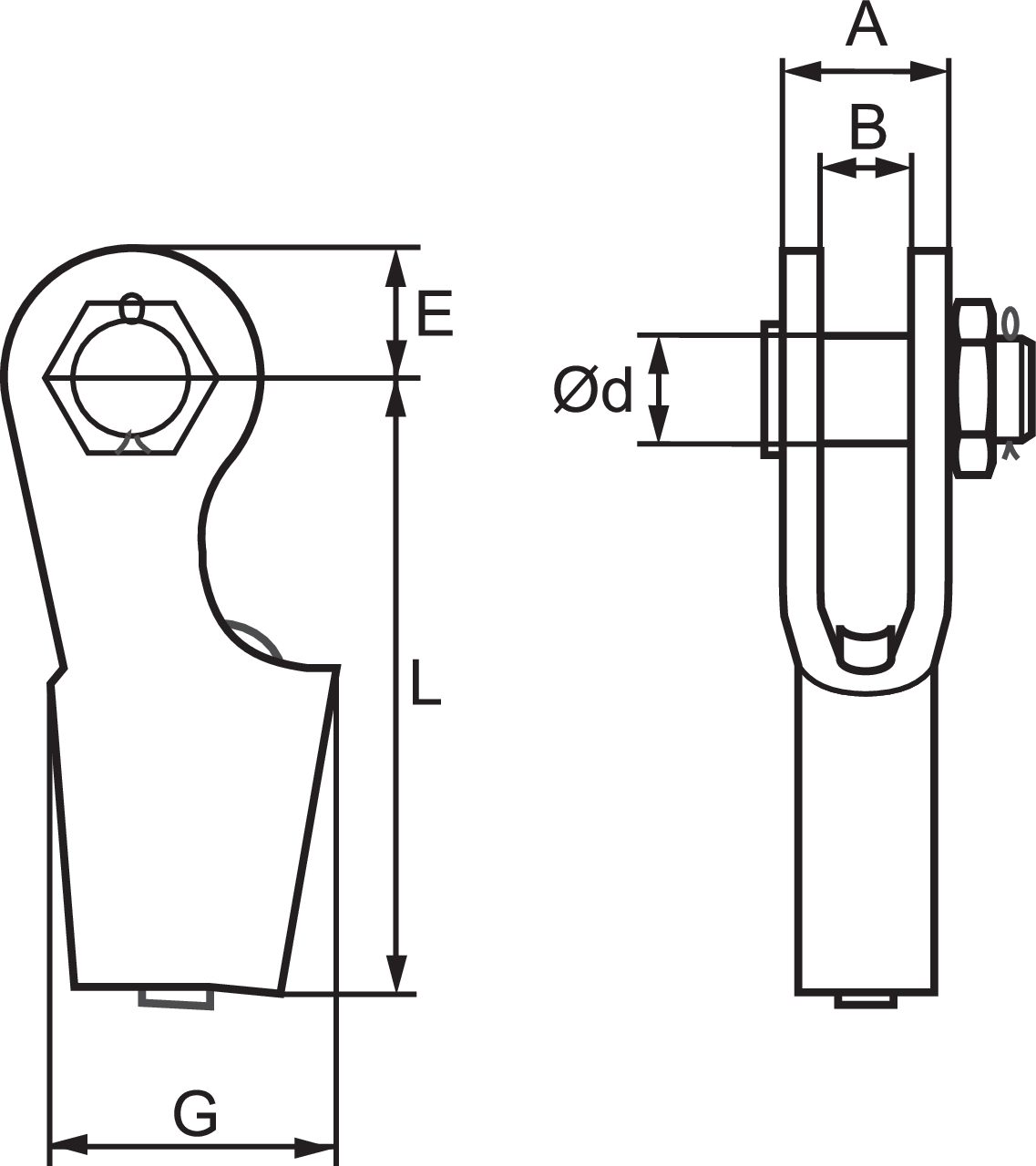

3001a_micke_225mm
3001a_micke_225mm
3001am_micke2_225mm
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton		 MBL
t		 Diameter
mm		 A
mm		 B
mm		 E
mm		 G
mm		 L
mm		 D
mm		 Weight
kg		 CAD
10.20300110 3001B 2 10 10 30 16 29 70 145 27,5 1.2
10.20300112 3001C 2 10 11-12 30 16 29 70 145 27,5 1.2
10.20300109 3001A 2 10 8-9 30 16 29 70 145 27,5 1.3
10.20300417 3004B 5 25 15-17 60 34 44 96 216 31,5 4.4
10.20300414 3004A 5 25 13-14 60 34 44 96 216 31,5 4.6
10.20300519 3005A 6 30 18-19 66 40 50 110 245 39,5 6.2
10.20300623 3006A 9 45 20-23 72 40 50 120 280 39,5 8.7
10.20300728 3007A 12 60 24-28 75 42 67 140 327 43,5 13
10.20300836 3008B 20 100 33-36 104 60 75 245 555 65 39
10.20300832 3008A 20 100 29-32 104 60 75 245 555 65 40
10.20300944 3009B 27 135 41-44 124 80 95 270 675 79 63
10.20300940 3009A 27 135 37-40 124 80 95 270 675 79 65
Other dimensions and designs on request.


Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
