Talurit

The turnback ferrule system is easy to use. It is quick, safe and has proved itself to be totally reliable. The ferrules are thoroughly specified and very well defined for many different wire rope applications.

The ferrules can be used for fibre core single layer wire ropes, steel core single layer wire ropes, rotation resistant wire ropes and spiral strand ropes.

  • Material: Aluminum
  • Marking: According to standard
  • Standard: EN 13411-3
    except size range
  • Note: See the manufacturer's product data sheet below for guidance on dimension selection.

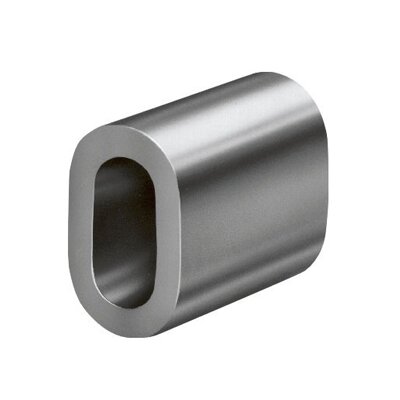

Ferrule T Talurit™
Select a row from the table below, then click the add to cart button
Part Code Ferrule size Length
mm
10.01T025 2,5 12
10.01T03 3 14
10.01T035 3,5 16
10.01T04 4 18
10.01T045 4,5 20
10.01T05 5 23
10.01T06 6 27
10.01T065 6,5 29
10.01T07 7 32
10.01T08 8 36
10.01T09 9 40
10.01T10 10 45
10.01T11 11 50
10.01T12 12 54
10.01T13 13 59
10.01T14 14 63
10.01T16 16 72
10.01T18 18 81
10.01T20 20 90
10.01T22 22 99
10.01T24 24 108
10.01T26 26 117
10.01T28 28 126
10.01T30 30 135
10.01T32 32 144
10.01T34 34 153
10.01T36 36 162
10.01T38 38 171
10.01T40 40 180
10.01T44 44 198
10.01T48 48 216
10.01T01 1 6,5
10.01T015 1,5 8
10.01T02 2 9
10.01T42 42 189
10.01T46 46 207
10.01T50 50 225
Diameter after pressing, see instruction.
Length is after pressing.
