General: Wire rope grip is approved for lifting if assembly is carried out according to instruction manual. The wire rope grip is to be used with 6 and 8 strand steel wire ropes with steel or fibre core with tensile strength up to 1960 N/mm2. Correctly mounted the assembling will stand 80% of the rope's minimum breaking load (MBL).
Design: 2101-2102 casted, 2103-2108 dropforged.

Note: Wire ropes for general applications with fiber or steel core with max strenght of 1960 N/mm2. Not for use with compacted or hammered wire ropes. It is not recommended to use plastic covered ropes for lifting purposes with wire rope clamps.
Follow the fitting instructions in the user manual before use.

  • Finish: 2101-2102 zinc-plating, 2103-2108 hot dip galvanizing.
  • Warning: In case the clamps half-parts tangent each other when tightening the screws, a smaller EUREKA wire clamp shall be used.

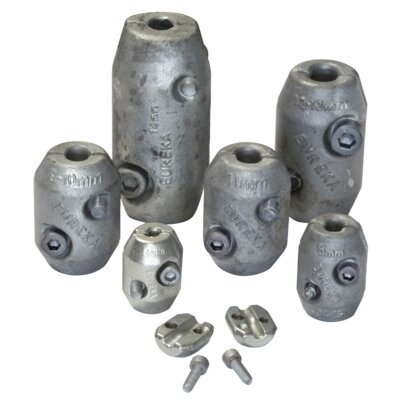

Eureka wirelåse new
Select a row from the table below, then click the add to quote button

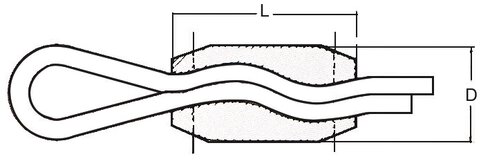

Part Code Code Length
mm
Screw Ø -
mm
Outer Ø
mm
Diameter
mm
No of clamps when lifting Screw Number pcs. Moment Nm Weight
kg/100pc
CAD
10.1732005 2101 27 5 22 4-5 2 2 6 6.5
10.1732006 2102 42 6 28 6 2 2 15 14
10.1732008 2103 50 6 33 8 2 2 18 24
10.1732010 2104 63 8 42 9-10 2 2 30 52
10.1732011 2105 62 8 43 11 2 2 30 52
10.1732013 2106 82 10 48 12-13 2 2 70 80
10.1732014 2107 106 10 50 14 2 2 70 115
10.1732016 2108 100 12 62 15-16 2 2 115 170
