Irongrip

General: Wire rope clamp type, approved for lifting. Requires fewer clamps per fixation, e.g. two wire clamps instead of four, for 16 mm cable. Symmetrical – cannot be wrongly fitted. The clamps ensure fixation of the wire to a degree of at least 90% of the minimum breaking load of the wire in accordance with the current European standard.
Design: Bases of cast steel.

  • Finish: Hot dip galvanized
  • Note: Follow the fitting instructions in the user manual before use. Not for use with compacted or hammered wire ropes.

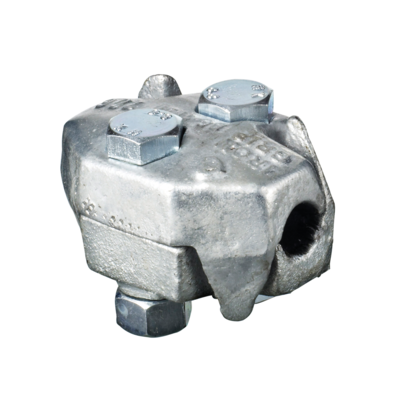

Irongrip BG-100 wire rope grip
Irongrip BG-100 wire rope grip
Select a row from the table below, then click the add to cart button
Part Code Rope diameter
mm
Thread No. of clamps when lifting* Moment
Nm
Weight
kg/100pc
10.17BG0600 5-6 M6 2 9,5 9
10.17BG0800 6.5-8 M6 2 9,5 12
10.17BG1000 8.5-10 M8 2 22 20
10.17BG1200 11-12.5 M10 2 44 39
10.17BG1600 13-16 M12 2 75 72
10.17BG2000 17-20 M14 2 120 120
10.17BG2500 21-25 M18 2 260 280
10.17BG3400 26-34 M20 2 350 770
