Duplex Clip SS

  • Not for lifting
General: Stainless Duplex Clip double type with 2 screws.


  • Material:  Stainless acidproof steel AISI 316.
  • Finish: Polished.
2301_new
2301_new
NIRO-DUPLEX-KLEMME
Select a row from the table below, then click the add to quote button

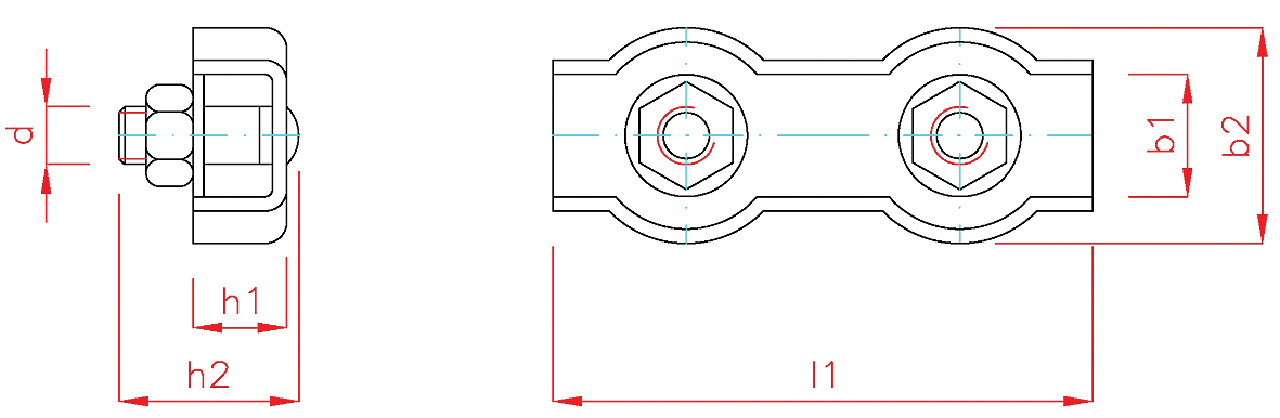

Part Code Diameter
mm		 B1
mm		 B2
mm		 D
mm		 h1
mm		 h2
mm		 L1
mm		 CAD
10.16MS030502 2 4 12 M 4 5 14 30
10.16MS030503 3 6 14 M 4 7 14 35
10.16MS030504 4 8 18 M 5 7 18 40
10.16MS030505 5 10 20 M 5 8 18 50
10.16MS030506 6 12 24 M 6 9 23 60
10.16MS030508 8 17 30 M 8 13 25 75
10.16MS030510 10 21 35 M 10 16 32 95

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
