Powertex
  • Not for lifting

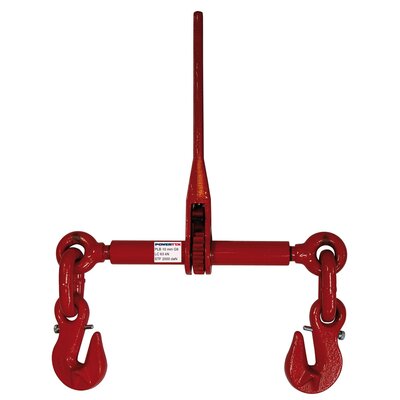

POWERTEX Load binders PLB are made of strong Grade 80 quality having safety latch shortening hooks at each end.

  • Safe – Powertex Load binders are strong and reliant and comply to EN12195-3
  • Safe – PLB Load binder is individually proof load tested 1,25 x LC before delivery
  • Each load binder is lubricated and function tested before delivery to assure efficiency at use
  • Steel casted ratchet handle optimized for a standard hand force of 50 daN
  • Forge shaped tube ends forms a light and strong center hub
  • The closed body design protects the threads from damage and at the same time prevent dirt from entering into the center body
  • Hot forged quenched and tempered eye bolts and hooks
  • Shortening hooks are equipped with latches to prevent unintentional unhooking
  • Red powder painted for good corrosion protection and quick identification as Powertex original equipment
  • Intended to be used with Powertex lashing chain assembly
  • Each Load binder marked with important Warning instructions tag
  • Multilanguage user manuals included
  • Material: High strength all steel construction
  • Marking: According to standard, POWERTEX, Size, Grade , lashing capacity , STF, “Not for lifting”, traceability marking
  • Temperature range: -40ºC up to + 200°C.
  • Finish: Powder painted in Powertex red
  • Standard: EN 12195-3
  • Warning: Not approved for lifting.
  • Safety factor: 2:1
  • Grade: 8

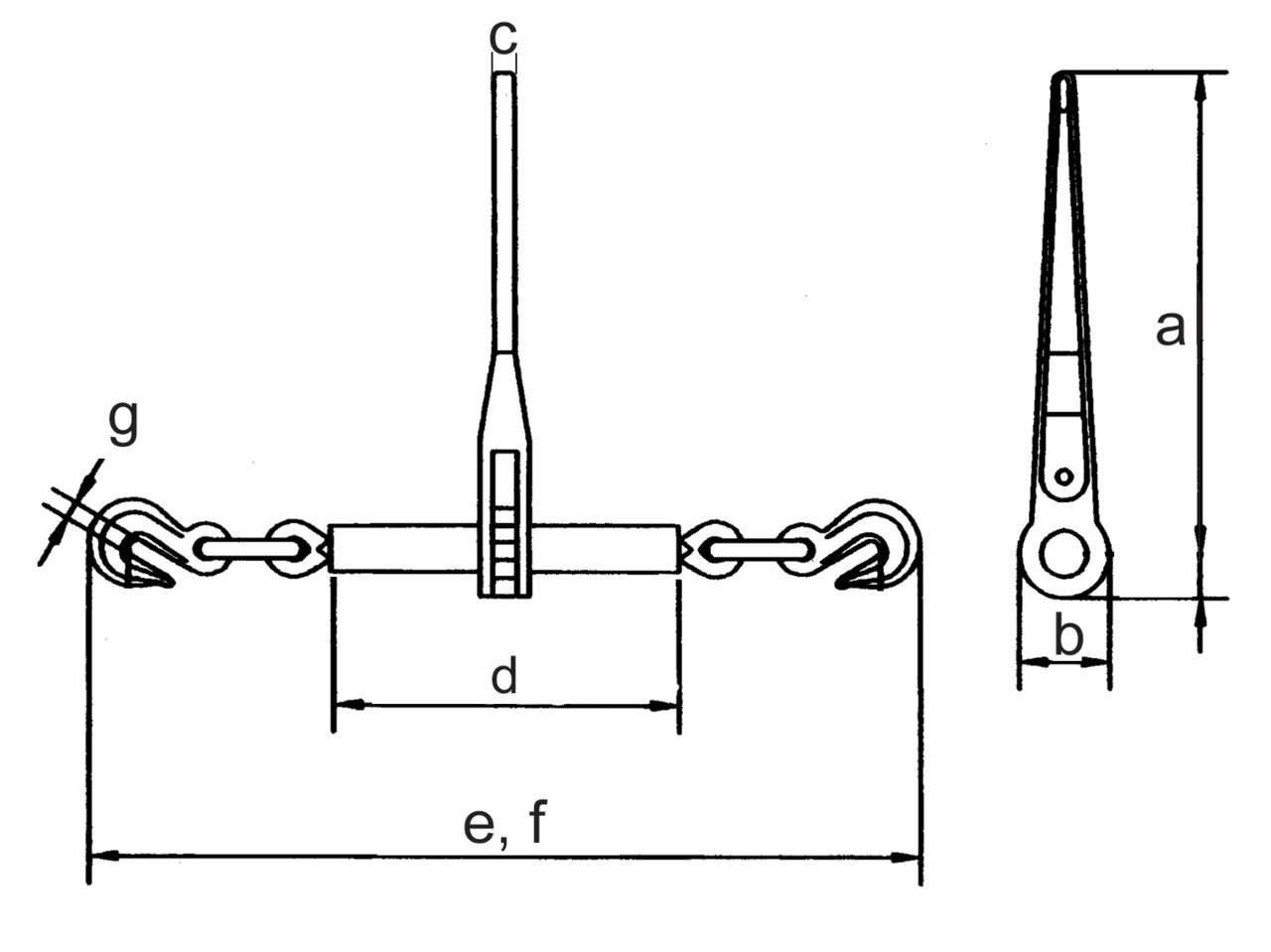

Powertex loadbinder drawing
Select a row from the table below, then click the add to cart button
Part Code LC
kN
MBL
ton
STF
daN
Take up
mm
Chain size
mm
Proof load
ton
A
mm
B
mm
C
mm
D
mm
e
mm
f
mm
g
mm
Weight
kg
14.10PLB08L 40 8,1 2 000 160 8 5 355 66 16 252 780 620 10,5 4,5
14.10PLB10L 63 12,8 2 000 162 10 7,9 355 66 16 252 825 663 12 5,4
14.10PLB13L 100 20,3 2 500 150 13 12,5 355 66 16 252 925 775 15 7,7
14.10PLB16L 160 32,6 2 500 151 16 20 355 66 16 252 984 833 19 10,2

info / downloads
