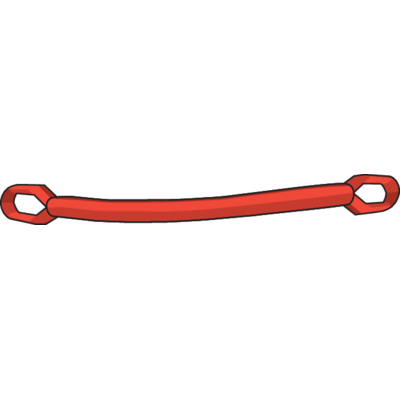

Roundsling Eye-Eye RSS-sling

Design: Round sling covered with extra protection sleeve and provided with strengthen eye in each end.


Stretch with working load: 2-3%.

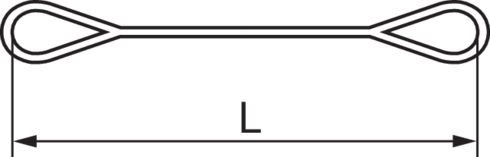

Length tolerance: Nominal length ±2%.

Show more

Show table
Product number:

Design: Round sling covered with extra protection sleeve and provided with strengthen eye in each end.


Stretch with working load: 2-3%.

Length tolerance: Nominal length ±2%.

  • Material: Polyester. Resistant to most acids but not strong alkalizes.
  • Marking: According to standard, The slings are provided with a blue label with manufacturer’s symbol, working load limit (WLL), length, CE marking and a label with handling instruction.
  • Temperature range: app. -40° - +100°C.
  • Standard: EN 1492-2
  • Safety factor: 7:1

Roundsling polyester

EN 1492-1

Safety Factor 7:1

Straight pull Basket hitch Choke hitch Basket hitch
andlos-rakt andlos-uform andlos-snarat vinkel
0°−45° 45°−60°
Color Working load limit (WLL) in tons
Purple 1,0 2,0 0,8 1,4 1,0
Green 2,0 4,0 1,6 2,8 2,0
Yellow 3,0 6,0 2,4 4,2 3,0
Grey 4,0 8,0 3,2 5,6 4,0
Red 5,0 10,0 4,0 7,0 5,0
Brown 6,0 12,0 4,8 8,4 6,0
Blue 8,0 16,0 6,4 11,2 8,0
Orange 10,0 20,0 8,0 14,0 10,0
Orange 12,0 24,0 9,6 16,8 12,00
Orange 15,0 30,0 12,0 21,0 15,0
Orange 20,0 40,0 16,0 28,0 20,0
Orange 25,0 50,0 20,0 35,0 25,0
Orange 30,0 60,0 24,0 42,0 30,0
Orange 35,0 70,0 28,0 49,0 35,0
Orange 40,0 80,0 32,0 56,0 40,0
Orange 50,0 100,0 40,0 70,0 50,0
Orange 60,0 120,0 48,0 84,0 60,0
Orange 70,0 140,0 56,0 98,0 70,0
Orange 80,0 160,0 64,0 112,0 80,0
Orange 85,0 170,0 68,0 119,0 85,0
Orange 90,0 180,0 72,0 126,0 90,0
Orange 100,0 200,0 80,0 140,0 100,0
Orange 125,0 250,0 100,0 175,0 125,0
Orange 150,0 300,0 120,0 210,0 150,0
Orange 175,0 350,0 140,0 245,0 175,0
Orange 180,0 360,0 144,0 252,0 180,0
Orange 200,0 400,0 160,0 280,0 200,0
Factor (KL) 1 2 0,8 1,4 1
