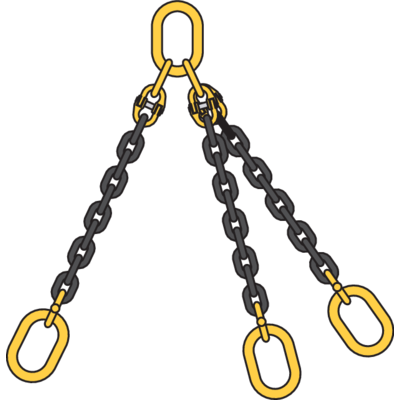

Chain Sling KL-380 Grade 8

Design: Master link in one end and master link in each leg.

Dimension: Ø 6–20 mm,  other dimensions on request.

Show more

Show table
Log in to webshop
Product number:

Design: Master link in one end and master link in each leg.

Dimension: Ø 6–20 mm,  other dimensions on request.

  • Material: Alloy steel grade 8.
  • Marking: According to standard, CE-marked
  • Standard: EN 818-4
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 8
Filters

Show more filters

After click on the “Show table” button, you will see the table with all technical details about the product.

Chain Sling Grade 8

EN 818-4

Safety Factor 4:1

Chain ø 1-part 2-part 3-4-part Endless
Straight pull Choke hitch Basket hitch 0°−45° 45°−60° 0°−45° 45°−60° Straight pull Choke hitch Basket hitch
mm Working load limit (WLL) in tons
6 1,12 0,90 2,24 1,60 1,12 2,36 1,70 2,24 1,80 4,48
7 1,50 1,20 3,00 2,12 1,50 3,15 2,24 3,00 2,50 6,00
8 2,00 1,60 4,00 2,80 2,00 4,25 3,00 4,00 3,15 8,00
10 3,15 2,50 6,30 4,25 3,15 6,70 4,75 6,30 5,00 12,6
13 5,30 4,25 10,6 7,50 5,30 11,20 8,00 10,60 8,50 21,20
16 8,00 6,30 16,00 11,20 8,00 17,00 11,80 16,00 12,50 32,00
19 11,20 9,00 22,40 16,00 11,20 23,60 17,00 22,40 18,00 44,80
20 12,50 10,00 25,00 17,00 12,50 26,50 19,00 26,00 20,00 50,00
22 15,00 12,00 30,00 21,20 15,00 31,50 22,40 30,00 23,60 60,00
26 21,20 17,00 42,40 30,00 21,20 45,00 31,50 42,40 33,50 84,80
32 31,50 25,20 63,00 45,00 31,50 67,00 47,50 63,00 50,00 126,00
Factor (KL) 1 0,8 2 1,4 1 2,1 1,5 2 1,6 4
