Trolley

Svero

Low-built block trolley for hanging e.g. chain blocks and wire hoists. The trolley can be supplied with a load of 0.5 tons up to 5 tons. The trolley has corner protection which prevents the trolley from detaching from the beam and ball bearing wheels. It is easily adjustable by the left- and right-handed carrier bracket and fits most brands of hoists.

  • Marking: WLL, name plate and CE.
  • Finish: Black painted.
SVERO illu 20 Low-built block trolley
E x available
SVERO illu 20
E x available

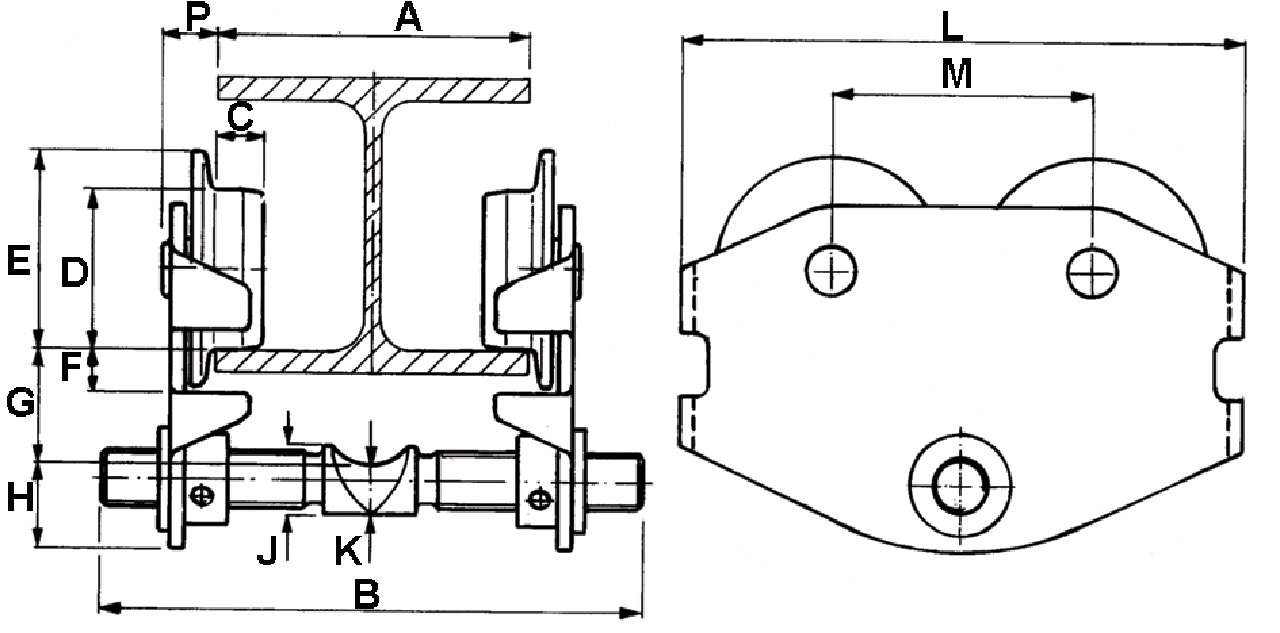

SVERO 20 dwg
Select a row from the table below, then click the add to cart button
Part Code WLL
ton		 Type Min curve r
m		 A min-max B
mm		 C
mm		 Ø D
mm		 E
mm		 F
mm		 G
mm		 H
mm		 Ø J
mm		 Ø K
mm		 L
mm		 M
mm		 P
mm		 Weight
kg		 CAD
16.0520123A 0.5 20123A 1,0 46-160 208 18 62 77 18 45 33 25 19 216 100 24 6
16.0520124A 0.5 20124A 1 161-280 208 18 62 77 18 45 33 25 19 216 100 24 6.4
16.0520143A 1 20143A 1,25 50-160 212 20 70 85 20 51 40 32 24 264 130 26 9.4
16.0520144A 1 20144A 1,25 161-280 212 20 70 85 20 51 40 32 24 264 130 26 10.7
16.0520163A 2 20163A 1,80 64-180 248 24 100 118 25 63 51 40 32 345 165 30 19
16.0520164A 2 20164A 1,80 181-300 248 24 100 118 25 63 51 40 32 345 165 30 21
16.0520173A 3 20173A 2,20 74-180 262 28 114 137 31 78 57 46 35 384 180 35 31.5
16.0520174A 3 20174A 2,20 181-300 262 28 114 137 31 78 57 46 35 384 180 35 34
16.0520193A 5 20193A 2,50 82-180 270 34 140 165 34 92 64 56 42 455 215 40 55
16.0520194A 5 20194A 2,50 181-300 270 34 140 165 34 92 64 56 42 455 215 40 58

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
