Haklift

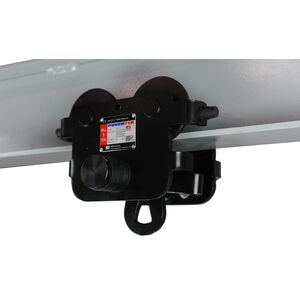

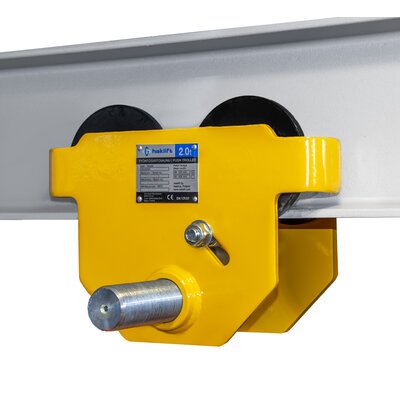

Push trolley for IPE and T beams. The wheels are equipped with duration lubricated ball bearings. The hoist or lifter can be attached directly to the trolley eye with a hook or a shackle. Test certificate and Declaration of Conformity enclosed with each product.



  • Material: Steel
  • Marking: According to standard, CE-marked
  • Finish: Painted, yellow
  • Standard: EN 13157
Select a row from the table below, then click the add to cart button

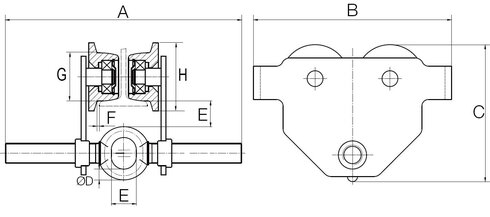

Part Code WLL Beam width
mm
Min. Radius Curve
m
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
Weight
16.05PT005 0,5 55-220 0,5 287 198 158 12,5 40 ~3 55 80 5
16.05PT010 1 58-220 0,7 300 238 183 17 31 ~3 68 96 8,8
