General:

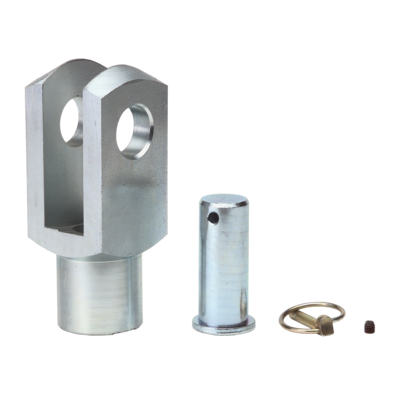

- Clevis eye for pulling cylinders, 11 ton
- Complete with safety Pin
- Suitable for use with webbing slings

Additional information:
- To be ordered separately, 2 pieces per cylinder

Product Image 1

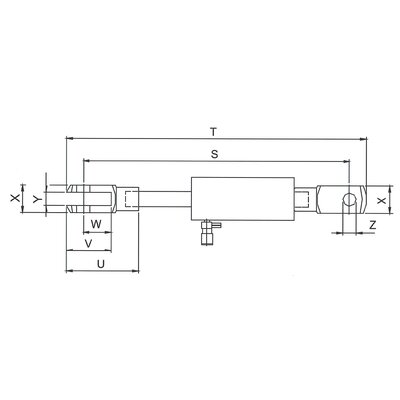

Technical Drawing Of Pulling Cylinder With Clevis Eyes_1280x928px_E_NR-1996
Select a row from the table below, then click the add to cart button
Part Code Model S max.
mm
T
mm max.
U
mm
V
mm
W
mm
X
mm
Y
mm
Z
mm
16.40HOL100181056 HPJ 11 S 15 650 730 160 100 60 60 30 30
16.40HOL100181057 HPJ 30 S 15 828 916 188 116 72 70 36 35
