Haklift

can be used normally as a crane scale or for example to measure pulling power. LCD screen and usage with AA batteries, operating time at one charge is over 200 h. Functions: reset, taring, hold, automatic power off, battery life display, overload warning, switching measurement unit. Can be equipped with shacke, hook etc. Delivery does not contain an individual calibration certificate.



  • Material: 3t aluminum | 5t & 10t Stainless steel | 20t alloy Steel
  • Marking: CE-marked
  • Note: Shackle not included in delivery
  • Safety factor: 4:1
Select a row from the table below, then click the add to cart button
Part Code WLL
ton
Length
mm
Height
mm
Width
mm
Hole diameter
mm
Resolution
kg

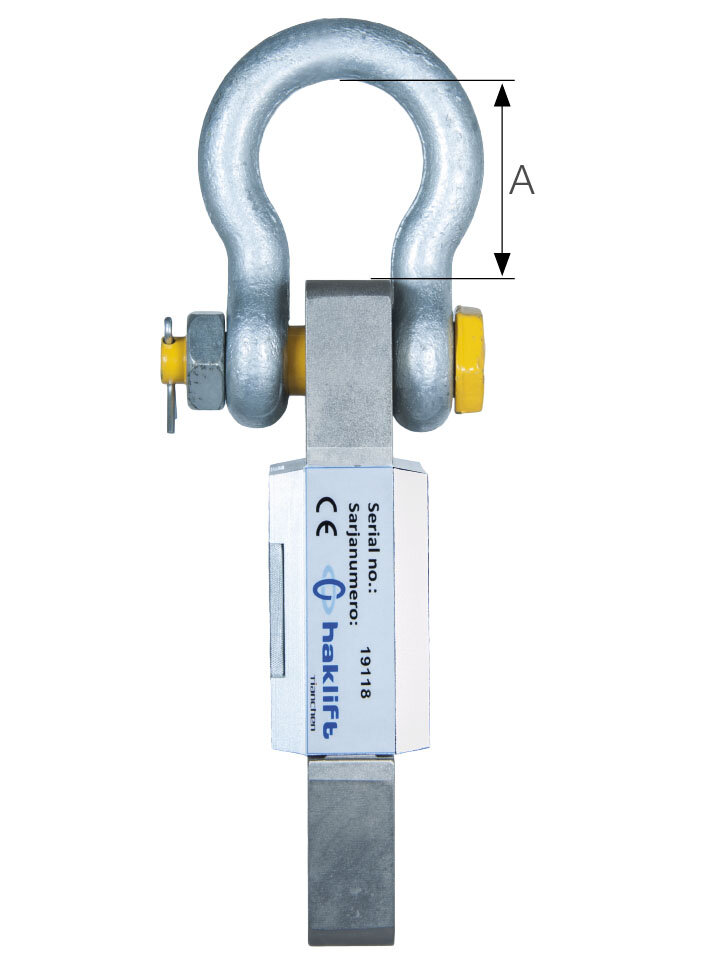

A
mm
Weight
kg
16.50KV3KI 3 30 230 90 27 1 93 1,7
16.50KV5KI 5 30 230 90 32 2 140 3,4
16.50KV10KI 10 48 280 90 38 5 52 6,7
16.50KV20KI 20 60 350 90 50 10 67 9

SUITABLE SHACKLE

KV3KI SAK47PLBP
KV5KI SAK65PLBP
KV10KI SAK120PLBP
KV20KI SAK250PLBP
