Powertex
  • Cr6+ Free

POWERTEX PPT-S2 is a high quality, durable low built push trolley that is easy to install on horizontal beams and rails.

The trolleys can be used for I-beams with plane flanges (such as IPE, HEA or HEB types) or beams with sloping flanges (such as INP-beams).

The trolley can easily be positioned along the beam by pushing or pulling thanks to high quality steel wheels with bearings.

Features:

  • Safe - All POWERTEX trolleys are proof load tested 1,5 x WLL
  • Mechanical stops integrated in the design to prevent derailing
  • Equipped with connection plate with eye to hoist’s upper hook or direct connection
  • Connection plate can be turned 90 degrees to allow direct connection to POWERTEX S2 hoists without need of intermediate hook/eye
  • Rubber bumpers to absorb shock loads on impact to rail ending
  • Equipped with RFID for quick registration and maintenance
  • Marked with QR code to allow access to user manuals at any time
  • PPT-S2 is easy to mount and dismount on a horizontal rail or beam
  • The 3 piece design makes installation quick and ergonomically
  • The shaft is easily locked using the lock plate (No need to use large castle nut nor collar pins)
  • Wheel shafts are robotic welded for high quality weld seams
  • Large steel wheels equipped with double sided sealed bearings that do not need maintenance
  • Powder painted side panels gives a nice lasting finish
  • Fits most types of beam profiles and most brands of lifting blocks and electric hoists
  • Longer shafts for wider beams can be supplied from stock in EU
  • Can be turned into Blackline version BT by adding the included grey label over the shiny nameplate.

Blackline BT products are suitable to be used in theatres and entertainment industry.

  • Marking: According to standard, CE-marked, WLL, beam width, individual serial number
  • Temperature range: -10°C up to +50°C.
  • Finish: Black powder painted (Matt finish)
  • Standard: EN 13157
  • Safety factor: 4:1
RFID equipped
Select a row from the table below, then click the add to quote button

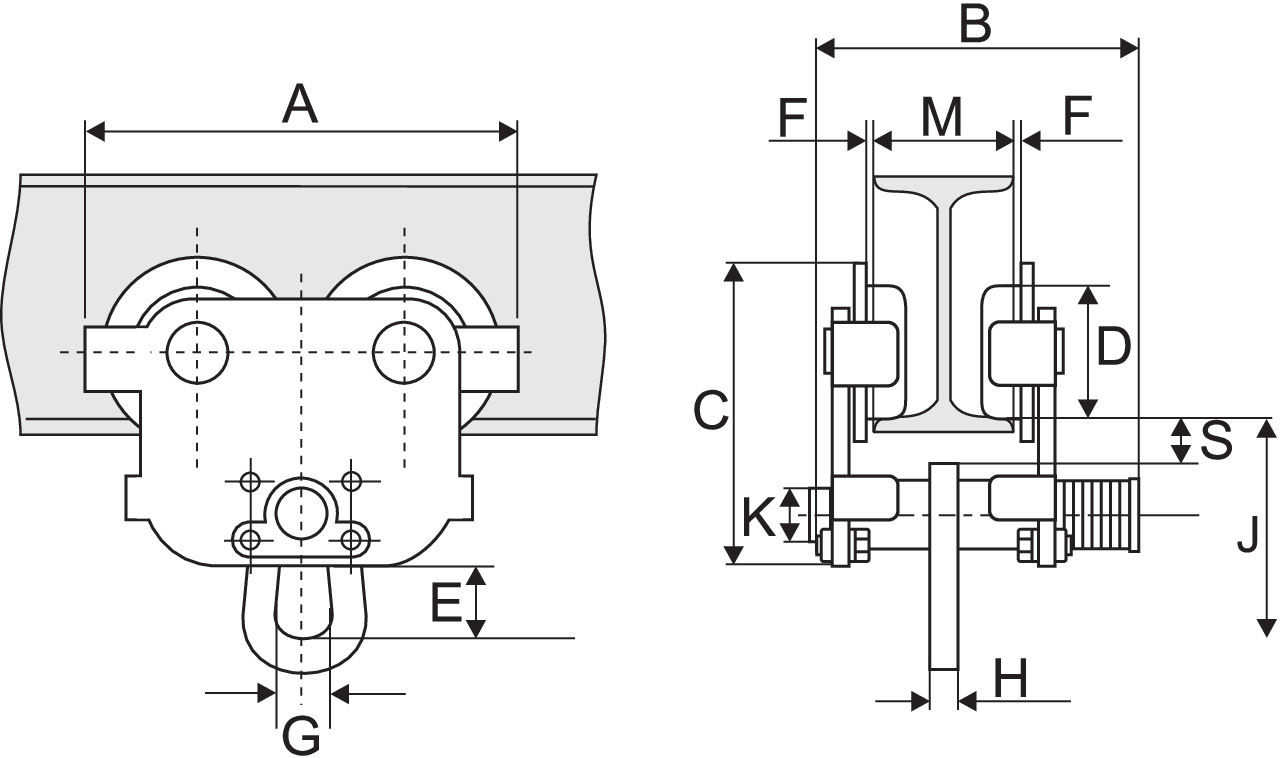

Part Code WLL
ton
Model Flange width M
mm
Minimum radius
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
K
mm
S
mm
Weight
kg
CAD
16.05PPTS20025 0.25 PPT-S2 50-152 800 188 208 137 50 29 1 – 1,5 28 6 104 20 27 4.6
16.05PPTS2005 0.5 PPT-S2 50-135 800 205 198 150 55 30 1,5 – 2 28 8 111 28 27 6.8
16.05PPTS2005B 0.5 PPT-S2 130-215 800 242 211 174 68 30 1,5 – 2 32 10 118 32 28 6.8
16.05PPTS2005C 0.5 PPT-S2 215-300 800 270 238 194 80 49 1,5 – 2 40 12 147 36 27 6.8
16.05PPTS2010 1 PPT-S2 55-140 1,000 325 246 234 100 60 2-3 49 14 177 44 29 11.2
16.05PPTS2010B 1 PPT-S2 140-215 1,000 370 280 234 110 79 2-3 59 16 219 55 29 11.2
16.05PPTS2010C 1 PPT-S2 215-300 1,000 205 278 267 55 30 1,5 – 2 28 8 111 28 27 11.2
16.05PPTS2020 2 PPT-S2 65-155 1,100 205 363 150 55 30 1,5 – 2 28 8 111 28 27 16.9
16.05PPTS2020B 2 PPT-S2 150-230 1,100 242 286 150 68 30 1,5 – 2 32 10 118 32 28 16.9
16.05PPTS2020C 2 PPT-S2 230-300 1,100 242 371 174 68 30 1,5 – 2 32 10 118 32 28 16.9
16.05PPTS2030 3 PPT-S2 90-160 1,300 270 313 174 80 49 1,5 – 2 40 12 147 36 27 28.6
16.05PPTS2030B 3 PPT-S2 160-230 1,300 270 383 194 80 49 1,5 – 2 40 12 147 36 27 28.6
16.05PPTS2030C 3 PPT-S2 230-300 1,300 325 316 194 100 60 2 – 3 49 14 177 44 29 28.6
16.05PPTS2050 5 PPT-S2 90-180 1,500 325 386 234 100 60 2 – 3 49 14 177 44 29 44.8
16.05PPTS2050B 5 PPT-S2 180-230 1,500 370 330 267 110 79 2 – 3 59 16 219 55 29 44.8
16.05PPTS2050C 5 PPT-S2 230-300 1,500 370 330 267 110 79 2 – 3 59 16 219 55 29 44.8

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download

Manuals / info / downloads
