General: Our range of lightweight portable gantries brings a new dimension to the professional lifting market. The portability, safe manual assembly and rigidity of the structure mean that it opens up a whole new market for the use of gantries with lifting applications such as confined space, rooftop, HVAC, lift-shaft, waste water, clean environments (food, hospitals etc.) and increasing availability from the hire industry.
Design: The gantry crane consists of four individual elements that can be assembled and disassembled in a few minutes. The height is adjustable so that the crane can also be placed in rooms with low ceilings.
Areas of applications:
- Moving and lifting of heavy loads.
- Building motors and driving applications in and out.
- Repair and maintenance of pumps.
- Loading trucks and trailers on and off.
- For use in workshops and on-site.

  • Note: Can be delivered with capacity up to 3 tons, as well as custom-made solutions.
Gantry_motor
Feltes model Standard movable under load_in use dwg

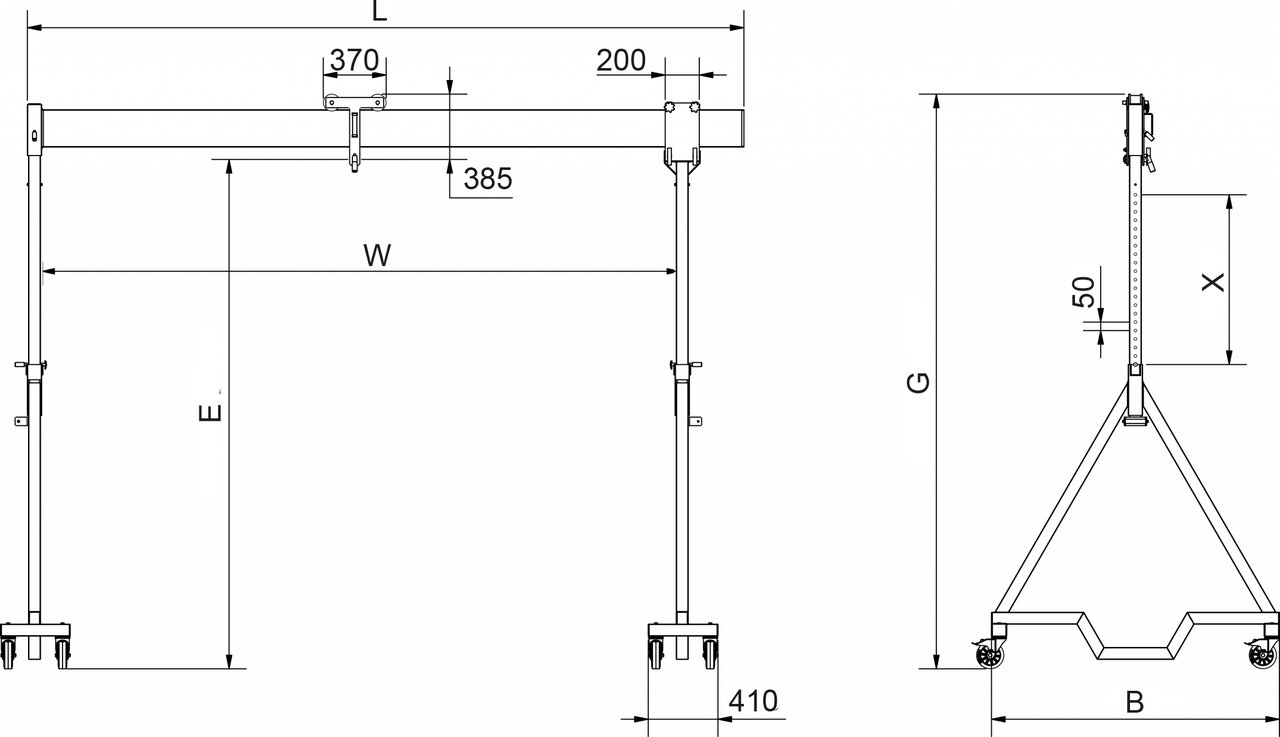

Feltes model Standard movable under load dwg
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
Model B
mm
G
mm
E
mm
L
mm
W
mm
X (mm) Weight
kg
CAD
13.10121001 1 Mini 1,250 2,385 1500-2000 4,230 4,000 500 120
13.10122001 1 Standard 1,700 3,385 2000-3000 4,230 4,000 1,000 150
13.10123001 1 Maxi 2,000 3,885 2250-3500 4,230 4,000 1,250 170
