General: Welded Master Link designed for 3-4 legs Wire Rope and Chain Slings.
At least 25% greater WLL than traditional G80 products. Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Proof Load tested at 2.5 times the WLL with certification for each batch manufactured.

  • Material: Quenched and Tempered Alloy Steel
  • Marking: Each link is marked with batch number that links to the test certificate with full tracebility to raw materials.
  • Temperature range: Tempering temperature at a minimum of 400°C.
  • Finish: Blue painted.
  • Standard: EN 1677-4
  • Safety factor: 4:1.
  • Grade: 10
Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button

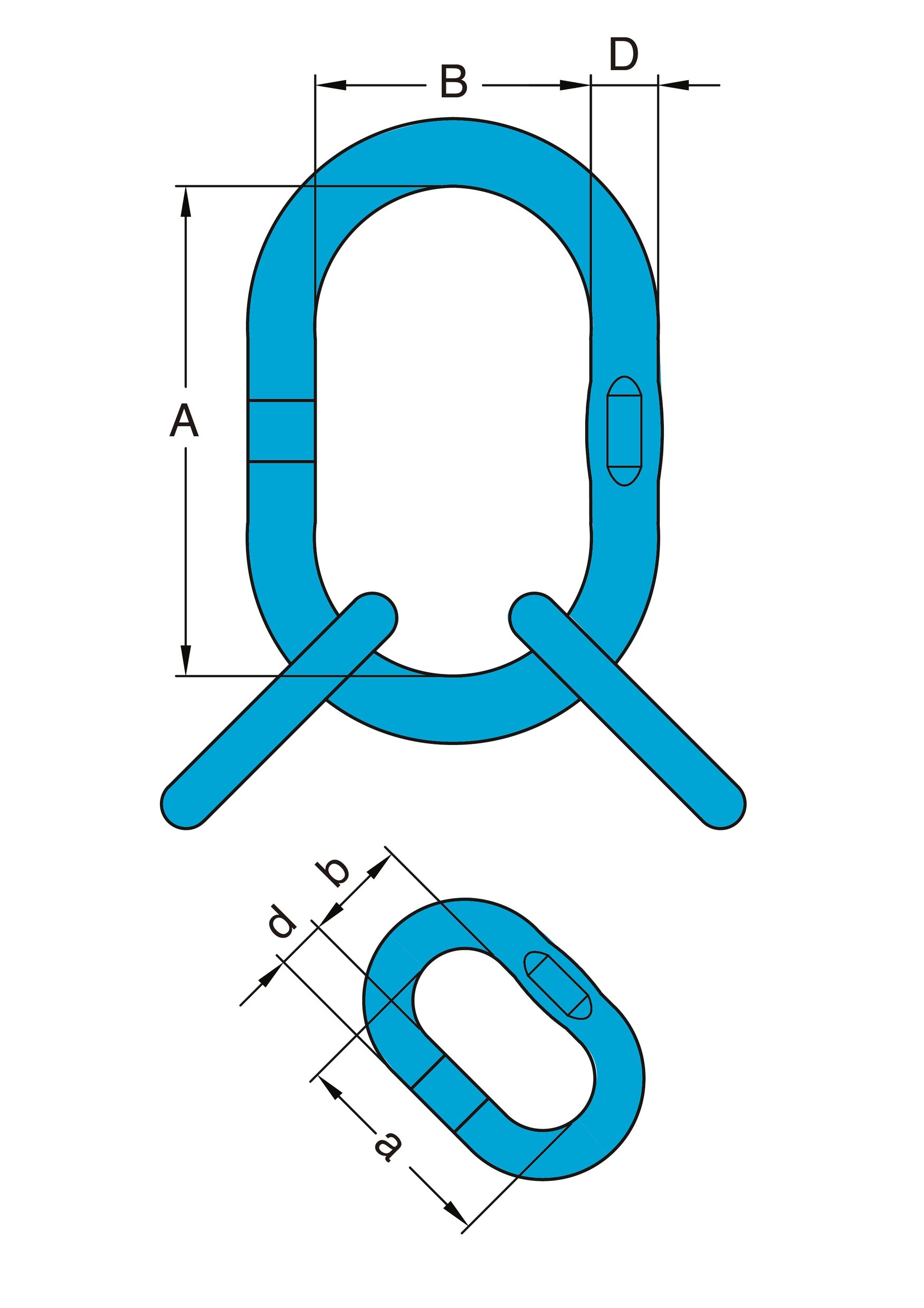

Art No Proof Load (kN) For grade 100 Chain (mm) 3 and 4-leg WLL b 0-45° DIN 15401NO B (mm) A (mm) D (mm) d (mm) b (mm) a (mm) Weight
kg
11.02X-006W-19 103 6 4,2 6 160 95 19 13 54 25 1.5
11.02X-006W-22 201 7,8 8,2 10 170 105 22 16 70 34 2.3
11.02X-006W-28 262 10 10,7 10 190 110 28 19 85 40 4.1
11.02X-006W-32 385 13 15,7 12 230 130 32 22 115 50 6.6
11.02X-006W-36 544 16 22,2 20 275 150 36 28 140 65 10.9
