General: At least 25% greater WLL than traditional G80 products.
Testing according to DIN PAS 1061 and ASTM A952/A 952M.
Proof Load tested at 2.5 times the WLL with certification for each batch.
Fatigue rated to 20,000 cycles at 1.5 times the WLL.
Enables full WLL while in use, thanks to supporting wings which prevent chain link deformation.
Extra safe pin.

  • Material: Quenched and Tempered Alloy Steel.
  • Marking: According to standard, Size, grade, manufacturer ID, traceability.
  • Temperature range: -40ºC up to +200°C (without reduction in WLL).
  • Finish: Blue painted.
  • Standard: EN 1677-1
  • Note: Not for use with Omega Link.
  • Safety factor: 4:1
  • Grade: 10

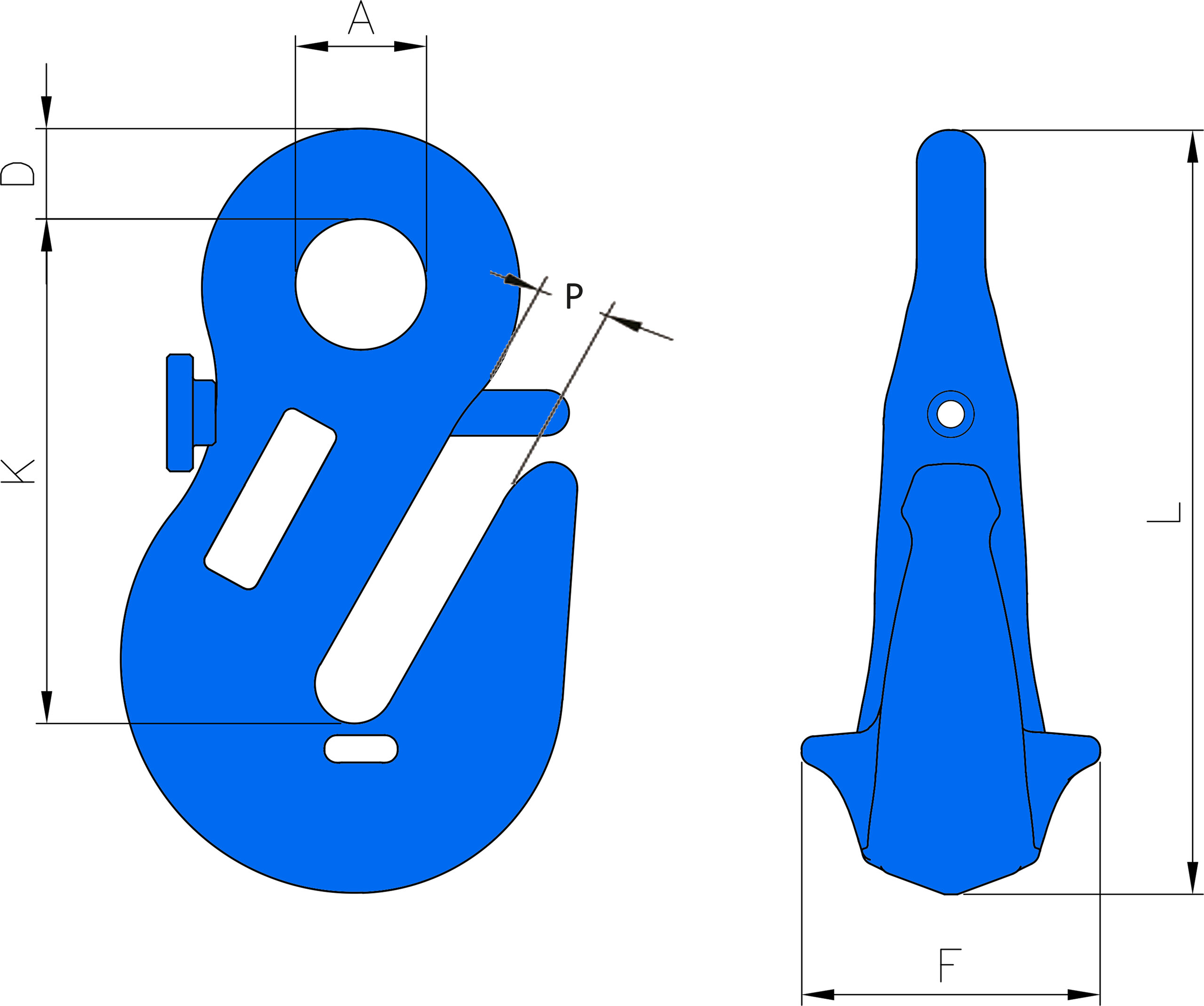

Product Picture 1
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
For grade 100 Chain
mm
A
mm
D
mm
F
mm
K
mm
L
mm
P
mm
Weight
kg
CAD
11.21X-0411-07 2.5 7, 8 16 11 35 65 98 10 0.4
11.21X-0411-10 4 10 20 14 46 78 118 12 0.7
11.21X-0411-13 6.7 13 26 18 47 113 169 18 1.7
