Terrier

General:
Universal screw clamp for vertical and horizontal lifting and transporting of a large variety of steel structures. Can also be attached upside down and be used as a (temporary) lifting point.
Model TSCC : standard screw clamp.
Model TSCC-W: With enlarged jaw opening.

Features:

  • Special universal design ensures multi-purpose application of lifting steel structures.
  • Fitted with a moveable cam on the thread spindle which provides a powerful clamping force on the workpiece.
  • Equipped with a safety screw spindle mechanism, ensuring the clamp does not slip when lifting force is applied.
  • Lightweight design for easy handling.
  • Tough quality heavy duty drop forged body.
  • Forged alloy components, where required.
  • Maintenance-friendly, easy to exchange parts which are available upon request.
  • No minimal WLL needed.
  • Marking: Type, serial number, WLL, Jaw opening and CE marking.
  • Temperature range: -40°C up to +100°C.
  • Warning: Hardness level of the material surface may not exceed 37 HrC (345 Hb, 1166 N/mm2)
Select a row from the table below, then click the add to quote button
Part Code Code WLL
t
ton

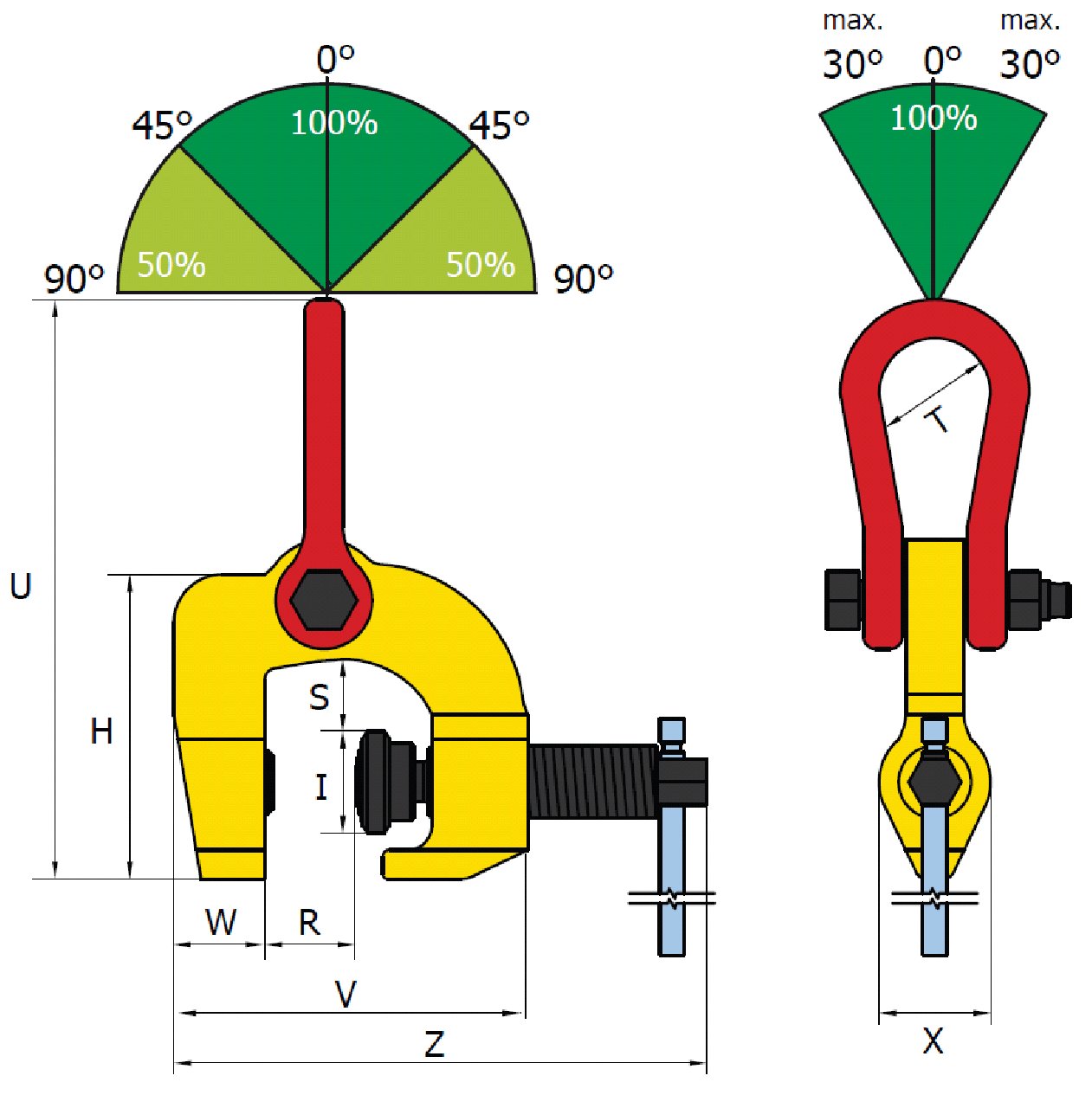

Jaw opening (mm) S (mm) I
mm
W
mm
V (mm) Z (mm) U (mm) H
mm
T
mm
X (mm) Weight
kg
CAD
16.01900500 0.5 TSCC 0.5 0-35 18 27.5 26 108 158 211 82 25 27 1
16.01862710 1 TSCC 1 0-40 29 42 40 150 220 232 140 46 46 3.3
16.01862711 1 TSCC-W 1 50-100 88 42 50 225 258 273 190 45 46 6.3
16.01862731 3 TSCC-W 3 25-75 50 49 60 215 250 291 191 50 54 7.8
16.01903000 3 TSCC 3 0-60 38 50 46 190 280 278 184 50 60 7.8
16.01906000 6 TSCC 6 0-100 60 63 70 296 446 390 249 100 75 22
