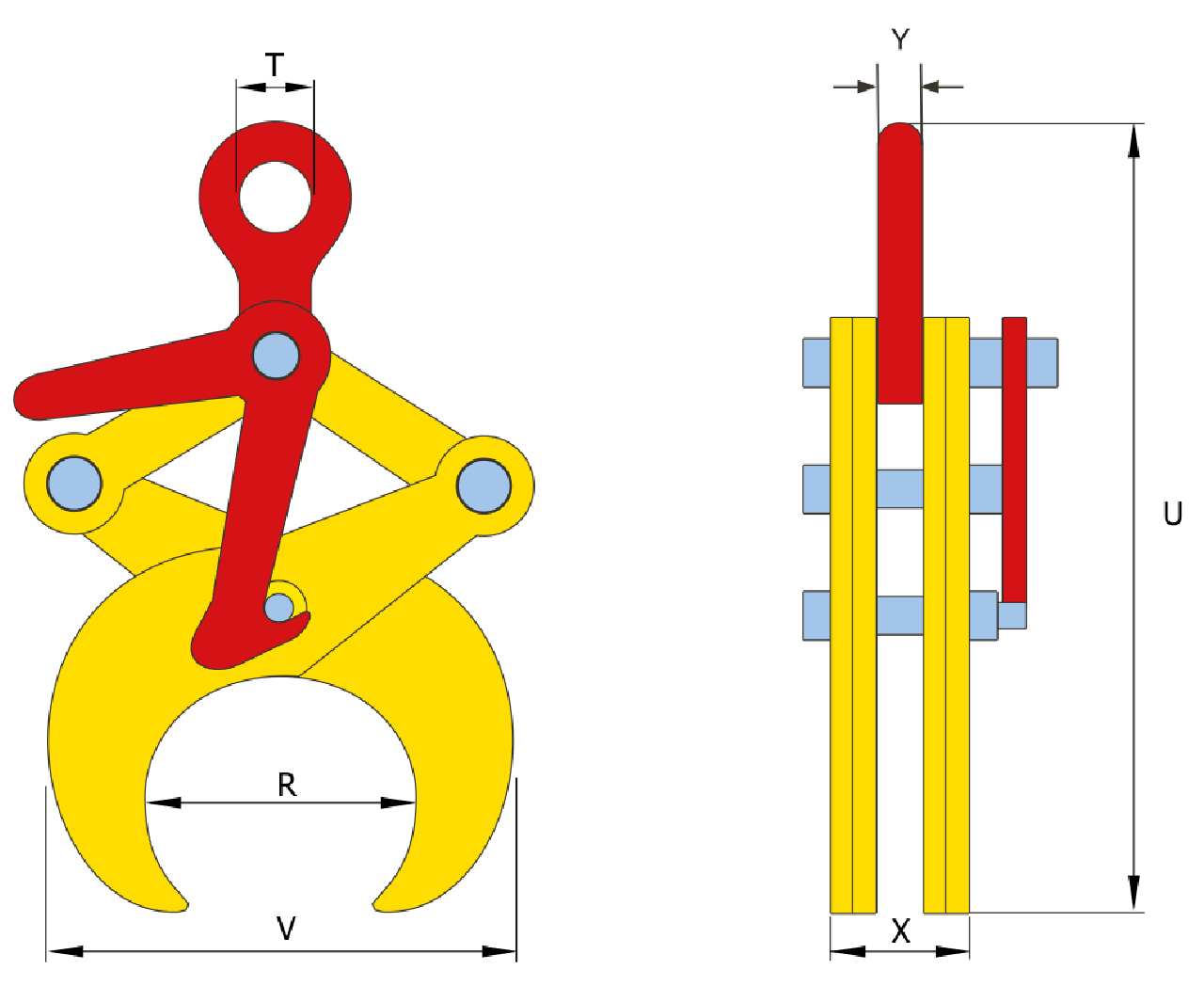

Clamp for horizontal lifting and transporting of tubes, pipes, tube bundles, rolls and other solid round materials. The clamp is locked in the open position . To perform lifting, the operator must activate the handle and hold it up while the force on the lifting eye is going upwards . When laying down the load, the clamp automatically locks itself open.
- Lightweight design and easy to use.
- Tough quality body.
- Can be delivered with protection to avoid damaging of the load.
- Higher WLL or jaw openings available upon request.
- Marking: Type, serial number, WLL, Jaw opening and CE marking.
- Temperature range: - 40°C to + 100°C.
- Finish: Yellow painted.
- Standard: EN 13155
- Safety factor: 5:1
