Terrier

For horizontal lifting and transporting of steel plates and other non-deflecting materials. The FHX-V lifting clamp has a spring attached to the cam assembly. The spring makes sure that the clamp will/can be closed and fixed on any desired spot.
One of the major advantages of this clamp is that only one person is able to place the clamps and to guide the hoist. FHX-V lifting clamps are only sold in pairs (or multiple pairs).

Features:

  • Pre-tensioned spring cam feature for easy single operator usage
  • Clamp can be closed and fixed on any desired spot
  • Compact & lightweight design for easy handling
  • Tough quality heavy duty welded body
  • Marking: According to standard, CE-marked, Type, serial number, WLL, Jaw opening.
  • Temperature range: - 40°C to +100°C.
  • Standard: EN 13155
  • Note: Must always be used in pairs (or multiple pairs)
  • Warning: Hardness level of the material surface may not exceed 37 HrC (345 Hb, 1166 N/mm2)
Select a row from the table below, then click the add to quote button

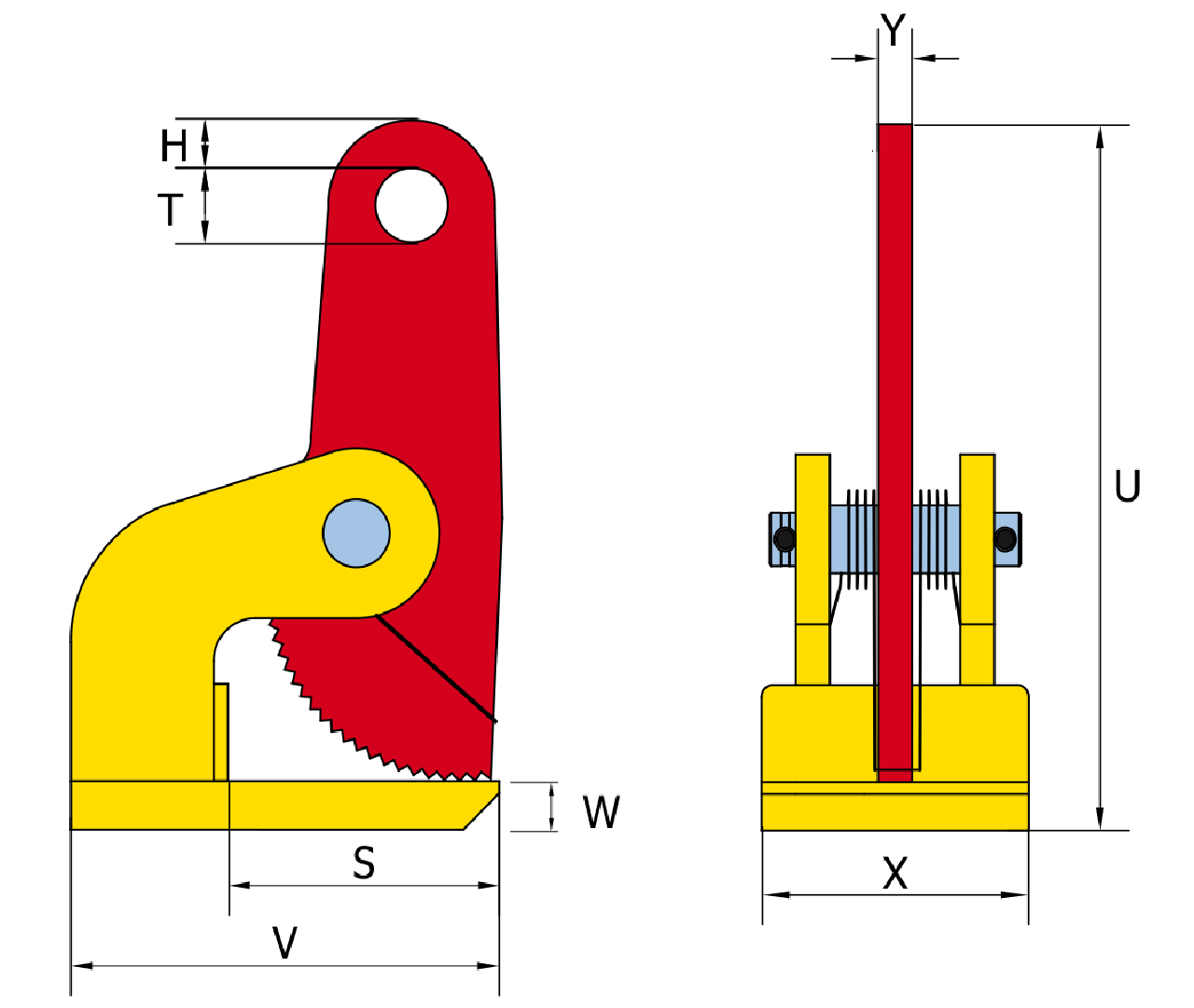

Part Code Code WLL ton/pair Jaw opening
mm
V
mm
S
mm
W
mm
T
mm
H
mm
U
mm
X
mm
Y
mm
Weight
kg
CAD
16.01953101 1 FHX-V 1 0-35 140 99 10 26.5 12 188 85 15 3
16.01953201 2 FHX-V 2 0-60 180 114 15 30.5 19 286 125 16 8
16.01953301 3 FHX-V 3 0-60 200 125 20 30.5 19 302 140 20 12.2
16.01953401 4 FHX-V 4 0-60 220 139 30 30.5 19 316 165 20 17
16.01953601 6 FHX-V 6 0-60 220 139 30 30.5 19 316 165 20 17

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
