Terrier

General:
Beam clamp for horizontal lifting and transporting of steel beams and structures. Can also be attached upside down and be used as a (temporary) lifting point. Various models available:

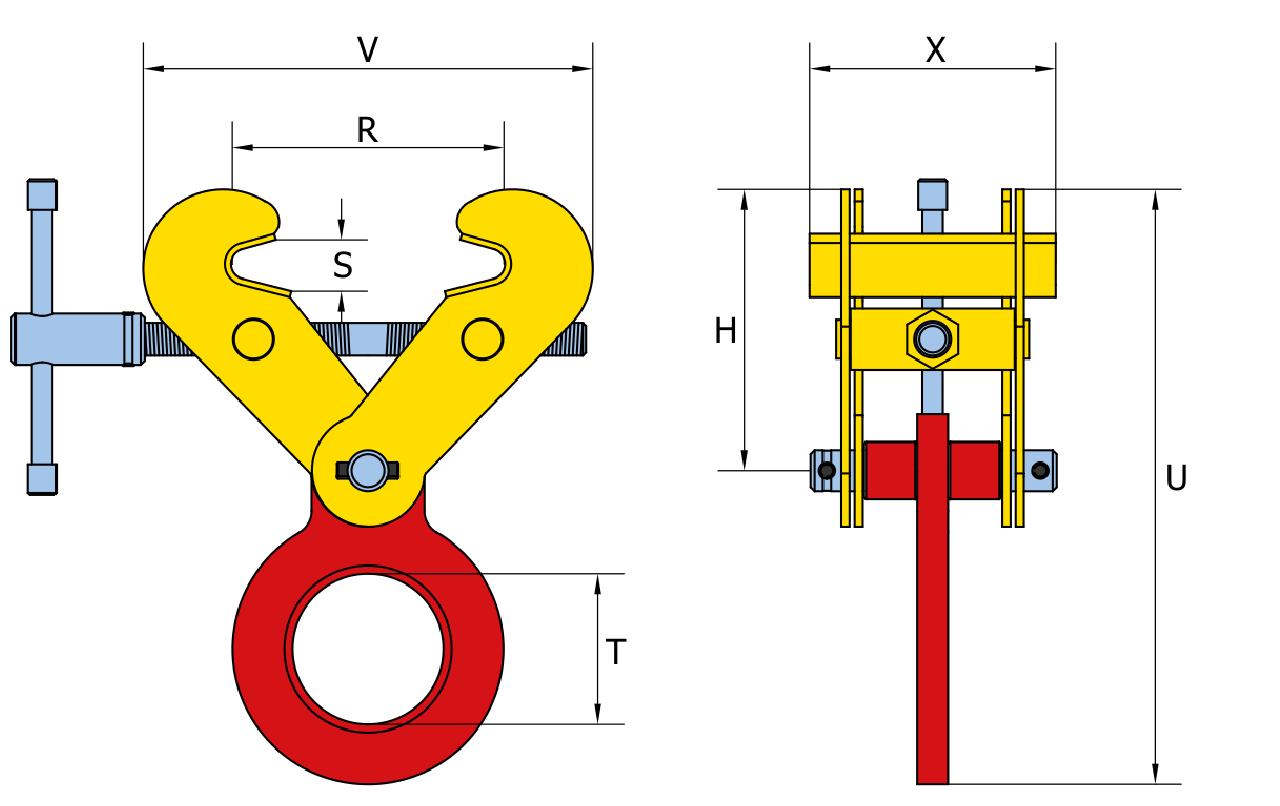

  • FSV standard clamp
  • FSVS clamp with enlarged jaw opening

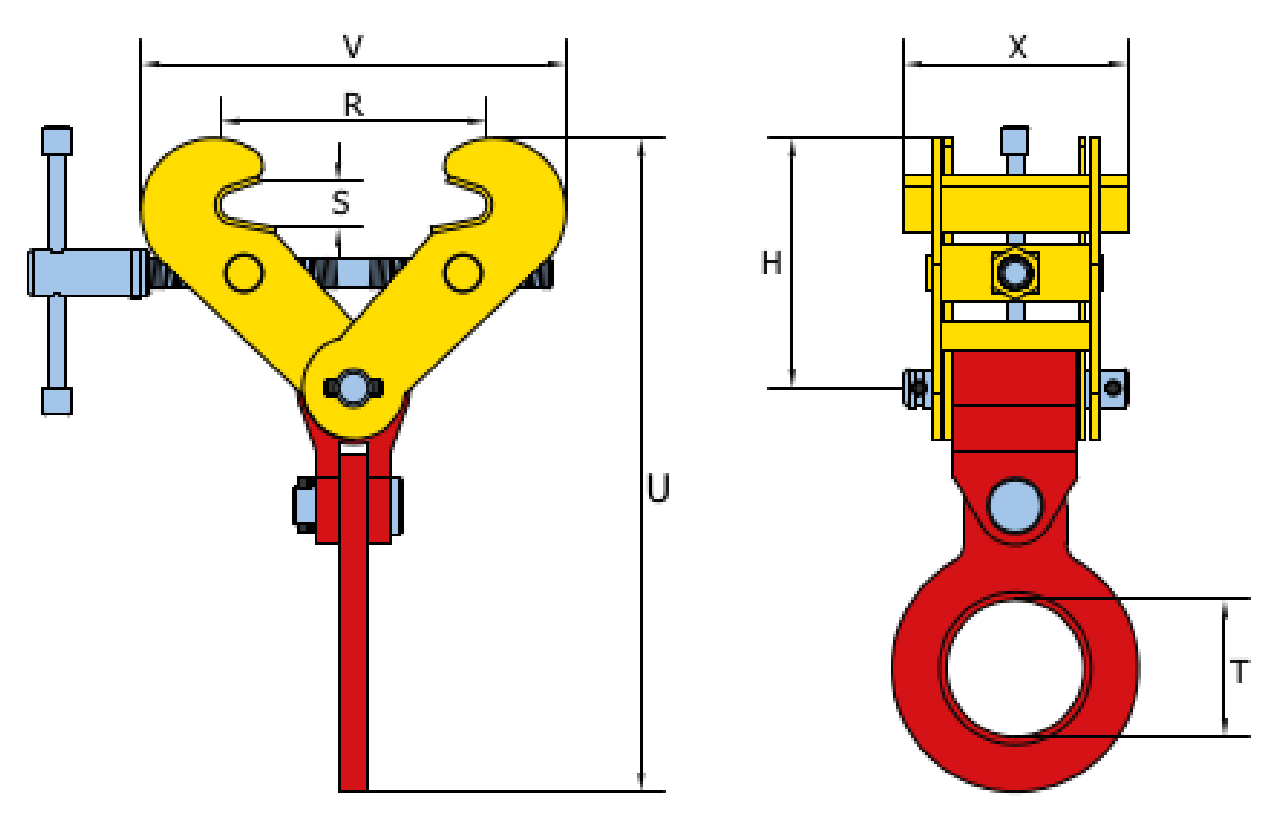

  • FSVSU clamp with enlarged opening, reinforced body and articulated lifting eye.

Features:

  • Equal opening and closing of both jaws for simple and quick assembly
  • Welded jaw plates for better positioning and less damaging of load
  • Lightweight, maintenance-friendly, heavy duty body
  • Marking: According to standard, Type, serial number, WLL, Jaw opening and CE marking.
  • Temperature range: - 40°C to +100°C.
  • Standard: EN 13155
Currently this product cannot be added to an online quote. Please contact us directly for enquires.
