stamped and suitable for both I- and II-leg assemblies and wire
rope slings (similar to DIN 3088- 1989). The master link may also
be used in VWI four-leg assemblies and as an end link.
Its dimensions are similar to DIN 5688‑1 and it is tested at 100 %
of its load capacity.
A particular bonus is the higher resistance to acids and caustics
compared to the standard loading rings G8, G10 and G12.

The AWI Master link is particularly suited for use in water and
wastewater applications. It can also be used in connection with
chemicals and food products; however, restrictions will apply.

  • Material: 1.4404 (AISI 316L), 1.4462 (AISI 318LN).
  • Marking: CE-marked
  • Finish: Pickled and blasted.
  • Safety factor: 4:1
  • Grade: 6
AWI-G6
Select a row from the table below, then click the add to cart button

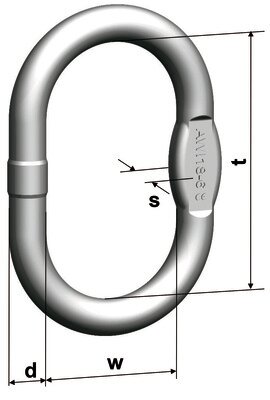

Part Code Code WLL
ton
Usable with sling hooks
up to DIN 15401 No.
For chain Ø 1-leg
mm
For chain Ø 2-leg
mm
Double hook DIN 15402 Nr. d
mm
s
mm
t
mm
w
mm
Weight
kg
11.0450342 AWI 8-6 0,56 0,5 4 4 8 60 35 0,08
11.0450344 AWI 10-6 0,85 1,6 5 5 2,5 10 80 50 0,16
11.0450346 AWI 13-6 1,6 2,5 6/7/8 6 4 13 10 110 60 0,34
11.0450348 AWI 16-6 2,6 2,5 10 7/8 4 16 14 110 60 0,53
11.0450350 AWI 18-6 3,5 5 - 10 6 18 14 135 75 0,83
11.0450352 AWI 22-6 6,3 6 13/16 13 8 23 17 160 90 1,55
11.0450354 AWI 26-6 8,9 8 20 16 10 27 20 180 100 2,46
11.0498994 AWI 45* 12 25 26 - 32 45 340 180 12,82
11.0450356 AWI 32-6 13,2 10 - 20 12 32 26 200 110 3,86
11.0450358 AWI 36-6 14,7 16 - - 20 36 29 260 140 6,22
* AWI 45 is grade 5
