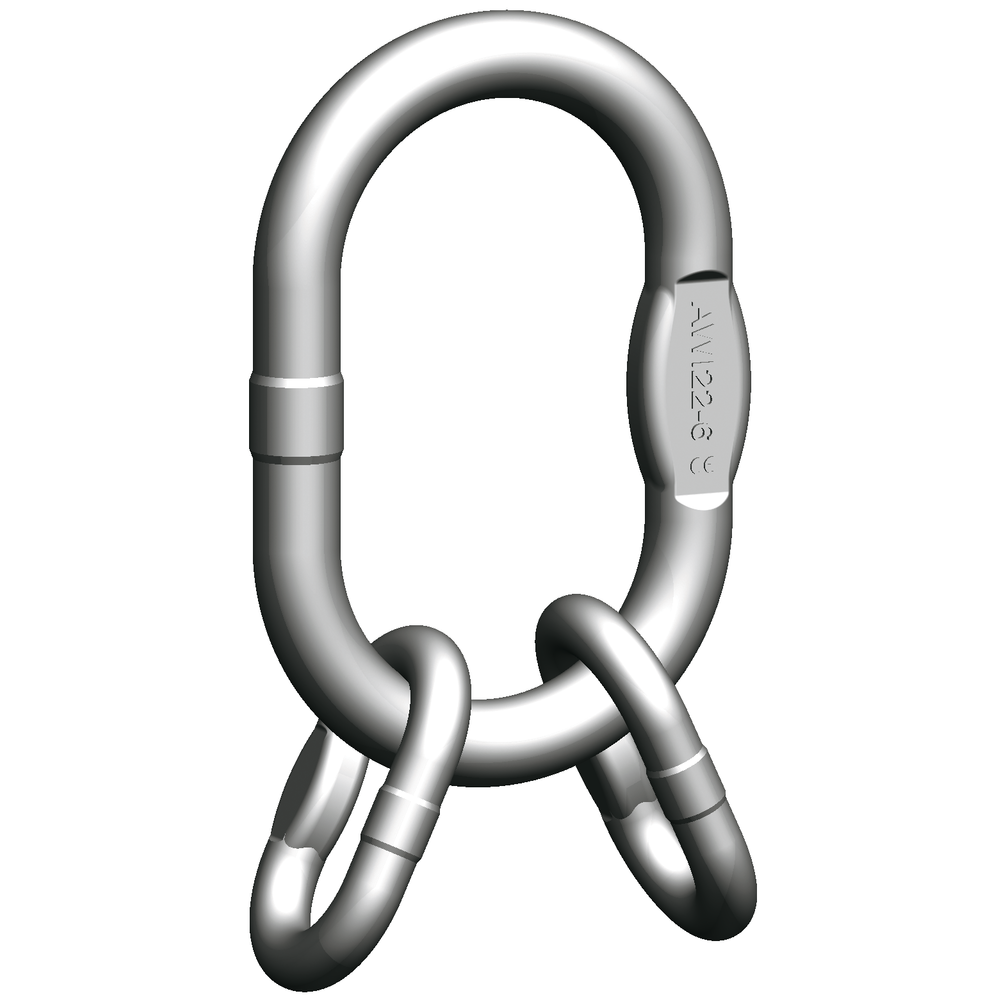

Stainless steel master link for 3- and 4-leg chainslings.
This stainless steel chain sling is electrically welded for a clean finish, stamped and ideally suited for assembling III- and IV-leg chain slings in welded or assembled systems. The dimensions are similar to DIN 5688‑1.
The VWI Master link assembly is tested at 100 % of its load capacity. It is made from high-grade stainless steel with a higher resistance to acids and caustics than the standard four-leg chain slings G8, G10 and G12.
It is ideally suited for use in water and wastewater applications and can also be used in connection with chemicals and food products; however, restrictions will apply.
- Material: 1.4404 (AISI 316L), 1.4462 (AISI 318LN).
- Marking: CE-marked
- Finish: Pickled and blasted.
- Safety factor: 4:1
- Grade: 6
