• Not for lifting

General: Turnbuckle for general use.
Design: Clevis/Clevis.

  • Material: Acid-proof steel AISI316.
1402-R_e_225mm
1400r_m_lom_225mm
Select a row from the table below, then click the add to quote button

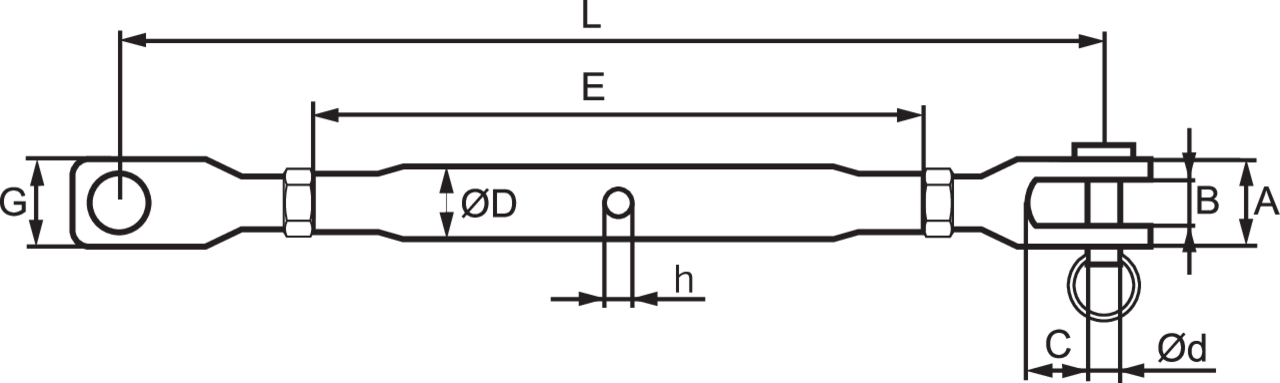

Part Code Code D2
mm
Thread L min-max A
mm
Weight
kg
CAD
11.542005S VR05HK 5 M5 130 - 190 6 5
11.543006S VR06HK 6 M6 150 - 220 8 9
11.544008S VR08HK 8 M8 180 - 255 10 14
11.545010S VR10HK 9 M10 220 - 300 12 24
11.546012S VR12HK 12 M12 270 - 385 14 64
11.548016S VR16HK 16 M16 360 - 500 16 100
11.549020S VR20HK 19 M20 390 - 560 20 198
