• Not for lifting
  • Material: Mild steel, grade 3
  • Finish: Galvanized.
  • Warning: Not for lifting.
Select a row from the table below, then click the add to quote button

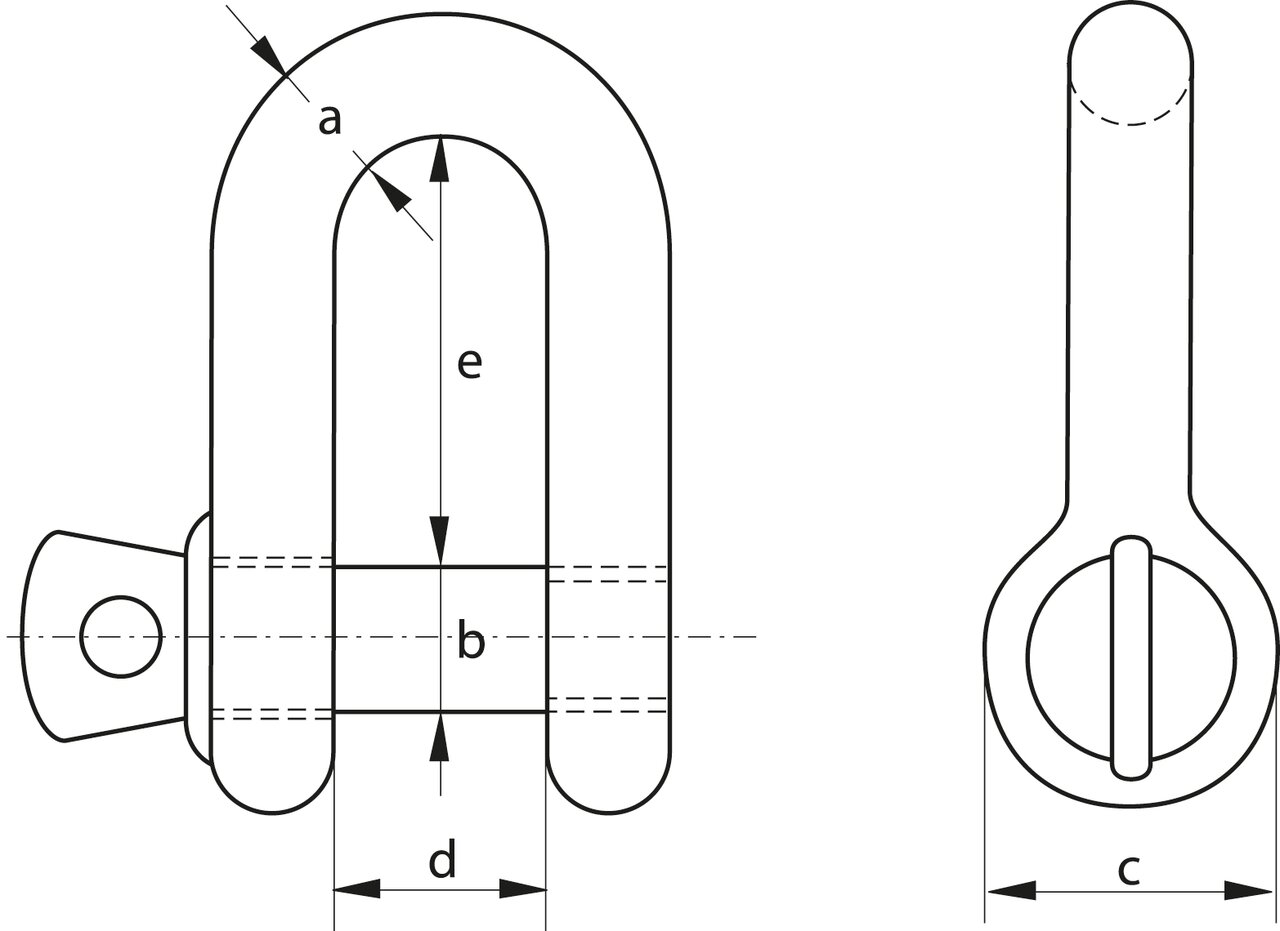

Part Code a
mm
b
mm
c
mm
d
mm
e
mm
Weight
kg/100pc
CAD
11.55MH010105 5 5 10 10 20 1.4
11.55MH010106 6 6 12 12 24 2.2
11.55MH010108 8 8 16 16 32 5.2
11.55MH010110 10 10 20 20 40 11.8
11.55MH010111 11 11 22 22 44 14
11.55MH010112 12 12 24 24 48 20.5
11.55MH010114 14 14 28 28 56 29.4
11.55MH010116 16 16 32 32 64 42.5
11.55MH010119 19 19 38 38 76 72.6
11.55MH010122 22 22 44 44 88 108
11.55MH010125 25 25 50 50 100 185
11.55MH010128 28 28 56 56 112 226
11.55MH010132 32 32 64 64 128 358
11.55MH010138 38 38 76 76 152 602



Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
