Home / Stainless Shackle AISI 316 Bow type

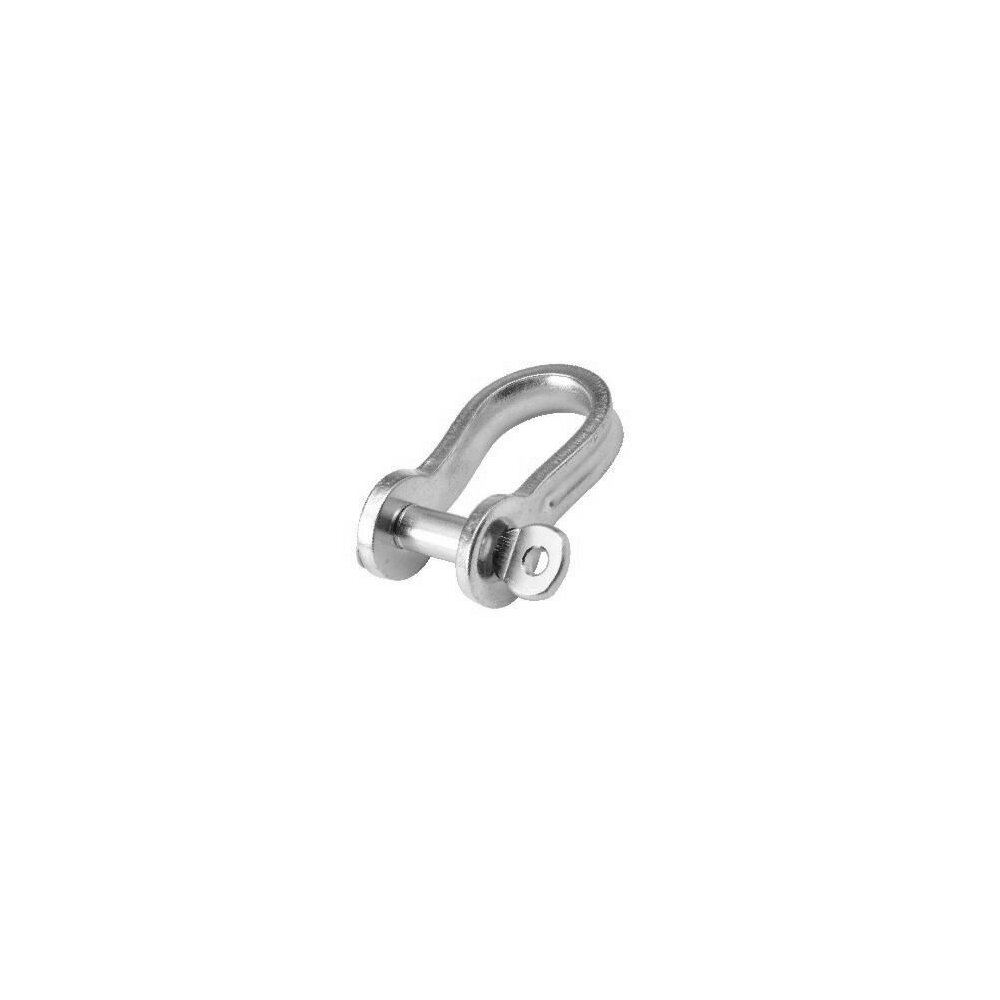

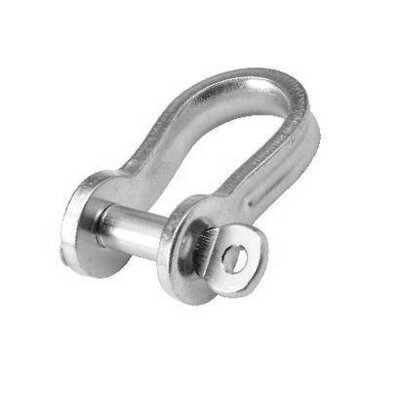

Stainless Shackle AISI 316 Bow type

Blue Wave
  • Not for lifting

Stainless steel plateshackles AISI 316.

  • Material: AISI 316
  • Temperature range: -50°C to +100°C and briefly up to +200°C
  • Warning: Not approved for lifting.
Stainless Shackle AISI 316 Bow type Stainless Shackle AISI 316
Rustfri sjækler AISI 304 3
Select a row from the table below, then click the add to quote button

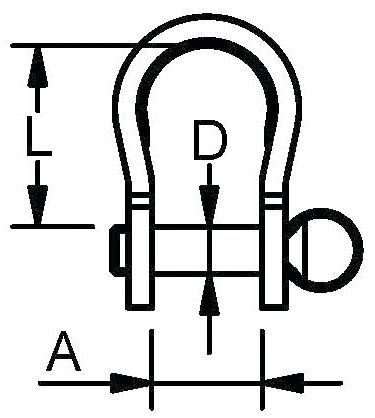

Part Code MBL Packing Qty. A
mm		 D
mm		 L
mm		 Weight
kg/100pc		 CAD
11.55150061 2 50 14 M6 23 2.5
11.55150081 3 50 17 M8 31 4.5
11.55150010 4.8 25 21 M10 40 8.5
11.55150012 7 25 25 M12 50 16

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
