• Not for lifting

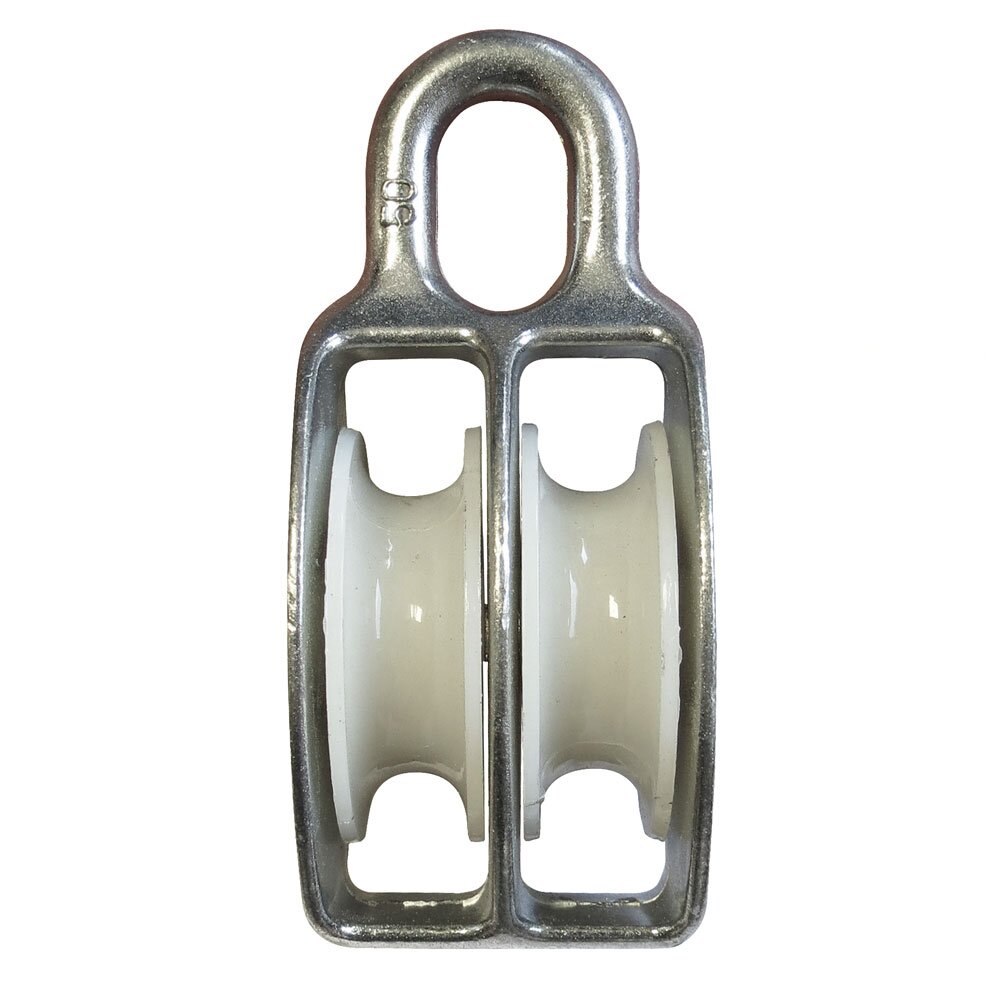

General: Sheave block, double-spindled

  • Material: Spindle made from nylon. Frame cast alloy.
Sheave_double
Sheave_double_measure
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
D2
mm
d1 (mm) L
mm
CAD
10.99MH070815 5 15 10 50
10.99MH070820 6 20 11 60
10.99MH070825 7 25 12 70
10.99MH070830 8 30 13 80
10.99MH070840 9 40 14 93
10.99MH070850 12 50 16 117
