Hand operated worm gear winch WW 2000-7500. Robust and safe lifting and pulling winch, with 2 speeds.
These worm gear hand winch have a transmission that consists of a worm shaft and wheel.

Specifications:
Right angled, easy to grease worm transmission and maintenance free bearings
Cable outlet possible upward, downward and at rear.
Adjustable crank, with ergonomic grip
Load pressure brake with double ratchet system

Optional:
Zinc plated finish (6-8 micron) (EV)
ATEX certified (EX)
Grooved drum as extra option (GD)
Crank force limiter and load limiter
Double (2D) or multitiple cable drum compartments (XD)

  • Marking: According to standard
  • Finish: Standard paint finish (thickness is 60-80 micron in 1 layer) in grey (RAL 7035) and black (RAL 9005) according to DIN 12944, C1M
  • Standard: EN 13157
  • Note: Steel or stainless steel wire ropes must be ordered separately
  • Safety factor: 4:1
Worm gear winch D-FS_pic
E x available

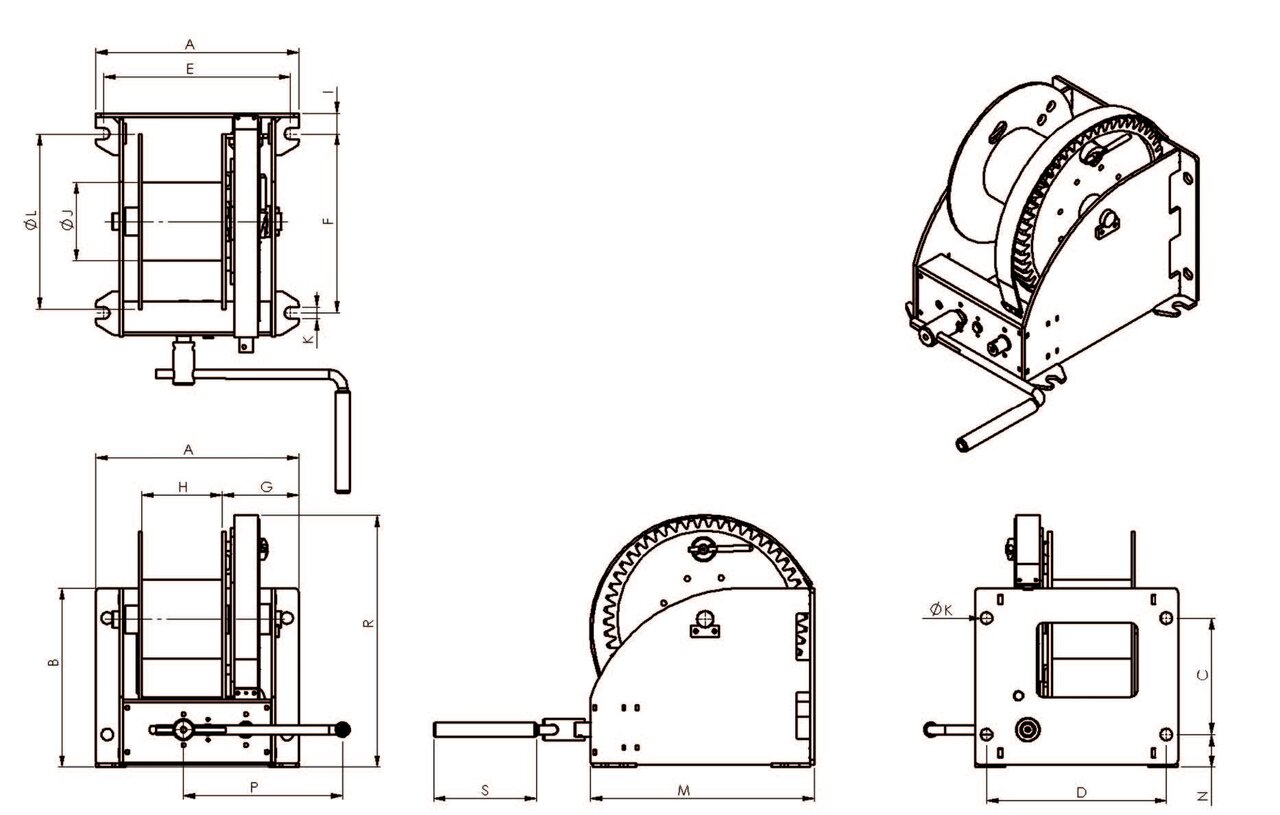

Worm gear winch D-FS_dwg
Select a row from the table below, then click the add to quote button
Part Code WLL Lifting outer layer kg WLL Lifting 1st layer
kg
Type Wire rope Ø
mm
Rope capacity
m
Lift/crank turn
mm
Crank force
N
Weight without wire rope
kg
Length
mm
A
mm
B
mm
C
mm
D
mm
G
mm
H
mm
J
mm
K
mm
L
mm
M
mm
N
mm
O
mm
P
mm
R
mm
S
mm
CAD
16.2777276010 1,038 2,000 WW2000 12 60.5 12 24 60 12 410 310 196 360 137 177 133 25 312 372 57 705 380 434 220
16.2777277010 1,667 3,000 WW3000 14 68 11 31 90 11 436 380 251 386 137 203 168 25 375 480 65 813 380 536 220
16.2777278010 2,282 4,000 WW4000 16 53 11 30 120 11 436 380 251 386 137 203 168 25 375 480 65 813 380 536 220
16.2777279010 3,276 5,000 WW5000 18 43 13 73 150 13 436 467 316 386 137 200 219 25 437 515 75 847 380 618 220

*Recommended wire rope diameter. 1st layer = inner layer
*Length is hoisting length by one rotation, 1st layer (mm)

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
