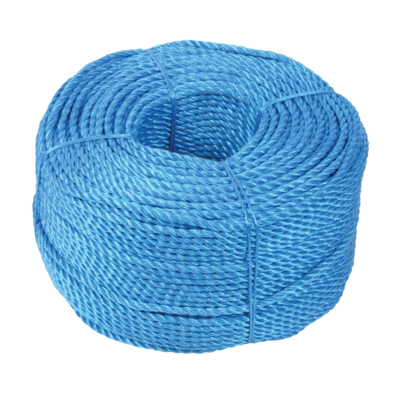

Fibre rope of polypropylene for all different kinds of applications like: tarpaulin- and towing-ropes, lifting slings, ropes for the fishing industry, cargo nets, rope ladders, and more. The structure of the fibre rope makes it non-sliding in knots and splices.

Design: Spliced fibre.

Specific gravity: 0,91 (floats).
Melting point: Approx. 165°C.
Elongation: Approx. 30%.
Strength wet/dry: 100%
Shock Absorption: Very Good
Water Absorption: None
Abrasion Resistance: Good

  • Material:  Polypropylene, resistant to rot, most acids and alkalies. The fibre is UV-stabilized against sunlight.
  • Marking: According to standard
  • Finish: Blue.
  • Standard: EN ISO 1346
pp-film
Select a row from the table below, then click the add to cart button
Part Code Diameter
mm
Min. breaking force
kN
Length
m
Colour Mass
g/m
Rope ends Weight
kg/220m
CAD
12.03PPE030BEC22 3 1.18 220 Blue 3,5 Plain ends 0.8
12.03PPE030BESPL 3 1.18 1,000 Blue 3,5 Plain ends 0.8
12.03PPE040BEC22 4 2.7 220 Blue 8 Plain ends 1.8
12.03PPE040BESPL 4 2.7 1,000 Blue 8 Plain ends 1.8
12.03PPE050BEC22 5 3.9 220 Blue 12 Plain ends 2.6
12.03PPE060BESPL 6 5.4 500 Blue 17 Plain ends 2.6
12.03PPE060BEC22 6 5.4 220 Blue 17 Plain ends 3.7
12.03PPE080BESPL 8 9.4 311 Blue 30 Plain ends 3.7
12.03PPE080BEC22 8 9.4 220 Blue 30 Plain ends 6.6
12.03PPE100BESPL 10 14 208 Blue 45 Plain ends 6.6
12.03PPE100BEC22 10 14 220 Blue 45 Plain ends 9.9
12.03PPE120BESPL 12 19.9 144 Blue 65 Plain ends 9.9
12.03PPE120BEC22 12 19.9 220 Blue 65 Plain ends 14
12.03PPE140BEC22 14 27.4 220 Blue 90 Plain ends 20
12.03PPE140BESPL 14 27.4 Blue 90 Plain ends 20
12.03PPE160BEC22 16 34.3 220 Blue 115 Plain ends 25
12.03PPE160BESPL 16 34.3 Blue 115 Plain ends 25
12.03PPE180BEC22 18 43.6 220 Blue 148 Plain ends 33
12.03PPE200BEC22 20 52.7 220 Blue 180 Plain ends 40
12.03PPE220BEC22 22 63.7 220 Blue 220 Plain ends 48
12.03PPE240BEC22 24 74.5 220 Blue 260 Plain ends 57
12.03PPE260BEC22 26 87.8 220 Blue 305 Plain ends 67
12.03PPE280BEC22 28 99.1 220 Blue 355 Plain ends 78
12.03PPE300BEC22 30 113 220 Blue 405 Plain ends 89
12.03PPE320BEC22 32 126 220 Blue 460 Plain ends 101
12.03PPE360BEC22 36 158 220 Blue 585 Plain ends 129
12.03PPE340BEC22 40 190 220 Blue 720 Plain ends 158
