General: A range of electric self braking worm gear winches, developed for heavy duty pulling and traversing duties up to 2800 kg. Due to self braking worm gears the winches are suitable for pulling up an incline. A brake is available as an option for accurate positioning or repetitive lifting applications up to 2000 kg.


- IP 54 aluminium non braked motor 400 VAC / 3 phase / 50 Hz.
- Steel drum (not grooved) with cable fixing point at flange.

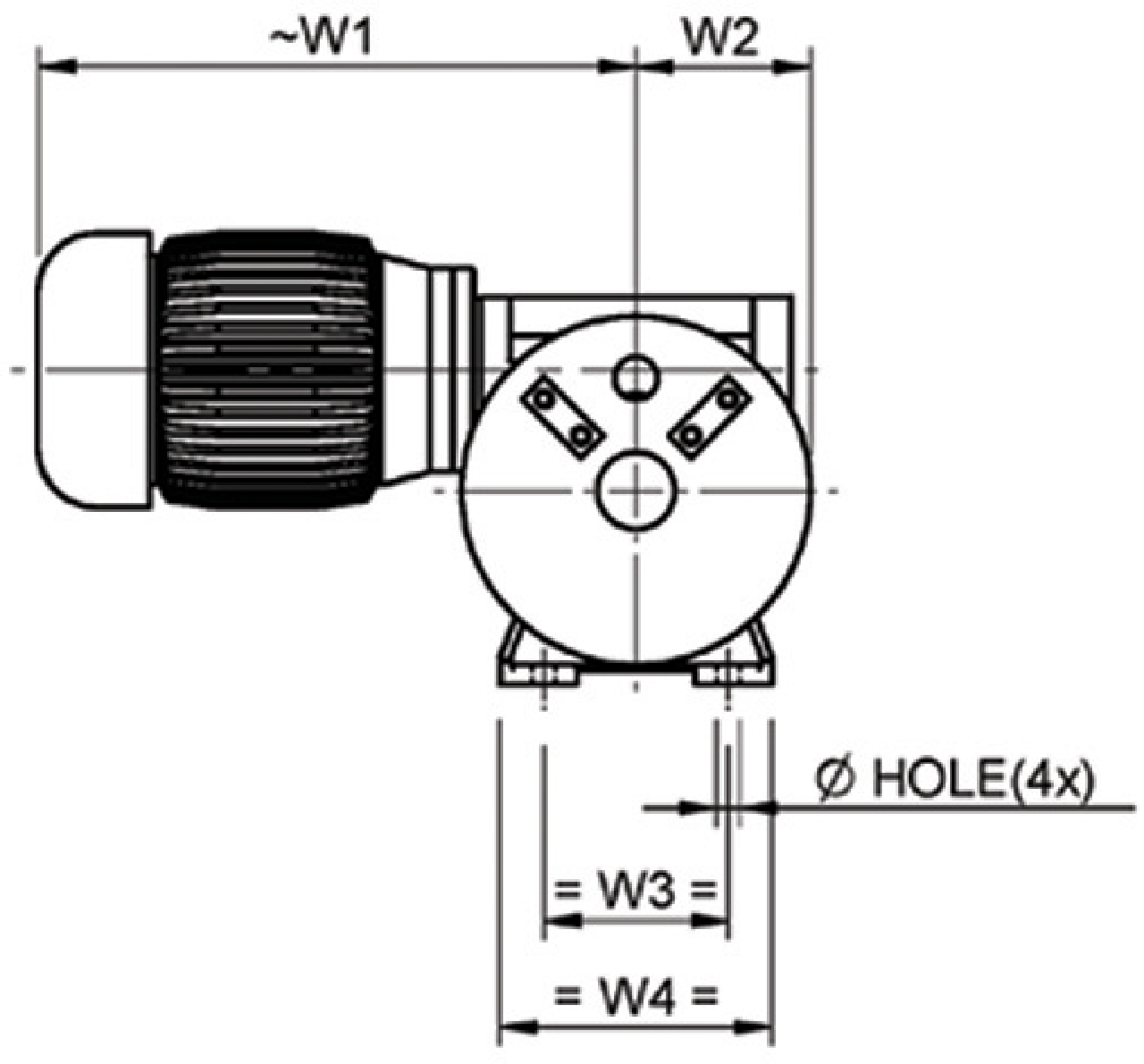

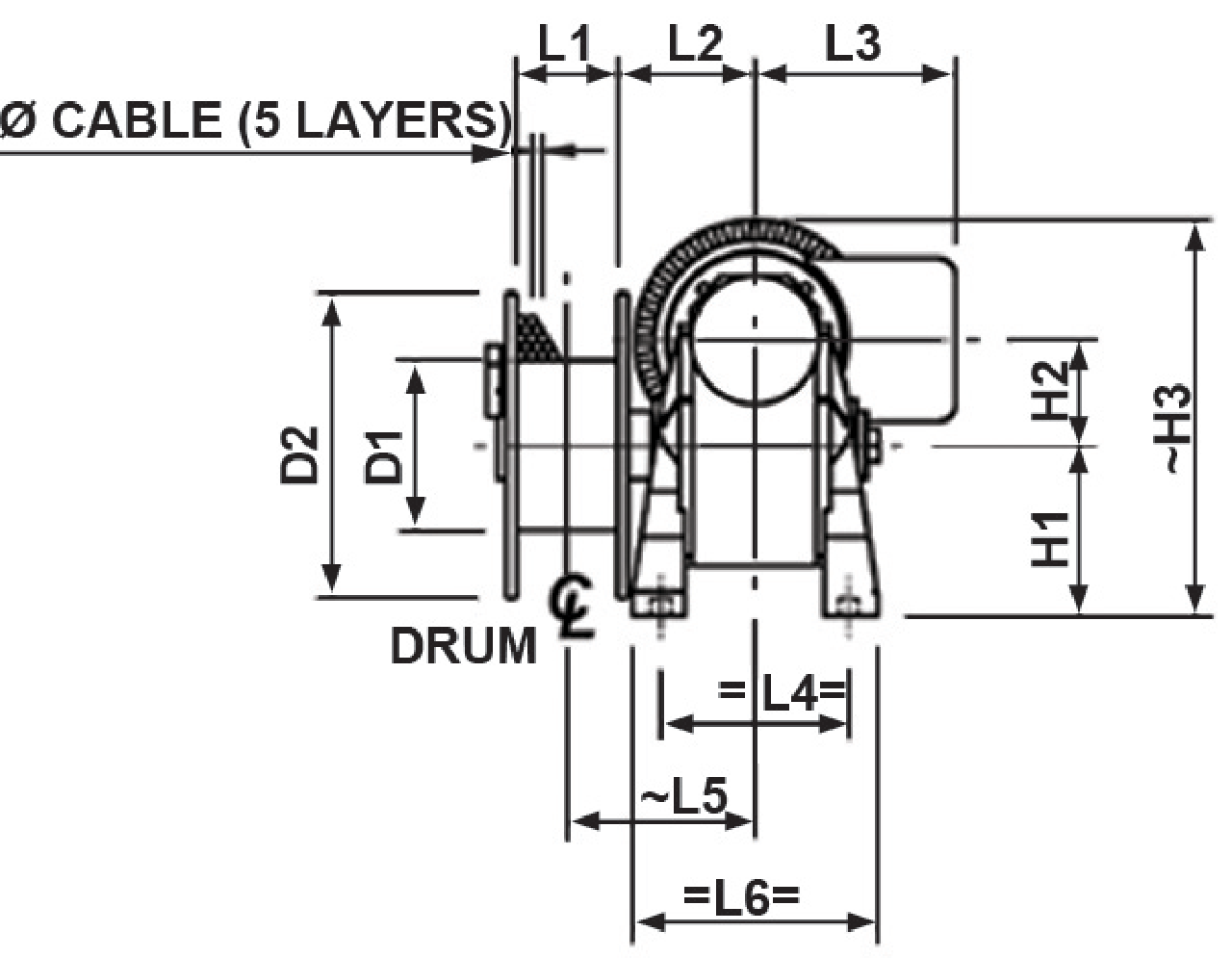

- Single drum support (MC 250, MC 500).

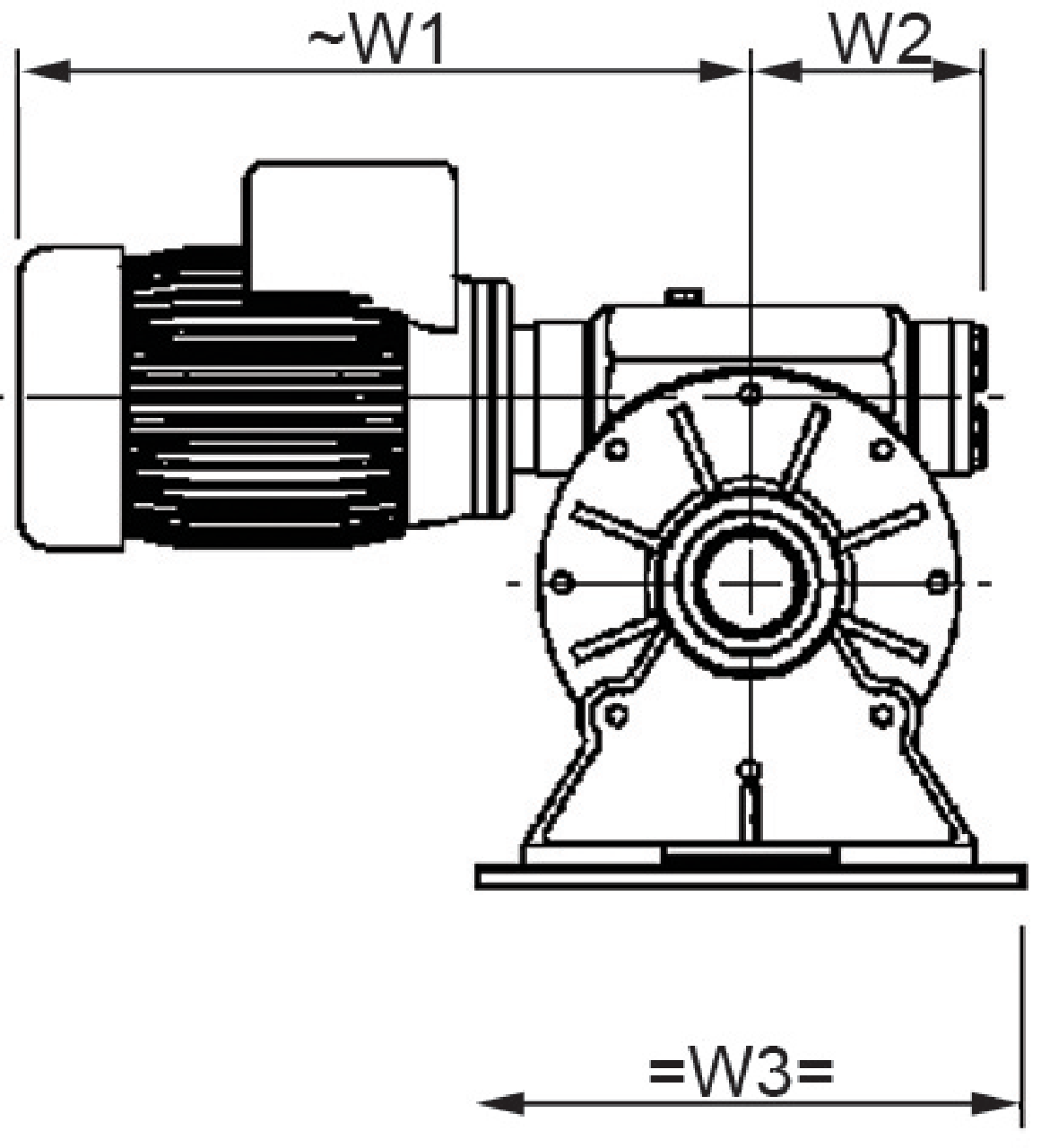

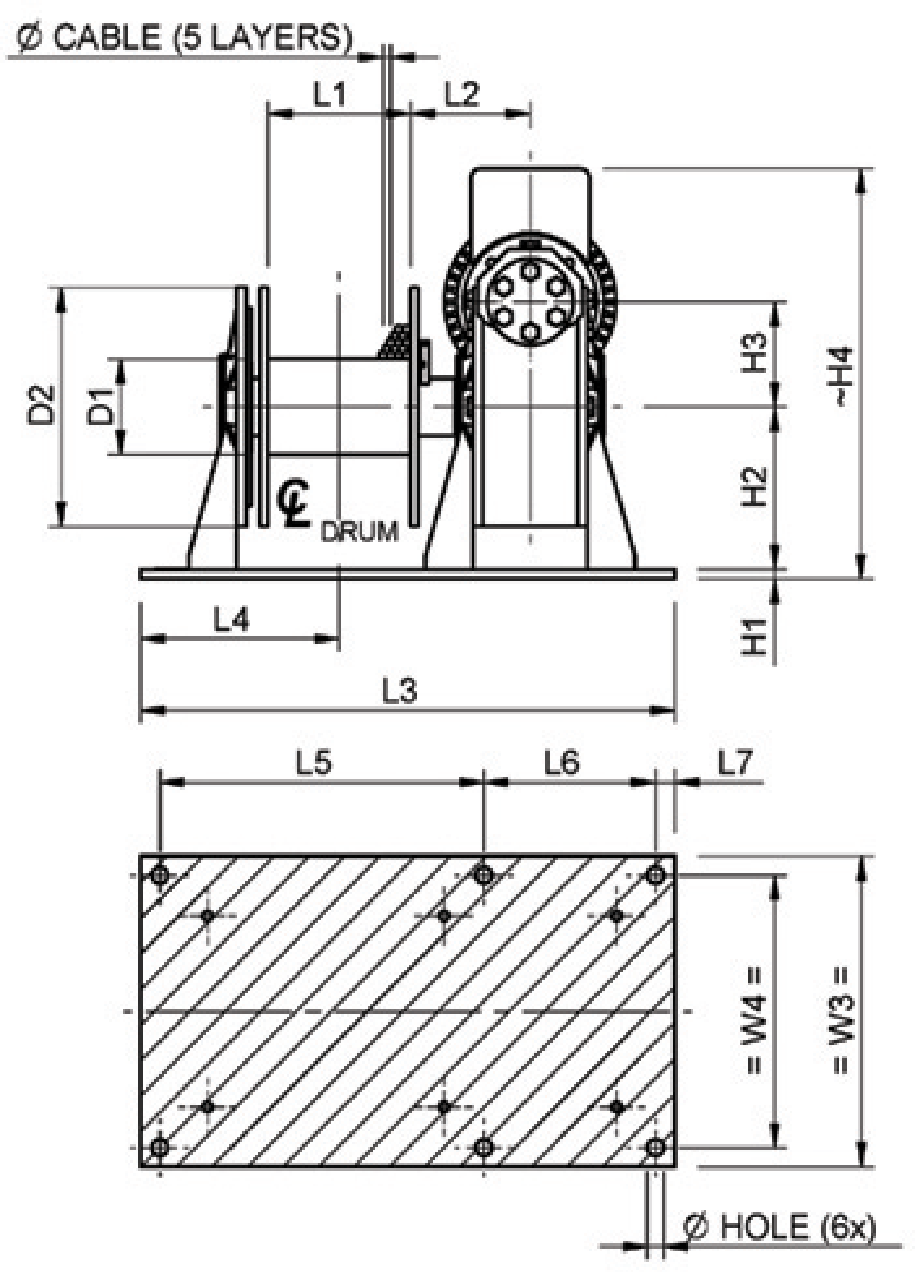

- Two drum supports (all other models).
- Double layer 2 component conservation, colour RAL 5010.

  • Features: - Self braking worm gear transmission.
MCW EMCE
MCW EMCE streg 1 MCW EMCE streg 2 MCW EMCE streg 3 MCW EMCE streg 4
Select a row from the table below, then click the add to quote button
Art No Type Weight without rope (kg) WLL Pulling 1st layer kg WLL Pulling 5th layer kg WLL Lifting 1stlayer kg WLL Lifting 5th layer kg Recommanded rope dia. (mm) Speed 1st layer m/min Drum capacity 1st layer (m) Drum capacity 5th layer (m) Motor power 400 V kW S2
4005051 MCW 250 22 250 170 200 135 6 6 2 19 0,75
4005052 MCW 500 35 500 340 400 275 6 6 2 19 1,1
4005053 MCW 750 55 750 490 600 390 7 6 6 42 1,5
4005054 MCW 1200 92 1,200 750 960 600 8 5 5 38 2,2
4005055 MCW 1700 140 1,700 1,055 1,300 805 10 6 7 50 4,0
4005056 MCW 2200 180 2,200 1,365 1,700 1,055 12 7 9 63 5,5
4005057 MCW 2800 254 2,800 1,745 2,000 1,245 13 8 11 76 7,5
4005058 MCW 250 SPH 22 250 170 200 135 6 5 2 19 0,75
4005059 MCW 500 SPH 35 500 340 400 275 6 5 2 19 1,5
4005060 MCW 750 SPH 55 750 460 550 360 7 5 6 42 1,8
